Self Aligning Ball Bearings 2202 ETN9

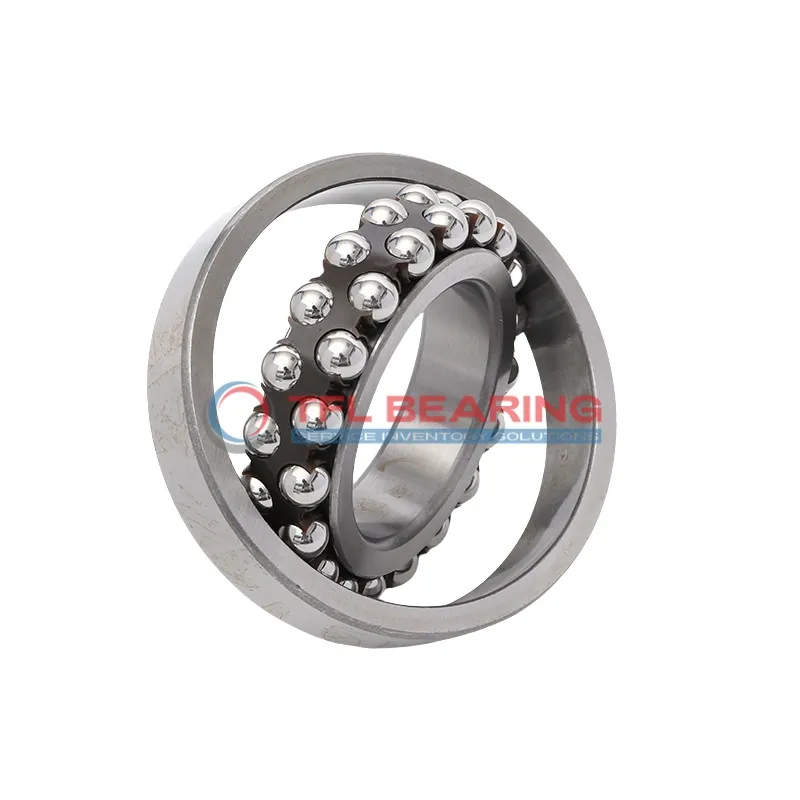

Self Aligning Ball Bearings 2202 ETN9

The 2202 ETN9 is a self-aligning ball bearing with a 15mm bore and 35mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 1960 lbf and spins smoothly at speeds up to 26,000 RPM.

Its double-row design and open construction allow for easy alignment and maintenance, while the nylon cage reduces friction for quieter operation. The bearing works well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or conveyor systems where misalignment might occur.

Weighing just 0.06kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2202 ETN9
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 35 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 14 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 20.86 mm
  • Internal Diameter On Outer Ring 29.5 mm
  • Chamfer Dimension 0.6 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 1960 lbf
  • Static Radial Load 459 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 26000 rpm
  • Weight 0.06 kg
  • Price（$） 13.7
Self Aligning Ball Bearings 2202 ETN9 dimension drawing
Download DWG Download PDF

Features

Why Choose 2202 ETN9 Bearing for Precision Tasks?

2202 ETN9 Bearing features a double-row design with chrome steel rings and balls, ensuring precise radial load handling.
Its dynamic radial load capacity of 1960 lbf makes it suitable for applications requiring accuracy and durability.

The nylon cage helps maintain smooth operation, reducing friction and noise during high-speed rotations.
With a maximum speed of 26,000 rpm, it delivers reliable performance in demanding conditions.

2202 ETN9 Bearing operates efficiently within a temperature range of -30° to 110°C, adapting to various environments.
Its compact size (15 mm×35 mm×14 mm) allows for easy integration into space-constrained assemblies.

Application

Common Applications of 2202 ETN9 Bearing
2202 ETN9 Bearing is widely used in industrial machinery, especially in conveyor systems and pumps, where its self-aligning feature compensates for minor misalignments. The double-row design ensures stable performance even under varying radial loads.

In automotive applications, 2202 ETN9 Bearing can be found in gearboxes and wheel hubs, providing smooth rotation and reducing friction. Its nylon cage offers quiet operation, making it suitable for passenger vehicles.

For automation equipment, 2202 ETN9 Bearing supports robotic arms and assembly lines, where precision and reliability are key. The lubricated design helps maintain performance over extended periods of use.

In household appliances like washing machines, 2202 ETN9 Bearing ensures quiet and efficient operation. Its chrome steel construction provides durability, even with frequent use.
