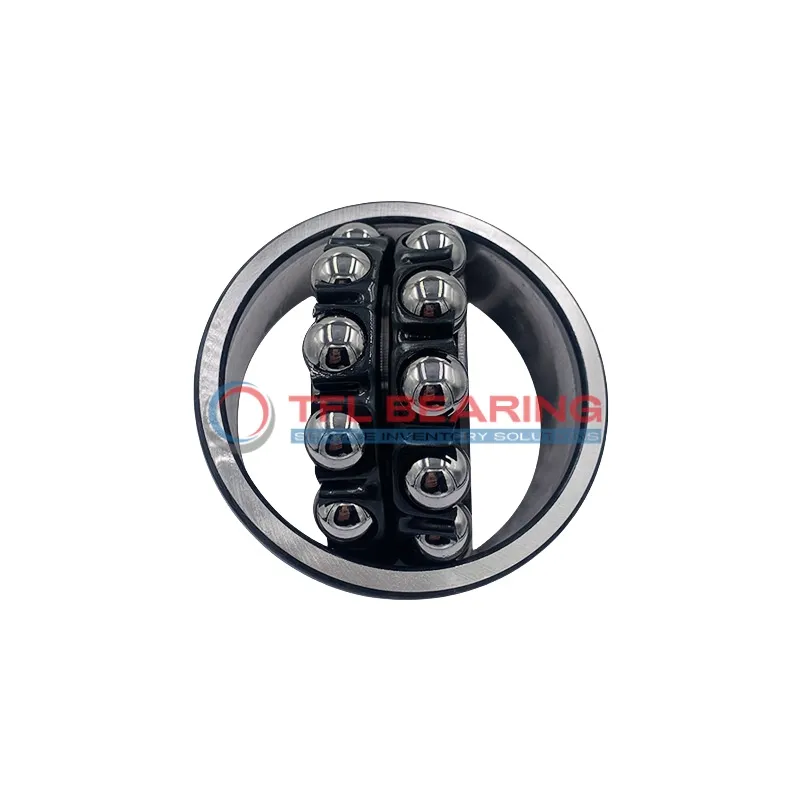

Self Aligning Ball Bearings 2200J

Self Aligning Ball Bearings 2200J

The 2200J is a self-aligning ball bearing with a 10mm bore and 30mm outer diameter, compact at just 14mm wide. Made from chrome steel, it handles radial loads up to 1244 lbf and spins smoothly at speeds up to 17000 RPM.

Its double-row design and sealed construction help it stay aligned and protected from dust, reducing maintenance needs. The steel cage ensures durability, while the lubricated setup keeps it running quietly.

This bearing works well in temperatures from -30°C to 110°C, making it suitable for various environments. It’s interchangeable with SKF bearings, offering a reliable replacement option.

Weighing only 0.048kg, it’s lightweight yet sturdy. Ideal for applications like electric motors or conveyors where alignment and smooth operation are key. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2200J
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 30 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 14 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 14.6 mm
  • Internal Diameter On Outer Ring 24.72 mm
  • Chamfer Dimension 0.6 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 1244 lbf
  • Static Radial Load 266 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 17000 rpm
  • Weight 0.048 kg
  • Price（$） 24.61
Self Aligning Ball Bearings 2200J dimension drawing
Download DWG Download PDF

Features

How Does 2200J Bearing Reduce Friction?

2200J Bearing features a double-row design with chrome steel balls, ensuring smooth radial load distribution.
Its sealed construction keeps lubrication intact, reducing friction and wear during operation.

The steel cage maintains proper ball alignment, enhancing efficiency and longevity.
With a maximum speed of 17,000 rpm, it delivers reliable performance in various applications.

2200J Bearing operates within a temperature range of -30° to 110°C, adapting to different working conditions.
Its dynamic radial load capacity of 1244 lbf makes it suitable for demanding tasks.

Application

Industrial Uses of 2200J Bearing
2200J Bearing is commonly used in industrial fans and blowers, where its self-aligning feature compensates for minor misalignments. The sealed design helps keep contaminants out, extending service life in dusty environments.

Where Is 2200J Bearing Used?
In automotive applications, 2200J Bearing fits well in steering columns and auxiliary drives, thanks to its radial load capacity. The double-row construction provides stability even under varying operational conditions.

Built for Heavy-Duty Use: 2200J Bearing
For conveyor systems, 2200J Bearing offers reliable performance with its chrome steel rings and steel cage. Its lubricated design ensures smooth operation over long periods without frequent maintenance.

Medical vs Industrial: Where 2200J Bearing Excels
In medical devices like small pumps, 2200J Bearing’s compact size and sealed construction make it a hygienic choice. Meanwhile, in industrial settings, its durability shines in machinery with continuous operation demands.

Perfect Fit for Automation: 2200J Bearing
2200J Bearing works well in robotic arms and automated assembly lines, where precision and low maintenance are key. The metric sizing ensures compatibility with a wide range of equipment designs.
