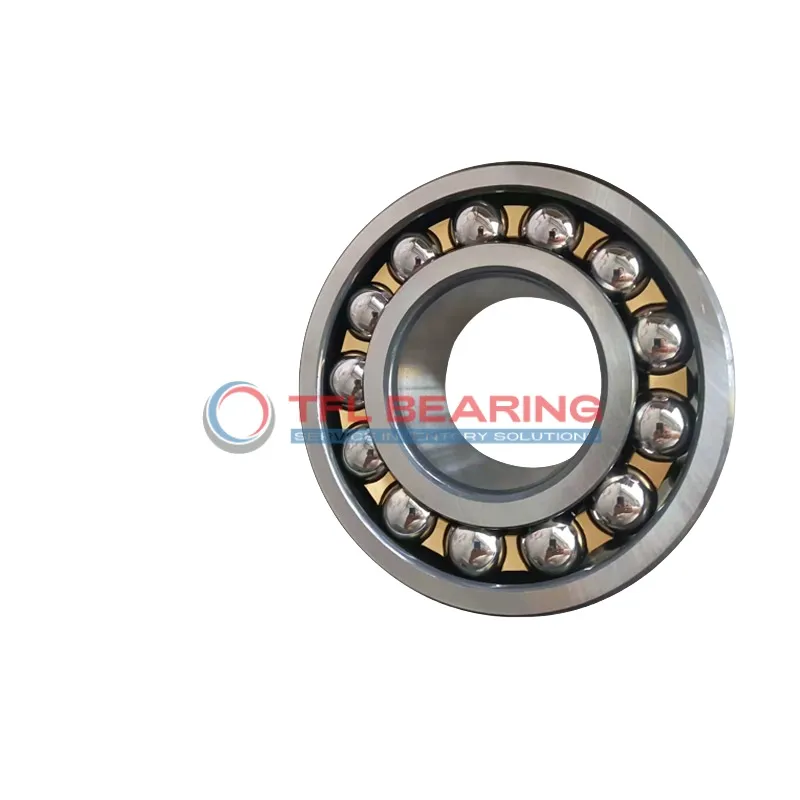

Self Aligning Ball Bearings 1320 KM/C3

Brand: TFL Bearing Interchangeable: SKF 1320 KM/C3 100 mm × 215 mm × 47 mm Metric Open
Part number: 1320 KM/C3
Self Aligning Ball Bearings 1320 KM/C3
In Stock
US$817.41 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia100 mm
Bore Dia Tolerance-0.02mm to 0
Outer Dia215 mm
Outer Dia Tolerance-0.03mm to 0
Width47 mm
Width Tolerance-0.2mm to 0
External Diameter On Inner Ring136 mm
Internal Diameter On Outer Ring181.9 mm
Chamfer Dimension3 mm
Performance
Dynamic Radial Load32,175 lbf
Static Radial Load12,825 lbf
Temperature Range-30° to 110 °C
Max Speed4,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceC3
Weight8.7 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 1320 KM/C3 is a self-aligning ball bearing with a 100mm tapered bore and 215mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 32175 lbf and operates smoothly at speeds up to 4000 RPM.

Its double-row design and brass cage provide excellent alignment and durability, even under heavy loads. The open seal allows for easy lubrication, extending its lifespan.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. Suitable for industrial machinery like conveyors or fans, where misalignment might occur.

Weighing 8.7kg, it’s built for robust performance in temperatures from -30°C to 110°C. Compliant with RoHS and REACH standards for safe and reliable use.

Features

How Does 1320 KM/C3 Bearing Reduce Friction?

1320 KM/C3 Bearing features a double-row design with chrome steel balls and rings, ensuring smooth radial load distribution.
Its brass cage maintains proper ball alignment, reducing friction and wear during operation.

The tapered bore design of 1320 KM/C3 Bearing allows for easy installation and secure fit on shafts.
With a dynamic radial load capacity of 32,175 lbf, it handles heavy loads efficiently.

1320 KM/C3 Bearing operates smoothly at speeds up to 4,000 rpm while maintaining low friction.
Its C3 radial clearance provides optimal performance in various temperature conditions.

The open design of 1320 KM/C3 Bearing simplifies lubrication, ensuring consistent performance over time.
Weighing 8.7 kg, it offers a robust solution for industrial applications requiring reliability.

Application

Industrial Uses of 1320 KM/C3 Bearing
The 1320 KM/C3 Bearing is commonly used in heavy machinery like conveyors and mixers, where its self-aligning feature compensates for minor misalignments. Its double-row design provides excellent radial load capacity, making it suitable for demanding industrial environments.

Where Is 1320 KM/C3 Bearing Used?
You’ll often find the 1320 KM/C3 Bearing in automotive applications such as truck wheel hubs, where its tapered bore ensures a secure fit. The brass cage adds durability, making it reliable for long-term use in high-vibration settings.

Built for Heavy-Duty Use: 1320 KM/C3 Bearing
In construction equipment like cranes, the 1320 KM/C3 Bearing handles heavy radial loads with ease. Its chrome steel construction and C3 clearance allow for smooth operation even under fluctuating temperatures.

Automotive vs Industrial: Applications of 1320 KM/C3 Bearing
While the 1320 KM/C3 Bearing excels in industrial gearboxes, it’s also a solid choice for agricultural machinery like tractors. The open design simplifies lubrication, ensuring consistent performance in dusty or wet conditions.
