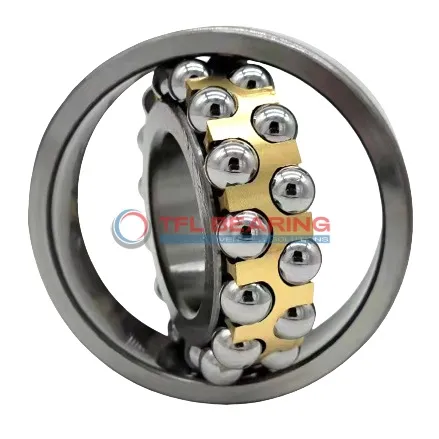

Self Aligning Ball Bearings 1318 M C/3

Brand: TFL Bearing Interchangeable: SKF 1318 M C/3 90 mm × 190 mm × 43 mm Metric Open
Part number: 1318 M C/3
Self Aligning Ball Bearings 1318 M C/3
In Stock
US$332.58 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia90 mm
Bore Dia Tolerance-0.02mm to 0
Outer Dia190 mm
Outer Dia Tolerance-0.03mm to 0
Width43 mm
Width Tolerance-0.2mm to 0
External Diameter On Inner Ring122.8 mm
Internal Diameter On Outer Ring162.1 mm
Chamfer Dimension3 mm
Performance
Dynamic Radial Load26,325 lbf
Static Radial Load9,900 lbf
Temperature Range-30° to 110 °C
Max Speed4,500 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeCylindrical
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceCN
Weight5.8 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 1318 M C/3 is a self-aligning ball bearing with a 90mm bore and 190mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 26325 lbf and operates smoothly at speeds up to 4500 RPM.

Its double-row design and brass cage provide reliable performance, while the open seal allows for easy lubrication. The bearing works efficiently in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like conveyor systems or agricultural machinery where alignment flexibility is needed.

Weighing 5.8kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Features

Why Choose 1318 M C/3 Bearing for Precision Tasks?

1318 M C/3 Bearing features a double-row design, providing excellent radial load capacity up to 26325 lbf.
Its chrome steel rings and balls ensure durability and smooth operation in various applications.

The brass cage maintains ball alignment, reducing friction and extending the bearing’s service life.
With a maximum speed of 4,500 rpm, it offers reliable performance for precision tasks.

1318 M C/3 Bearing operates efficiently within a temperature range of -30° to 110 °C.
Its open seal design allows for easy lubrication, ensuring consistent performance over time.

Application

Industrial Uses of 1318 M C/3 Bearing
1318 M C/3 Bearing is commonly used in heavy machinery, such as conveyor systems and large fans, where its double-row design helps manage misalignment. The brass cage adds durability, making it suitable for continuous operation.

What Makes 1318 M C/3 Bearing a Preferred Choice?
In automotive applications, 1318 M C/3 Bearing supports components like wheel hubs and transmissions, thanks to its high radial load capacity. Its metric sizing ensures compatibility with a variety of vehicle designs.

Built for Heavy-Duty Use: 1318 M C/3 Bearing
For industrial automation, 1318 M C/3 Bearing is ideal for robotic arms and assembly lines, where precision and reliability are key. The chrome steel construction ensures long-lasting performance even under stress.

Medical vs Industrial: Where 1318 M C/3 Bearing Excels
While 1318 M C/3 Bearing is robust enough for industrial equipment, its precision also makes it useful in medical imaging devices. The open design allows for easy lubrication, maintaining smooth operation.
