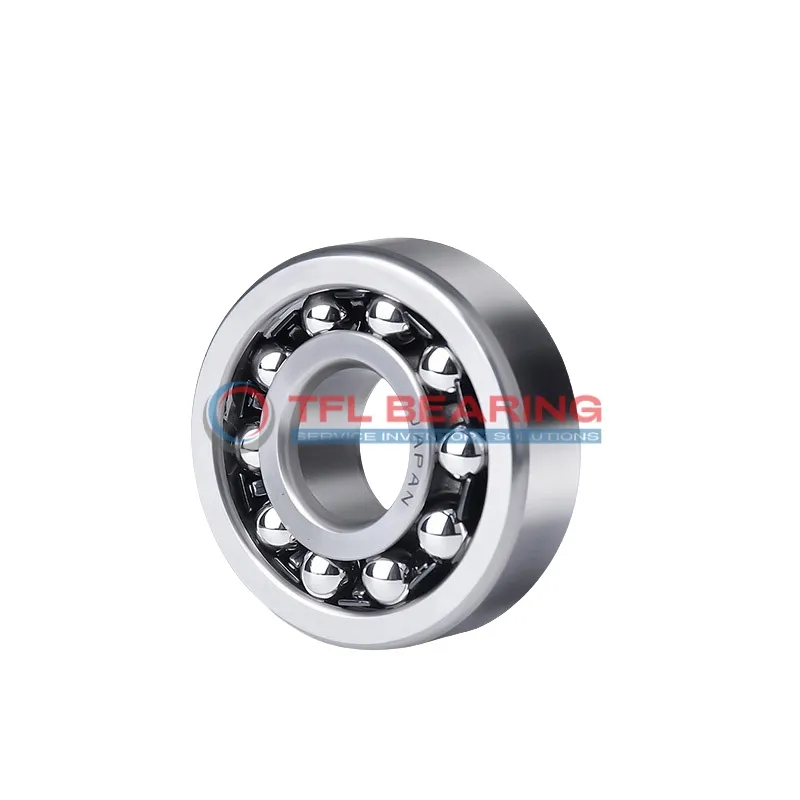

Self Aligning Ball Bearings 1317-K C/4

Brand: TFL Bearing Interchangeable: SKF 1317-K C/4 85 mm × 180 mm × 41 mm Metric Open
Part number: 1317-K C/4
Self Aligning Ball Bearings 1317-K C/4
In Stock
US$219.14 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia85 mm
Bore Dia Tolerance-0.02mm to 0
Outer Dia180 mm
Outer Dia Tolerance-0.025mm to 0
Width41 mm
Width Tolerance-0.2mm to 0
External Diameter On Inner Ring117.6 mm
Internal Diameter On Outer Ring152.8 mm
Chamfer Dimension3 mm
Performance
Dynamic Radial Load21,938 lbf
Static Radial Load8,550 lbf
Temperature Range-30° to 110 °C
Max Speed4,800 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceCN
Weight5 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialStainless Steel
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 1317-K C/4 is a self-aligning ball bearing with an 85mm tapered bore and 180mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 21938 lbf and operates smoothly at speeds up to 4800 RPM.

Its double-row design allows for slight misalignment, reducing wear and tear. The open seal type makes lubrication straightforward, while the stainless steel cage enhances durability.

This bearing works well in temperatures from -30°C to 110°C and is interchangeable with SKF models. Ideal for heavy machinery or conveyor systems where alignment flexibility is needed.

Weighing 5kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe industrial use.

Features

Why Choose 1317-K C/4 Bearing for Precision Tasks?

1317-K C/4 Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load rating of 21938 lbf makes it suitable for demanding industrial applications.
The stainless steel cage maintains ball alignment, reducing friction and wear.
With a maximum speed of 4,800 rpm, it offers reliable performance in various conditions.

Application

Industrial Uses of 1317-K C/4 Bearing
1317-K C/4 Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its self-aligning feature compensates for shaft misalignment. The double-row design ensures stable performance under radial loads, making it suitable for demanding environments.

In automotive applications, 1317-K C/4 Bearing supports components such as gearboxes and drive shafts, providing reliable operation even under varying load conditions. Its taper bore design allows for secure mounting, enhancing overall system durability.

For automation equipment, 1317-K C/4 Bearing’s chrome steel construction ensures long service life in robotic arms and assembly lines. The open seal type facilitates easy lubrication, maintaining smooth operation over time.

Where Is 1317-K C/4 Bearing Used?
You’ll often find 1317-K C/4 Bearing in construction equipment like cranes and excavators, where its ability to handle misalignment is crucial. The stainless steel cage adds extra resistance to wear in dusty or humid conditions.

In household appliances, 1317-K C/4 Bearing works well in washing machines and dryers, offering quiet and efficient performance. Its metric sizing ensures compatibility with a wide range of European and Asian models.

Built for Heavy-Duty Use: 1317-K C/4 Bearing
1317-K C/4 Bearing excels in mining equipment, where its robust design withstands high radial loads and harsh conditions. The lubricated construction helps reduce friction, extending bearing life even in continuous operation.

For agricultural machinery, 1317-K C/4 Bearing provides reliable performance in tractors and harvesters. Its self-aligning capability is particularly useful in uneven terrain, ensuring smooth operation.

Light-Duty vs Heavy-Duty: Best Uses for 1317-K C/4 Bearing
In light-duty applications like small pumps, 1317-K C/4 Bearing offers precise rotation with minimal maintenance. The chrome steel balls ensure smooth movement, even at moderate speeds.

For heavy-duty industrial presses, 1317-K C/4 Bearing’s high dynamic load capacity makes it a dependable choice. The taper bore design ensures a tight fit, preventing slippage under intense pressure.
