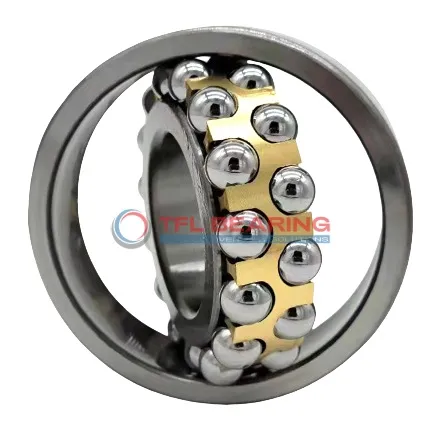

Self Aligning Ball Bearings 1316-KM

Brand: TFL Bearing Interchangeable: SKF 1316-KM 80 mm × 170 mm × 39 mm Metric Open
Part number: 1316-KM
Self Aligning Ball Bearings 1316-KM
In Stock
US$267.29 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia80 mm
Bore Dia Tolerance-0.015mm to 0
Outer Dia170 mm
Outer Dia Tolerance-0.025mm to 0
Width39 mm
Width Tolerance-0.15mm to 0
External Diameter On Inner Ring110 mm
Internal Diameter On Outer Ring144.4 mm
Chamfer Dimension2.1 mm
Performance
Dynamic Radial Load19,890 lbf
Static Radial Load7,538 lbf
Temperature Range-30° to 110 °C
Max Speed5,300 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceCN
Weight4.2 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 1316-KM is a self-aligning ball bearing with an 80mm tapered bore and 170mm outer diameter, designed for radial loads. Its double-row construction and chrome steel components provide durability, handling dynamic loads up to 19890 lbf.

With a brass cage and open design, it offers smooth operation at speeds up to 5300 RPM. The bearing’s self-aligning feature compensates for minor misalignments, reducing wear.

It’s pre-lubricated and works in temperatures from -30°C to 110°C, making it suitable for industrial machinery or conveyor systems. Weighing 4.2kg, it’s robust yet manageable for its size.

This model is interchangeable with SKF bearings and complies with RoHS and REACH standards. Ideal for applications where alignment flexibility and radial load capacity are key.

Features

Why Choose 1316-KM Bearing for Precision Tasks?

1316-KM Bearing features a double-row design with chrome steel rings and balls, ensuring strong radial load capacity.
Its dynamic radial load reaches 19890 lbf, making it suitable for demanding applications.

The brass cage maintains ball alignment, reducing friction and enhancing durability.
With a maximum speed of 5,300 rpm, it offers reliable performance in various conditions.

1316-KM Bearing operates efficiently within a temperature range of -30° to 110°C.
Its open seal type allows for easy lubrication, ensuring smooth operation over time.

Application

Industrial Uses of 1316-KM Bearing
1316-KM Bearing is commonly used in heavy machinery, such as conveyor systems and industrial fans, where its self-aligning feature compensates for minor misalignments. The double-row design provides added stability, making it suitable for high-load applications.

In automotive settings, 1316-KM Bearing fits well in gearboxes and drivetrains, handling radial loads with ease. Its brass cage ensures smooth operation even under continuous use, reducing maintenance needs.

For automation equipment, 1316-KM Bearing’s tapered bore allows for secure mounting in robotic arms and assembly lines. The chrome steel construction offers durability, ensuring long service life in demanding environments.

Medical imaging devices benefit from 1316-KM Bearing’s precision and reliability, where consistent performance is essential. The open seal design facilitates easy lubrication, maintaining optimal functionality over time.
