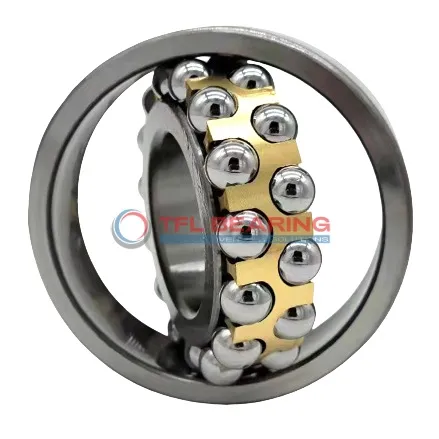

Self Aligning Ball Bearings 1316-K-M-C3

Brand: TFL Bearing Interchangeable: SKF 1316-K-M-C3 80 mm × 170 mm × 39 mm Metric Open
Part number: 1316-K-M-C3
Self Aligning Ball Bearings 1316-K-M-C3
In Stock
US$242.07 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia80 mm
Bore Dia Tolerance-0.015mm to 0
Outer Dia170 mm
Outer Dia Tolerance-0.025mm to 0
Width39 mm
Width Tolerance-0.15mm to 0
External Diameter On Inner Ring110 mm
Internal Diameter On Outer Ring144.4 mm
Chamfer Dimension2.1 mm
Performance
Dynamic Radial Load19,890 lbf
Static Radial Load7,538 lbf
Temperature Range-30° to 110 °C
Max Speed5,300 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceC3
Weight4.2 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 1316-K-M-C3 is a self-aligning ball bearing with an 80mm tapered bore and 170mm outer diameter, built from sturdy chrome steel. It manages radial loads up to 19890 lbf and runs smoothly at speeds up to 5300 RPM.

Its double-row design and brass cage provide durability, while the open seal allows for easy lubrication. The bearing operates well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a reliable alternative for replacements. Suitable for machinery with misalignment or heavy radial loads, like conveyor systems or industrial fans.

Weighing 4.2kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Features

Performance Features of 1316-K-M-C3 Bearing

1316-K-M-C3 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 19890 lbf, ensuring reliable performance in various applications.

The brass cage maintains ball alignment, reducing friction and extending service life.
With a maximum speed of 5,300 rpm, it delivers consistent performance under demanding conditions.

1316-K-M-C3 Bearing’s double-row design enhances load distribution, improving stability.
Its C3 radial clearance allows for thermal expansion, making it suitable for high-temperature environments.

The tapered bore design simplifies installation, ensuring a secure fit on shafts.
This feature makes 1316-K-M-C3 Bearing a practical choice for industrial applications.

Application

Industrial Uses of 1316-K-M-C3 Bearing
1316-K-M-C3 Bearing is commonly used in heavy machinery, such as conveyor systems and industrial fans, where its self-aligning feature compensates for shaft misalignment. The brass cage ensures smooth operation even under high radial loads.

In automotive applications, 1316-K-M-C3 Bearing fits well in gearboxes and drivetrains, thanks to its tapered bore for secure mounting. Its chrome steel construction provides long-lasting performance in demanding conditions.

For automation equipment, 1316-K-M-C3 Bearing’s double-row design offers stability in robotic arms and assembly lines. The C3 radial clearance allows for thermal expansion, making it suitable for high-speed operations.

Medical imaging devices benefit from 1316-K-M-C3 Bearing’s precision and reliability, ensuring consistent performance in critical applications. The lubricated design reduces maintenance needs, ideal for sensitive environments.
