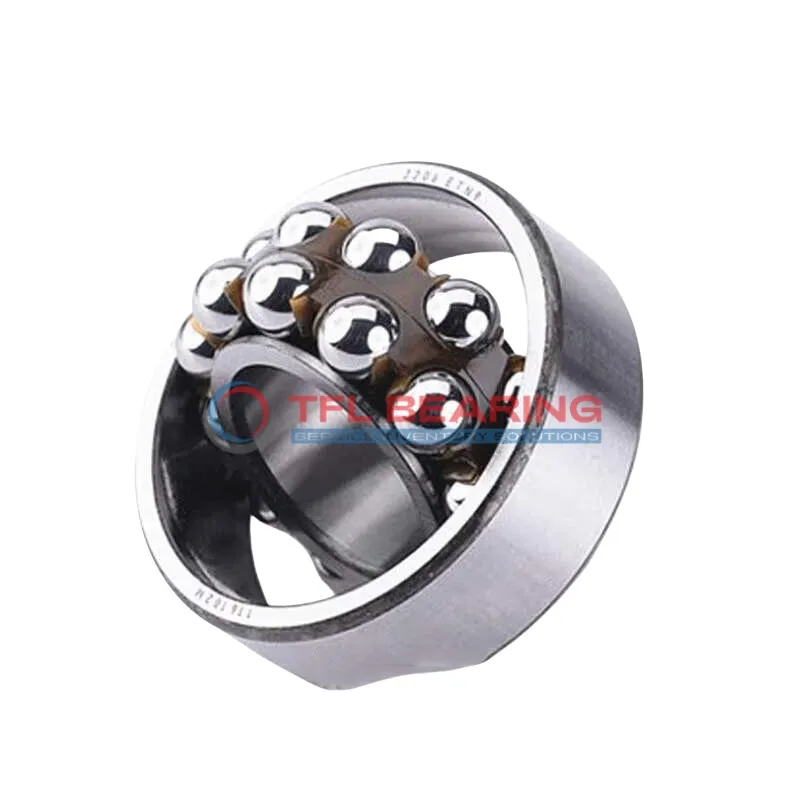

Self Aligning Ball Bearings 1315 K/C3

Brand: TFL Bearing Interchangeable: SKF 1315 K/C3 75 mm × 160 mm × 37 mm Metric Open
Part number: 1315 K/C3
Self Aligning Ball Bearings 1315 K/C3
In Stock
US$192.65 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia75 mm
Bore Dia Tolerance-0.015mm to 0
Outer Dia160 mm
Outer Dia Tolerance-0.025mm to 0
Width37 mm
Width Tolerance-0.15mm to 0
External Diameter On Inner Ring104.8 mm
Internal Diameter On Outer Ring135.2 mm
Chamfer Dimension2.1 mm
Performance
Dynamic Radial Load17,842 lbf
Static Radial Load6,750 lbf
Temperature Range-30° to 110 °C
Max Speed5,600 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceC3
Weight3.4 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 1315 K/C3 is a self-aligning ball bearing with a 75mm tapered bore and 160mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 17842 lbf and operates smoothly at speeds up to 5600 RPM.

Its double-row design and open seal allow for easy lubrication, while the nylon cage reduces friction for quieter performance. The bearing handles temperatures from -30°C to 110°C, making it versatile for various conditions.

With a C3 radial clearance, it accommodates slight misalignments, ideal for machinery with shaft deflection. This model is interchangeable with SKF bearings, offering a reliable replacement option.

Weighing 3.4kg, it’s robust yet manageable for industrial applications like conveyors or fans where alignment flexibility is needed. Compliant with RoHS and REACH standards for safe use.

Features

How Does 1315 K/C3 Bearing Ensure Smooth Radial Load Handling?

1315 K/C3 Bearing features a double-row design with chrome steel rings and balls, optimised for radial load distribution.
Its dynamic radial load capacity of 17842 lbf ensures reliable performance in various applications.
The nylon cage maintains ball alignment, reducing friction and enhancing durability.
With a maximum speed of 5,600 rpm, it offers a balance of efficiency and longevity.

Application

Industrial Uses of 1315 K/C3 Bearing
1315 K/C3 Bearing is commonly used in heavy machinery like conveyor belts and industrial mixers, where its self-aligning feature compensates for minor misalignments. The double-row design ensures stable performance under radial loads, making it suitable for demanding environments.

Where Is 1315 K/C3 Bearing Used?
In automotive applications, 1315 K/C3 Bearing supports components like wheel hubs and transmissions, thanks to its tapered bore for secure fitting. The chrome steel construction provides durability, even under constant vibration and stress.

Built for Heavy-Duty Use: 1315 K/C3 Bearing
For automation systems, 1315 K/C3 Bearing is a reliable choice for robotic arms and assembly lines, where precision and longevity are key. The nylon cage reduces friction, ensuring smooth operation over extended periods.

Light-Duty vs Heavy-Duty: Best Uses for 1315 K/C3 Bearing
In consumer appliances like washing machines, 1315 K/C3 Bearing handles moderate loads while maintaining quiet operation. Its C3 radial clearance allows for thermal expansion, making it adaptable to varying operating conditions.
