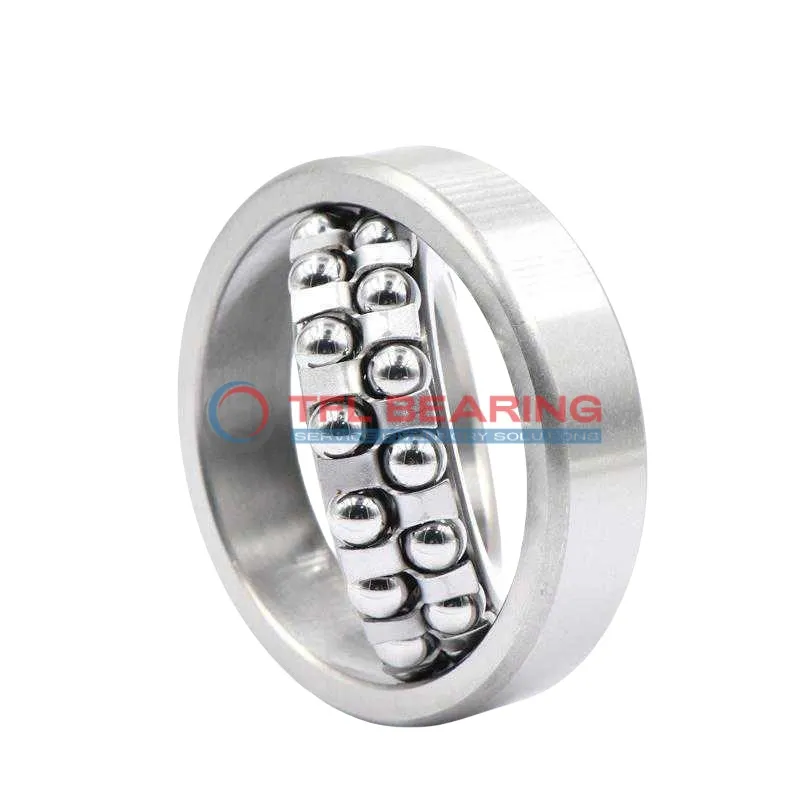

Self Aligning Ball Bearings 1315 C/2

Self Aligning Ball Bearings 1315 C/2

The 1315 C/2 is a self-aligning ball bearing with a 75mm bore and 160mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 17842 lbf and operates smoothly at speeds up to 5600 RPM.

Its double-row design allows slight misalignment adjustments, reducing wear and tear. The open seal type makes lubrication straightforward, while the stainless steel cage enhances durability.

This bearing works in temperatures from -30°C to 110°C and is interchangeable with SKF models for easy replacements. Ideal for heavy-duty machinery or conveyor systems where alignment flexibility is needed.

Weighing 3.55kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1315 C/2
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 160 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 37 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 104.8 mm
  • Internal Diameter On Outer Ring 135.2 mm
  • Chamfer Dimension 2.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 17842 lbf
  • Static Radial Load 6750 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 5600 rpm
  • Weight 3.55 kg
  • Price（$） 178.29
Self Aligning Ball Bearings 1315 C/2 dimension drawing
Download DWG Download PDF

Features

How Does 1315 C/2 Bearing Reduce Friction?

1315 C/2 Bearing features a double-row ball design with chrome steel rings and balls, ensuring smooth radial load distribution.
Its precision-engineered construction minimises friction, allowing for efficient operation even under heavy loads.

The stainless steel cage maintains ball alignment, reducing wear and extending the bearing’s lifespan.
With a maximum speed of 5,600 rpm, it offers reliable performance in various applications.

1315 C/2 Bearing’s open design simplifies lubrication, ensuring consistent performance over time.
Its radial clearance of CN provides optimal fit and function in diverse operating conditions.

Application

Industrial Uses of 1315 C/2 Bearing
1315 C/2 Bearing is commonly used in industrial machinery like conveyor systems and heavy-duty fans, where its double-row design helps manage radial loads efficiently. The open seal type makes it easier to maintain in dusty environments.

What Makes 1315 C/2 Bearing a Preferred Choice?
In automotive applications, 1315 C/2 Bearing fits well in gearboxes and transmission systems, thanks to its chrome steel construction and reliable performance. Its metric sizing ensures compatibility with a variety of vehicle models.

Built for Heavy-Duty Use: 1315 C/2 Bearing
For automation and robotics, 1315 C/2 Bearing provides stability in mechanical arms and assembly lines, where precision and durability are key. The stainless steel cage adds to its longevity in high-use scenarios.

Medical vs Industrial: Where 1315 C/2 Bearing Excels
While 1315 C/2 Bearing is robust enough for industrial equipment, its smooth operation also makes it suitable for medical devices like imaging scanners. The radial clearance option ensures consistent performance under varying loads.
