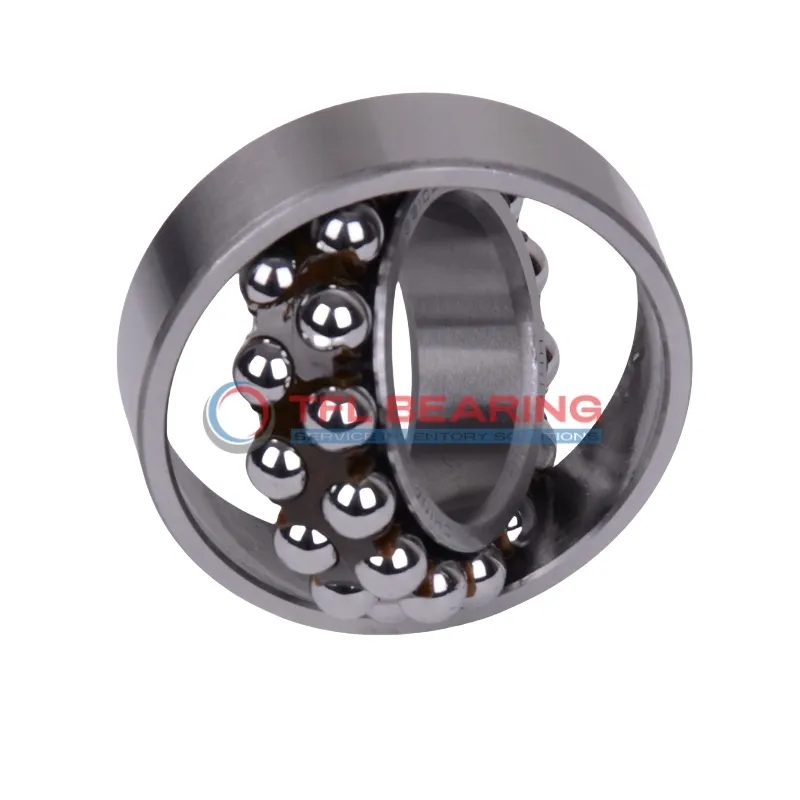

Self Aligning Ball Bearings 1312-TVH

Self Aligning Ball Bearings 1312-TVH

The 1312-TVH is a self-aligning ball bearing with a 60mm bore and 130mm outer diameter, crafted from sturdy chrome steel. Its double-row design handles radial loads up to 13162 lbf and runs smoothly at speeds up to 6300 RPM.

The nylon cage reduces friction, while the open seal allows for easy lubrication. It operates reliably in temperatures from -30°C to 110°C.

This bearing is interchangeable with SKF models, offering a practical replacement option. Perfect for machinery where misalignment or heavy radial loads are expected, like conveyor systems or agricultural equipment.

Weighing 1.9kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1312-TVH
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 31 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 91.61 mm
  • Internal Diameter On Outer Ring 116.7 mm
  • Chamfer Dimension 2.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 13162 lbf
  • Static Radial Load 4950 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 6300 rpm
  • Weight 1.9 kg
  • Price（$） 112.95
Self Aligning Ball Bearings 1312-TVH dimension drawing
Download DWG Download PDF

Features

How Does 1312-TVH Bearing Reduce Friction?

1312-TVH Bearing features a double-row ball design with chrome steel rings and balls, ensuring smooth radial load distribution.
Its nylon cage minimises friction, allowing for quieter operation and reduced energy consumption.
The bearing’s dynamic radial load capacity of 13162 lbf makes it suitable for demanding applications.
With a maximum speed of 6,300 rpm, it maintains reliable performance under various conditions.

Application

Industrial Uses of 1312-TVH Bearing
1312-TVH Bearing is commonly used in industrial fans and blowers, where its self-aligning feature compensates for minor misalignments. The double-row design ensures stable performance even under heavy radial loads.

Where Is 1312-TVH Bearing Used?
You’ll often find 1312-TVH Bearing in conveyor systems, thanks to its ability to handle continuous operation. The nylon cage reduces friction, making it a quiet and efficient choice for long-running machinery.

Built for Heavy-Duty Use: 1312-TVH Bearing
In agricultural machinery, 1312-TVH Bearing stands up to tough conditions like dust and vibrations. Its chrome steel construction offers durability, while the open design allows for easy relubrication.

Automotive vs Aerospace: Applications of 1312-TVH Bearing
In automotive applications, 1312-TVH Bearing supports components like pumps and gearboxes. For aerospace, its precision and reliability make it suitable for auxiliary systems requiring consistent performance.

Perfect Fit for Automation: 1312-TVH Bearing
1312-TVH Bearing works well in robotic arms, where smooth movement is essential. The lubricated design ensures minimal maintenance, ideal for high-precision automation tasks.
