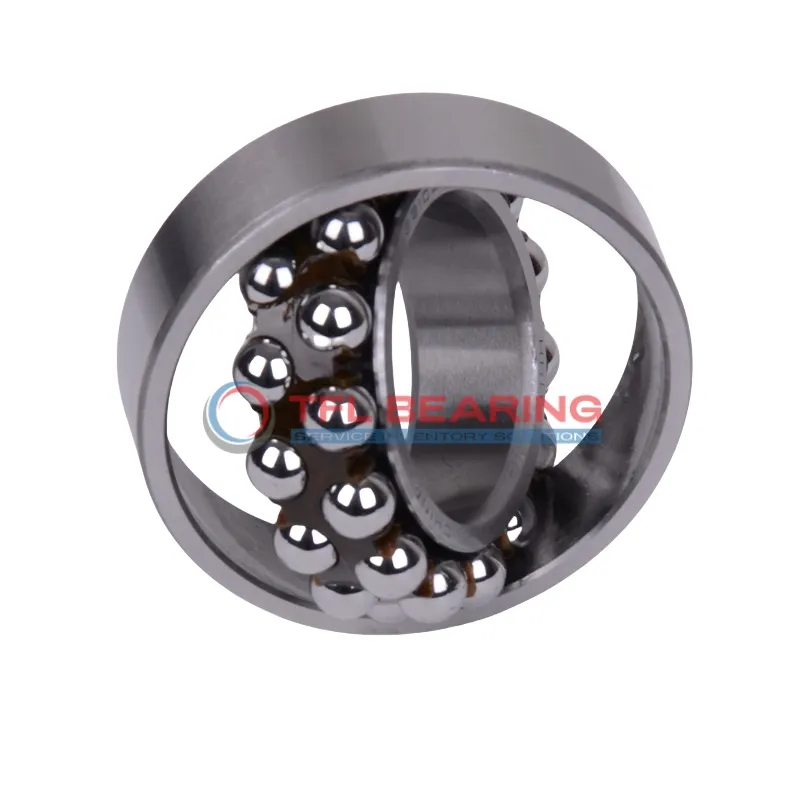

Self Aligning Ball Bearings 1312-K-TVH-C3

Self Aligning Ball Bearings 1312-K-TVH-C3

The 1312-K-TVH-C3 is a self-aligning ball bearing with a 60mm tapered bore and 130mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 13162 lbf and operates smoothly at speeds reaching 6300 RPM.

Its double-row design and open seal allow for easy lubrication, while the nylon cage reduces friction for quieter performance. The bearing handles temperatures from -30°C to 110°C, making it versatile for various conditions.

With a C3 radial clearance, it accommodates slight misalignments, ideal for applications like conveyor systems or agricultural machinery. Weighing 1.9kg, it’s robust yet manageable for its size.

This model is interchangeable with SKF bearings, offering a reliable alternative for replacements. Compliant with RoHS and REACH standards, it’s a safe choice for industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1312-K-TVH-C3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 31 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 91.61 mm
  • Internal Diameter On Outer Ring 116.7 mm
  • Chamfer Dimension 2.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 13162 lbf
  • Static Radial Load 4950 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 6300 rpm
  • Weight 1.9 kg
  • Price（$） 112.95
Self Aligning Ball Bearings 1312-K-TVH-C3 dimension drawing
Download DWG Download PDF

Features

Why Choose 1312-K-TVH-C3 Bearing for Precision Tasks?

1312-K-TVH-C3 Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load rating of 13162 lbf makes it suitable for demanding industrial applications.

The nylon cage in 1312-K-TVH-C3 Bearing helps reduce friction and noise during operation.
With a maximum speed of 6,300 rpm, it offers a balance of performance and durability.

1312-K-TVH-C3 Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its C3 radial clearance ensures smooth performance under varying load conditions.

The open seal design of 1312-K-TVH-C3 Bearing simplifies maintenance and lubrication.
Its tapered bore allows for easy and secure mounting on shafts.

Application

Industrial Uses of 1312-K-TVH-C3 Bearing
1312-K-TVH-C3 Bearing is commonly used in heavy machinery, such as conveyor systems and industrial fans, where its self-aligning feature compensates for minor misalignments. The double-row design ensures stable performance under radial loads, making it suitable for demanding environments.

What Makes 1312-K-TVH-C3 Bearing a Preferred Choice?
In automotive applications, 1312-K-TVH-C3 Bearing is often found in gearboxes and wheel hubs, where its tapered bore provides a secure fit. The nylon cage reduces friction, enhancing efficiency and longevity in high-speed scenarios.

Built for Heavy-Duty Use: 1312-K-TVH-C3 Bearing
For automation equipment like robotic arms, 1312-K-TVH-C3 Bearing offers reliable performance with its chrome steel construction. The C3 radial clearance allows for thermal expansion, ensuring smooth operation in varying temperatures.

Medical vs Industrial: Where 1312-K-TVH-C3 Bearing Excels
While 1312-K-TVH-C3 Bearing is robust enough for industrial presses, its precision also suits medical imaging devices. The lubricated design ensures quiet operation, crucial for sensitive environments like hospitals.

Practical Applications of 1312-K-TVH-C3 Bearing
In household appliances like washing machines, 1312-K-TVH-C3 Bearing handles radial loads effortlessly. Its open seal type simplifies maintenance, making it a cost-effective choice for long-term use.
