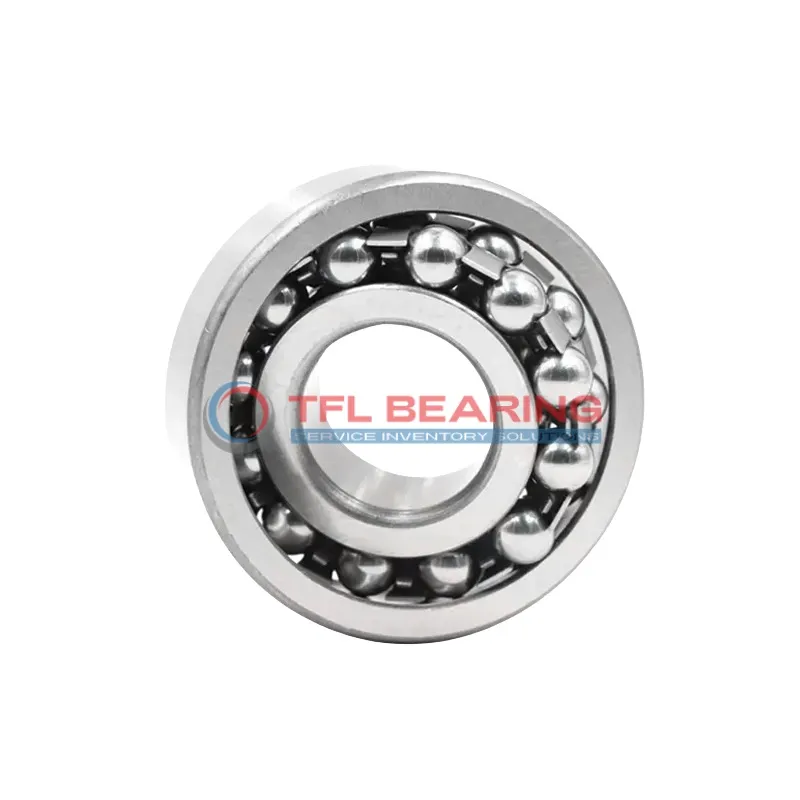

Self Aligning Ball Bearings 1310KJ

Self Aligning Ball Bearings 1310KJ

The 1310KJ is a self-aligning ball bearing with a 50mm tapered bore and 110mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 9810 lbf and operates smoothly at speeds reaching 8000 RPM.

Its double-row design and open construction allow for easy lubrication and alignment adjustments, while the steel cage enhances durability. The bearing performs reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for machinery with misalignment issues, such as conveyor systems or agricultural equipment.

Weighing 1.2kg, it’s a robust choice for heavy-duty applications. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1310KJ
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 27 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 70.3 mm
  • Internal Diameter On Outer Ring 92.6 mm
  • Chamfer Dimension 2 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 9810 lbf
  • Static Radial Load 3150 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 8000 rpm
  • Weight 1.2 kg
  • Price（$） 74.35
Self Aligning Ball Bearings 1310KJ dimension drawing
Download DWG Download PDF

Features

How Does 1310KJ Bearing Ensure Smooth Radial Load Handling?

1310KJ Bearing features a double-row ball design, optimised for radial load distribution and smooth operation.
Its chrome steel construction enhances durability, supporting dynamic radial loads up to 9810 lbf.

The tapered bore design ensures secure fitting, reducing misalignment risks during operation.
With a maximum speed of 8,000 rpm, it maintains consistent performance in various applications.

1310KJ Bearing operates efficiently within a temperature range of -30° to 110°C, adapting to different working conditions.
Its steel cage maintains ball alignment, contributing to longer service life and reduced maintenance needs.

Application

Industrial Uses of 1310KJ Bearing
1310KJ Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments, ensuring smooth operation. The double-row design provides added stability, making it suitable for heavy loads.

In automotive applications, 1310KJ Bearing is found in gearboxes and drivetrains, handling radial loads efficiently. Its tapered bore ensures a secure fit, reducing slippage during high-speed rotations.

For industrial fans and blowers, 1310KJ Bearing’s open design allows for easy lubrication, extending service life. The chrome steel construction offers reliable performance even in demanding environments.

Where Is 1310KJ Bearing Used?
1310KJ Bearing is ideal for agricultural machinery, such as tractors and harvesters, where dirt and debris are common. Its robust design withstands harsh conditions while maintaining performance.

In printing presses, 1310KJ Bearing ensures precise paper handling due to its radial load capacity. The steel cage enhances durability, reducing maintenance needs over time.

Built for Heavy-Duty Use: 1310KJ Bearing
1310KJ Bearing excels in construction equipment, like cranes and excavators, where shock loads are frequent. Its self-aligning capability prevents premature wear from misalignment.

For food processing machinery, 1310KJ Bearing’s lubricated design meets hygiene standards while providing smooth operation. The metric sizing ensures compatibility with various European machines.
