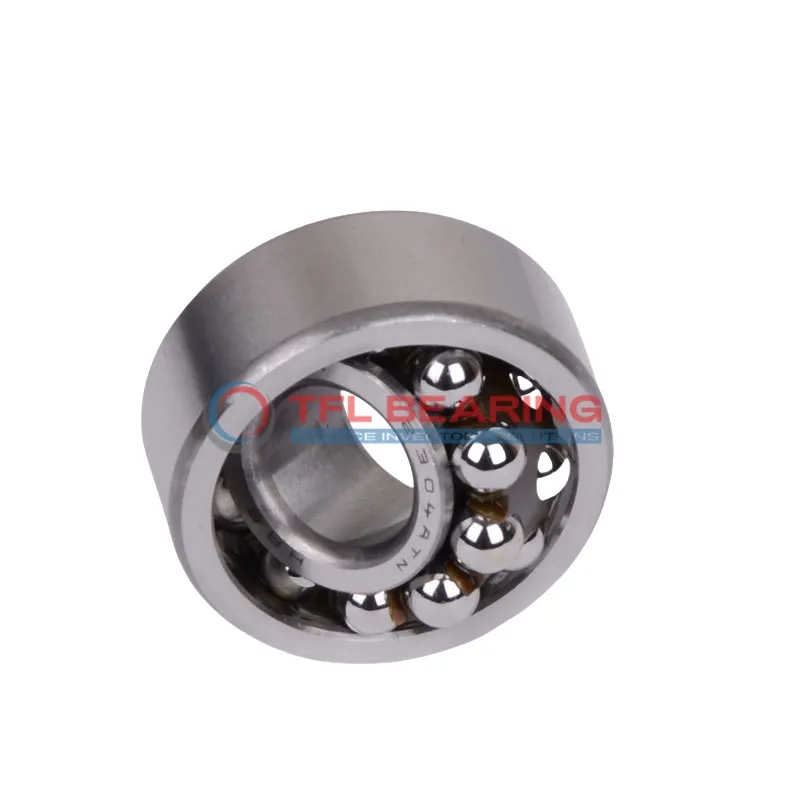

Self Aligning Ball Bearings 1310-K C/3

Brand: TFL Bearing Interchangeable: SKF 1310-K C/3 50 mm × 110 mm × 27 mm Metric Open
Part number: 1310-K C/3
Self Aligning Ball Bearings 1310-K C/3
In Stock
US$56.12 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia50 mm
Bore Dia Tolerance-0.012mm to 0
Outer Dia110 mm
Outer Dia Tolerance-0.015mm to 0
Width27 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring70.3 mm
Internal Diameter On Outer Ring92.6 mm
Chamfer Dimension2 mm
Performance
Dynamic Radial Load9,810 lbf
Static Radial Load3,150 lbf
Temperature Range-30° to 110 °C
Max Speed8,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceCN
Weight1.2 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 1310-K C/3 is a self-aligning ball bearing with a 50mm tapered bore and 110mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 9810 lbf and runs smoothly at speeds reaching 8000 RPM.

Its double-row design and open seal make it adaptable to slight misalignments, while the nylon cage reduces friction for quieter operation. The bearing operates well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a reliable alternative for replacements. Perfect for machinery like conveyors or fans where alignment flexibility is needed.

Weighing 1.2kg, it’s a robust choice for industrial applications. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Features

How Is 1310-K C/3 Bearing Engineered for Reliability?

1310-K C/3 Bearing features a double-row design with chrome steel rings and balls, offering strong radial load capacity.
Its dynamic radial load reaches 9810 lbf, ensuring steady performance in various applications.
The nylon cage helps reduce friction and noise, enhancing smooth operation.
With a maximum speed of 8,000 rpm, it balances durability and efficiency.

Application

Industrial Uses of 1310-K C/3 Bearing
1310-K C/3 Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments. The double-row design ensures stability under radial loads, making it suitable for heavy-duty applications.

In automotive applications, 1310-K C/3 Bearing fits well in gearboxes and drivetrains, providing smooth operation. The tapered bore allows for secure mounting, reducing slippage during high-speed rotations.

For automation equipment, 1310-K C/3 Bearing supports robotic arms and assembly lines with its reliable performance. The nylon cage reduces friction, enhancing efficiency in continuous operations.

Where Is 1310-K C/3 Bearing Used?
1310-K C/3 Bearing can be found in industrial fans, where its ability to handle misalignment prolongs service life. The chrome steel construction ensures durability even in dusty environments.

In printing machinery, 1310-K C/3 Bearing helps maintain precision during high-speed paper handling. The lubricated design minimises wear, ensuring consistent performance over time.

Built for Heavy-Duty Use: 1310-K C/3 Bearing
1310-K C/3 Bearing excels in construction equipment, such as cranes and excavators, thanks to its robust design. The high dynamic load capacity makes it ideal for demanding conditions.

In agricultural machinery, 1310-K C/3 Bearing withstands harsh environments while maintaining performance. The open seal type allows for easy relubrication, extending bearing life.

Automotive vs Aerospace: Applications of 1310-K C/3 Bearing
In automotive systems, 1310-K C/3 Bearing is often used in wheel hubs and transmissions. Its radial load capacity ensures smooth operation under varying stresses.

For aerospace applications, 1310-K C/3 Bearing supports auxiliary systems like fuel pumps. The temperature range makes it reliable in both extreme cold and moderate heat.
