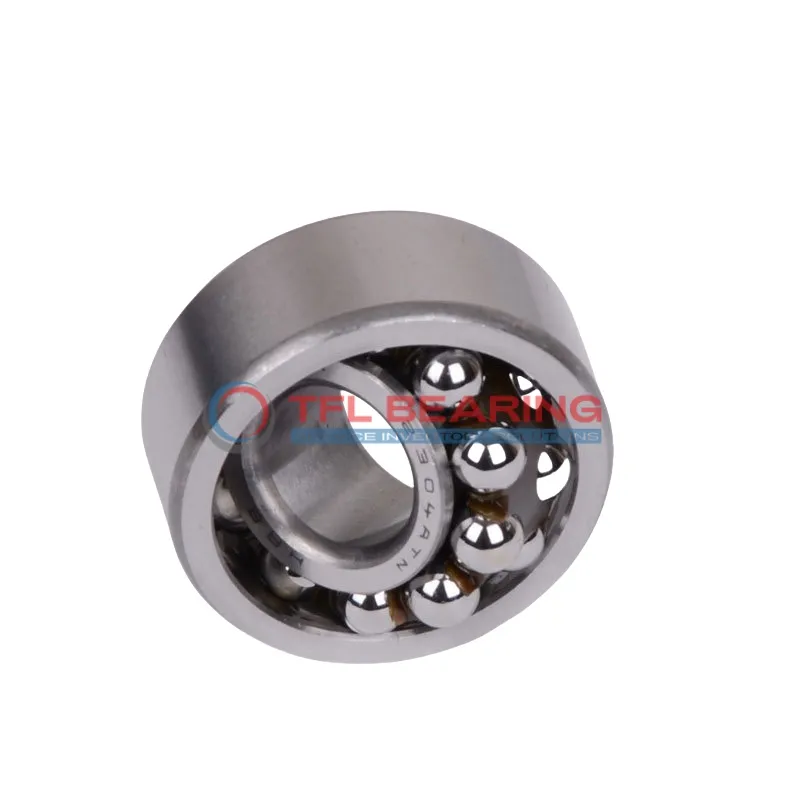

Self Aligning Ball Bearings 1310/C5

Self Aligning Ball Bearings 1310/C5

The 1310/C5 is a self-aligning ball bearing with a 50mm bore and 110mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 9810 lbf and operates smoothly at speeds up to 8000 RPM.

Its double-row design and open seal allow for easy alignment and maintenance, while the nylon cage reduces friction for quieter performance. The bearing works reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for machinery with misalignment issues, such as conveyor systems or agricultural equipment.

Weighing 1.2kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1310/C5
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 27 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 70.3 mm
  • Internal Diameter On Outer Ring 92.6 mm
  • Chamfer Dimension 2 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 9810 lbf
  • Static Radial Load 3150 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 8000 rpm
  • Weight 1.2 kg
Self Aligning Ball Bearings 1310/C5 dimension drawing
Download DWG Download PDF

Features

Performance Features of 1310/C5 Bearing

1310/C5 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 9810 lbf, ensuring reliable performance in various applications.

The double-row design of 1310/C5 Bearing enhances load distribution, reducing stress on individual components.
With a maximum speed of 8,000 rpm, it balances efficiency and durability for smooth operation.

1310/C5 Bearing’s nylon cage helps maintain ball alignment, minimising wear and extending service life.
Its open design allows for easy lubrication, ensuring consistent performance over time.

Designed for radial loads, 1310/C5 Bearing operates efficiently within a temperature range of -30° to 110°C.
The precise tolerances and chamfered edges contribute to its reliable and long-lasting performance.

Application

Industrial Uses of 1310/C5 Bearing
1310/C5 Bearing is commonly used in industrial fans and blowers, where its self-aligning feature compensates for minor misalignments. The double-row design ensures stable performance even under heavy radial loads.

Where Is 1310/C5 Bearing Used?
In conveyor systems, 1310/C5 Bearing helps maintain smooth operation by reducing friction and wear. Its nylon cage provides quiet performance, ideal for environments where noise reduction is important.

Built for Heavy-Duty Use: 1310/C5 Bearing
1310/C5 Bearing is a reliable choice for agricultural machinery, handling uneven loads with ease. The chrome steel construction offers durability in dusty or humid conditions.

Automotive vs Aerospace: Applications of 1310/C5 Bearing
In automotive applications, 1310/C5 Bearing supports components like pumps and compressors. Its metric sizing makes it versatile for various machinery across different industries.

Perfect Fit for Automation: 1310/C5 Bearing
1310/C5 Bearing works well in robotic arms, where precision and flexibility are key. The lubricated design ensures long service life with minimal maintenance.
