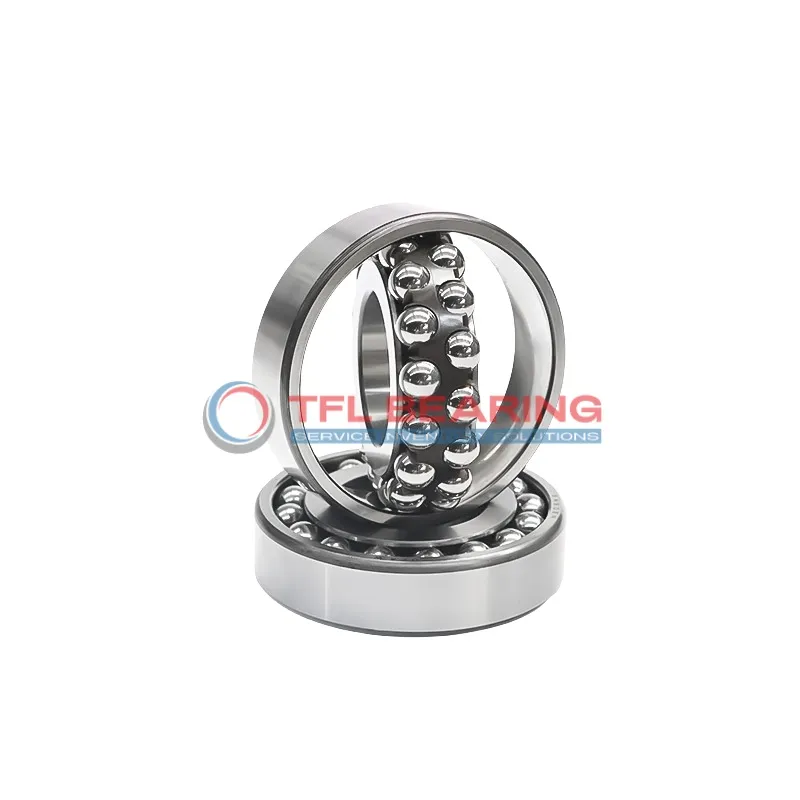

Self Aligning Ball Bearings 1309-K-TVH-C3

Self Aligning Ball Bearings 1309-K-TVH-C3

The 1309-K-TVH-C3 is a self-aligning ball bearing with a 45mm tapered bore and 100mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 8775 lbf and operates smoothly at speeds up to 8500 RPM.

Its double-row design and open seal allow for easy lubrication and maintenance, while the nylon cage reduces friction for quieter performance. The bearing works reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like conveyor systems or agricultural machinery where misalignment might occur.

Weighing 0.96kg, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1309-K-TVH-C3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 25 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 67.71 mm
  • Internal Diameter On Outer Ring 87.8 mm
  • Chamfer Dimension 1.5 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 8775 lbf
  • Static Radial Load 3015 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 8500 rpm
  • Weight 0.96 kg
  • Price（$） 20.84
Self Aligning Ball Bearings 1309-K-TVH-C3 dimension drawing
Download DWG Download PDF

Features

How Does 1309-K-TVH-C3 Bearing Reduce Friction?

1309-K-TVH-C3 Bearing features a double-row design with chrome steel balls, ensuring smooth radial load distribution.

The nylon cage minimises friction, allowing for quieter operation and extended bearing life.

With a dynamic radial load capacity of 8775 lbf, it handles demanding applications with ease.

Its C3 radial clearance provides optimal performance in various operating conditions.

Application

Industrial Uses of 1309-K-TVH-C3 Bearing
1309-K-TVH-C3 Bearing is commonly used in industrial machinery like conveyor systems and fans, where its self-aligning feature compensates for minor misalignments. The double-row design provides reliable radial load support in demanding environments.

In automotive applications, 1309-K-TVH-C3 Bearing fits well in gearboxes and wheel hubs, thanks to its tapered bore for secure mounting. The nylon cage reduces noise, making it suitable for passenger vehicles.

For automation equipment, 1309-K-TVH-C3 Bearing ensures smooth operation in robotic arms and assembly lines. Its C3 radial clearance allows for thermal expansion during high-speed cycles.

Medical imaging devices benefit from 1309-K-TVH-C3 Bearing’s precision and low vibration. The chrome steel construction ensures durability in critical healthcare settings.

In household appliances like washing machines, 1309-K-TVH-C3 Bearing offers quiet performance and long service life. The lubricated design minimises maintenance for everyday use.
