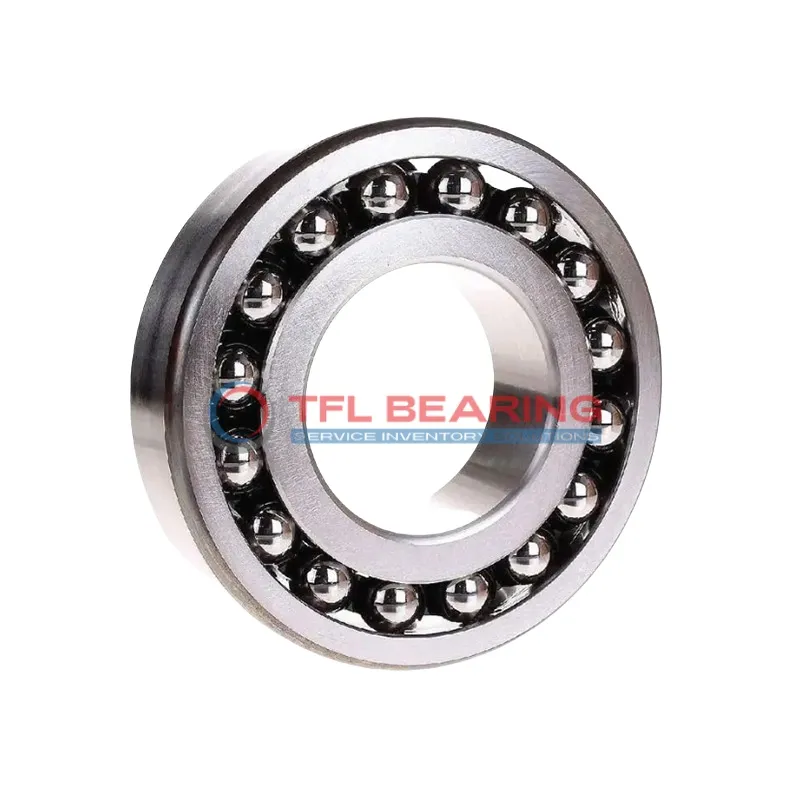

Self Aligning Ball Bearings 13030

Self Aligning Ball Bearings 13030

The 13030 is a self-aligning ball bearing with a 150mm bore and 225mm outer diameter, measuring 56mm in width. Made from chrome steel, it’s built to handle radial loads up to 12870 lbf and operates at speeds up to 3400 RPM.

Its double-row design allows for slight misalignment, making it forgiving in less precise setups. The stainless steel cage ensures durability, while the open seal type simplifies maintenance.

This bearing is pre-lubricated and works in temperatures from -30°C to 110°C. It’s interchangeable with SKF models, offering a reliable replacement option.

Weighing 7.5kg, it’s sturdy yet manageable for industrial use. Ideal for machinery where radial loads and minor shaft misalignment are common, such as conveyor systems or agricultural equipment. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 13030
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 150 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 225 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 56 mm
  • Width Tolerance -0.25mm to 0
  • External Diameter On Inner Ring 175.4 mm
  • Internal Diameter On Outer Ring 203.7 mm
  • Chamfer Dimension 2.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 12870 lbf
  • Static Radial Load 5040 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 3400 rpm
  • Weight 7.5 kg
  • Price（$） 688.66
Self Aligning Ball Bearings 13030 dimension drawing
Download DWG Download PDF

Features

Performance Features of 13030 Bearing

13030 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 12870 lbf, making it suitable for heavy-duty applications.

The double-row design of 13030 Bearing ensures smooth operation and better load distribution.
With a maximum speed of 3,400 rpm, it balances performance and durability in various conditions.

13030 Bearing operates efficiently in temperatures ranging from -30° to 110°C.
The stainless steel cage maintains ball alignment, reducing wear and extending service life.

Its open seal type allows for easy lubrication, ensuring consistent performance.
The precise tolerances in bore and outer diameters enhance reliability in demanding environments.

Application

Industrial Uses of 13030 Bearing
13030 Bearing is commonly used in heavy machinery like conveyors and mixers, where its self-aligning feature compensates for minor misalignments. The double-row design provides excellent radial load capacity, making it suitable for demanding industrial environments.

In automotive applications, 13030 Bearing supports components like axle systems and transmissions, ensuring smooth operation under varying loads. Its chrome steel construction offers durability, while the open design allows for easy lubrication and maintenance.

For automation systems, 13030 Bearing is ideal for robotic arms and assembly lines, where precision and reliability are key. The stainless steel cage enhances its longevity, even in high-speed operations.

Where Is 13030 Bearing Used?
You’ll often find 13030 Bearing in wind turbines, where its ability to handle misalignment and heavy loads is crucial. The metric sizing ensures compatibility with a wide range of European and Asian equipment.

In construction machinery, 13030 Bearing is a reliable choice for cranes and excavators, thanks to its robust design. The lubricated feature helps maintain performance in harsh outdoor conditions.

Built for Heavy-Duty Use: 13030 Bearing
13030 Bearing excels in mining equipment, where its high dynamic radial load capacity is essential. The chrome steel rings and balls provide long-lasting performance, even in abrasive environments.

For agricultural machinery, 13030 Bearing supports components like harvesters and tractors, ensuring reliable operation. Its self-aligning capability reduces wear and tear, extending the bearing’s lifespan.

Automotive vs Aerospace: Applications of 13030 Bearing
In automotive systems, 13030 Bearing is used in gearboxes and differentials, offering stability under radial loads. Its design ensures smooth performance, even in high-vibration scenarios.

In aerospace, 13030 Bearing is less common but can be found in ground support equipment. The bearing’s durability and precision make it suitable for auxiliary systems requiring reliable load handling.
