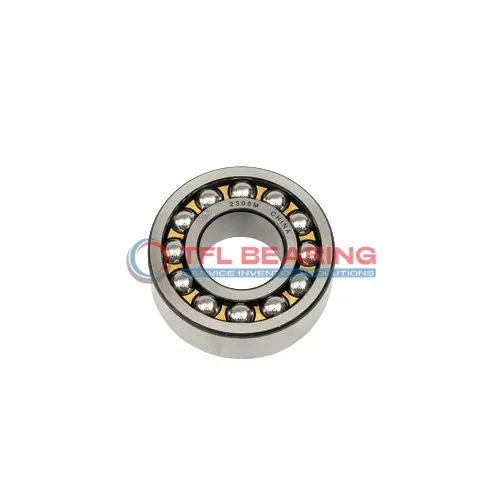

Self Aligning Ball Bearings 1224-M-C3

Brand: TFL Bearing Interchangeable: SKF 1224-M-C3 120 mm × 215 mm × 42 mm Metric Open
Part number: 1224-M-C3
Self Aligning Ball Bearings 1224-M-C3
In Stock
US$802.65 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia120 mm
Bore Dia Tolerance-0.02mm to 0
Outer Dia215 mm
Outer Dia Tolerance-0.03mm to 0
Width42 mm
Width Tolerance-0.2mm to 0
External Diameter On Inner Ring149 mm
Internal Diameter On Outer Ring187.2 mm
Chamfer Dimension2.1 mm
Performance
Dynamic Radial Load26,775 lbf
Static Radial Load11,925 lbf
Temperature Range-30° to 110 °C
Max Speed4,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeCylindrical
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceC3
Weight6.5 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 1224-M-C3 is a self-aligning ball bearing with a 120mm bore and 215mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 26775 lbf and operates smoothly at speeds up to 4000 RPM.

Its double-row design and brass cage provide durability, while the open seal allows for easy lubrication. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for heavy machinery or conveyor systems where misalignment might occur.

Weighing 6.5kg, it’s robust yet manageable for industrial use. Compliant with RoHS and REACH standards, ensuring safety and environmental friendliness.

Features

How Does 1224-M-C3 Bearing Handle Radial Loads?

1224-M-C3 Bearing features a double-row design, optimised for handling high radial loads up to 26775 lbf.

The chrome steel rings and balls ensure durability, while the brass cage maintains smooth operation.

With a C3 radial clearance, it accommodates slight misalignments without compromising performance.

Its maximum speed of 4,000 rpm makes it suitable for various industrial applications.

Application

Industrial Uses of 1224-M-C3 Bearing
The 1224-M-C3 Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its double-row design handles radial loads efficiently. Its open seal type allows for easy lubrication, extending service life in demanding environments.

What Makes 1224-M-C3 Bearing a Preferred Choice?
With its chrome steel construction and brass cage, 1224-M-C3 Bearing offers reliable performance in applications like gearboxes and electric motors. The C3 radial clearance ensures smooth operation even under varying thermal conditions.

Built for Heavy-Duty Use: 1224-M-C3 Bearing
In mining equipment, 1224-M-C3 Bearing withstands high radial loads while maintaining alignment, thanks to its self-aligning feature. The metric dimensions make it a versatile fit for European and Asian machinery standards.

Automotive vs Aerospace: Applications of 1224-M-C3 Bearing
In automotive systems, 1224-M-C3 Bearing supports components like drivetrains, where durability is key. For aerospace, its precision and temperature tolerance make it suitable for auxiliary equipment.
