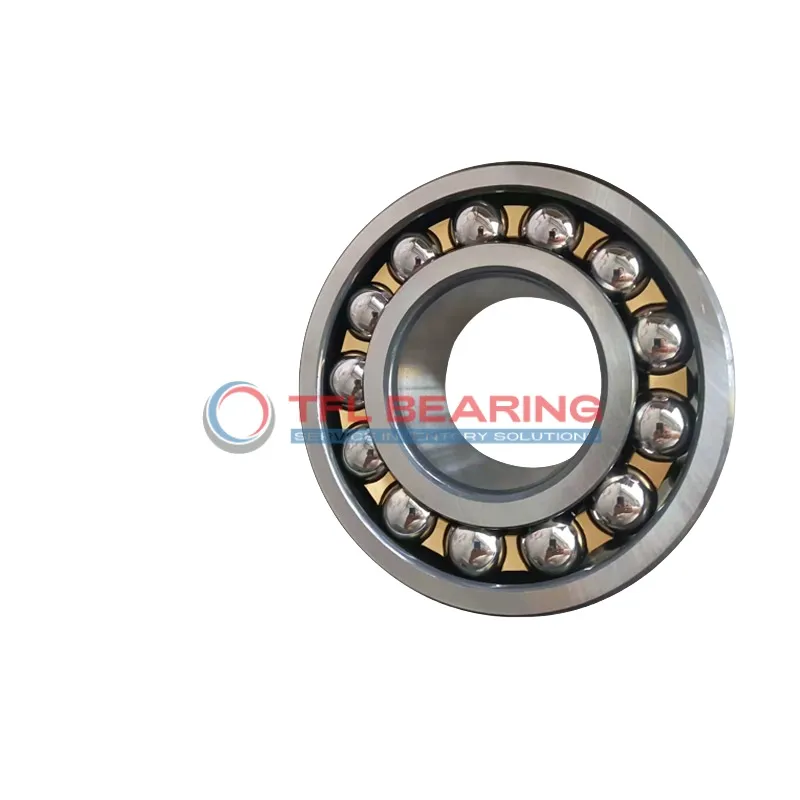

Self Aligning Ball Bearings 1220-KM

Brand: TFL Bearing Interchangeable: SKF 1220-KM 100 mm × 180 mm × 34 mm Metric Open
Part number: 1220-KM
Self Aligning Ball Bearings 1220-KM
In Stock
US$243.21 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia100 mm
Bore Dia Tolerance-0.02mm to 0
Outer Dia180 mm
Outer Dia Tolerance-0.025mm to 0
Width34 mm
Width Tolerance-0.2mm to 0
External Diameter On Inner Ring127 mm
Internal Diameter On Outer Ring155.8 mm
Chamfer Dimension2.1 mm
Performance
Dynamic Radial Load15,502 lbf
Static Radial Load6,750 lbf
Temperature Range-30° to 110 °C
Max Speed4,800 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceCN
Weight3.7 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 1220-KM is a self-aligning ball bearing with a 100mm tapered bore and 180mm outer diameter, crafted from sturdy chrome steel for durability. It manages radial loads up to 15502 lbf and operates smoothly at speeds up to 4800 RPM.

Its double-row design and brass cage provide reliable performance, while the open seal allows for easy lubrication. The bearing functions well in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like conveyor systems or agricultural machinery where misalignment might occur.

Weighing 3.7kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Features

Why Choose 1220-KM Bearing for Precision Tasks?

1220-KM Bearing features a double-row design with chrome steel rings and balls, ensuring reliable radial load handling.
Its dynamic radial load capacity of 15502 lbf makes it suitable for demanding industrial applications.

The brass cage maintains ball alignment, reducing friction and wear for smoother operation.
With a maximum speed of 4,800 rpm, it balances performance and durability.

1220-KM Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its tapered bore design simplifies installation and ensures a secure fit.

Application

Industrial Uses of 1220-KM Bearing
1220-KM Bearing is commonly used in heavy machinery, such as conveyor systems and industrial fans, where its self-aligning feature compensates for minor misalignments. The double-row design ensures reliable radial load handling in demanding environments.

What Makes 1220-KM Bearing a Preferred Choice?
In automotive applications, 1220-KM Bearing supports components like gearboxes and drivetrains, offering smooth operation under high radial loads. Its brass cage enhances durability, making it suitable for long-term use in vehicles.

Perfect Fit for Automation: 1220-KM Bearing
For robotic arms and automated production lines, 1220-KM Bearing provides precise movement and low friction. The chrome steel construction ensures consistent performance in high-speed operations.

Medical vs Industrial: Where 1220-KM Bearing Excels
While 1220-KM Bearing is robust enough for industrial equipment, its precision also makes it suitable for medical devices like imaging systems. The lubricated design reduces maintenance needs in critical applications.
