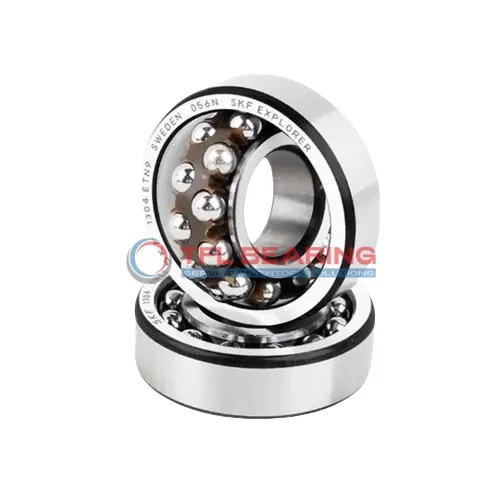

Self Aligning Ball Bearings 1217 K/C3

Brand: TFL Bearing Interchangeable: SKF 1217 K/C3 85 mm × 150 mm × 28 mm Metric Open
Part number: 1217 K/C3
Self Aligning Ball Bearings 1217 K/C3
In Stock
US$130.63 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia85 mm
Bore Dia Tolerance-0.02mm to 0
Outer Dia150 mm
Outer Dia Tolerance-0.018mm to 0
Width28 mm
Width Tolerance-0.2mm to 0
External Diameter On Inner Ring107 mm
Internal Diameter On Outer Ring131 mm
Chamfer Dimension2 mm
Performance
Dynamic Radial Load10,980 lbf
Static Radial Load4,680 lbf
Temperature Range-30° to 110 °C
Max Speed5,600 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceC3
Weight2 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 1217 K/C3 is a self-aligning ball bearing with an 85mm tapered bore and 150mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 10980 lbf and operates smoothly at speeds up to 5600 RPM.

Its double-row design and open construction allow for easy lubrication and alignment adjustments, while the nylon cage reduces friction. The bearing performs reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like conveyor systems or agricultural machinery where misalignment might occur.

Weighing 2kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Features

How Is 1217 K/C3 Bearing Engineered for Reliability?

1217 K/C3 Bearing features a double-row design with chrome steel rings and balls, ensuring strong radial load capacity.
Its dynamic radial load reaches 10980 lbf, making it suitable for demanding applications.
The nylon cage maintains ball alignment, reducing friction and wear for smoother operation.
With a maximum speed of 5,600 rpm, it offers a balance of durability and performance.

Why Choose 1217 K/C3 Bearing for Precision Tasks?

1217 K/C3 Bearing’s tapered bore design ensures precise alignment, reducing stress on the bearing.
The C3 radial clearance allows for thermal expansion, maintaining performance in varying temperatures.
Its chrome steel construction resists wear, providing long-lasting reliability.
Lubrication is optimised for smooth operation, even at high speeds.

Built for Durability: 1217 K/C3 Bearing

1217 K/C3 Bearing is crafted from high-quality chrome steel, offering excellent resistance to wear.
The double-row ball design distributes loads evenly, enhancing its lifespan.
Its open seal type allows for easy lubrication, reducing maintenance needs.
With a temperature range of -30° to 110°C, it performs reliably in diverse conditions.

Steel vs Ceramic Bearings: Strengths of 1217 K/C3 Bearing

1217 K/C3 Bearing uses chrome steel for its rings and balls, providing robust strength and durability.
The material choice ensures it handles heavy radial loads up to 10980 lbf with ease.
Its nylon cage reduces noise and friction, making it ideal for precision applications.
The bearing’s design focuses on longevity and consistent performance.

Application

Industrial Uses of 1217 K/C3 Bearing
1217 K/C3 Bearing is commonly used in heavy machinery like conveyors and mixers, where its self-aligning feature compensates for minor misalignments. The double-row design ensures stable performance under radial loads, making it suitable for demanding industrial environments.

How Does 1217 K/C3 Bearing Improve Performance?
In automotive applications, 1217 K/C3 Bearing enhances the reliability of wheel hubs and transmissions by handling radial loads efficiently. Its tapered bore design ensures a secure fit, reducing vibration and wear over time.

Built for Heavy-Duty Use: 1217 K/C3 Bearing
For construction equipment, 1217 K/C3 Bearing’s chrome steel construction and nylon cage provide durability in harsh conditions. The C3 radial clearance allows for thermal expansion, ensuring consistent performance in varying temperatures.

Automotive vs Aerospace: Applications of 1217 K/C3 Bearing
In automotive systems, 1217 K/C3 Bearing supports wheel hubs and gearboxes, while in aerospace, it’s used in auxiliary systems requiring precision. Its metric sizing and tapered bore make it versatile across different industries.

Perfect Fit for Automation: 1217 K/C3 Bearing
1217 K/C3 Bearing is ideal for robotic arms and automated assembly lines, where its self-aligning capability reduces maintenance needs. The lubricated design ensures smooth operation, even in high-speed scenarios.
