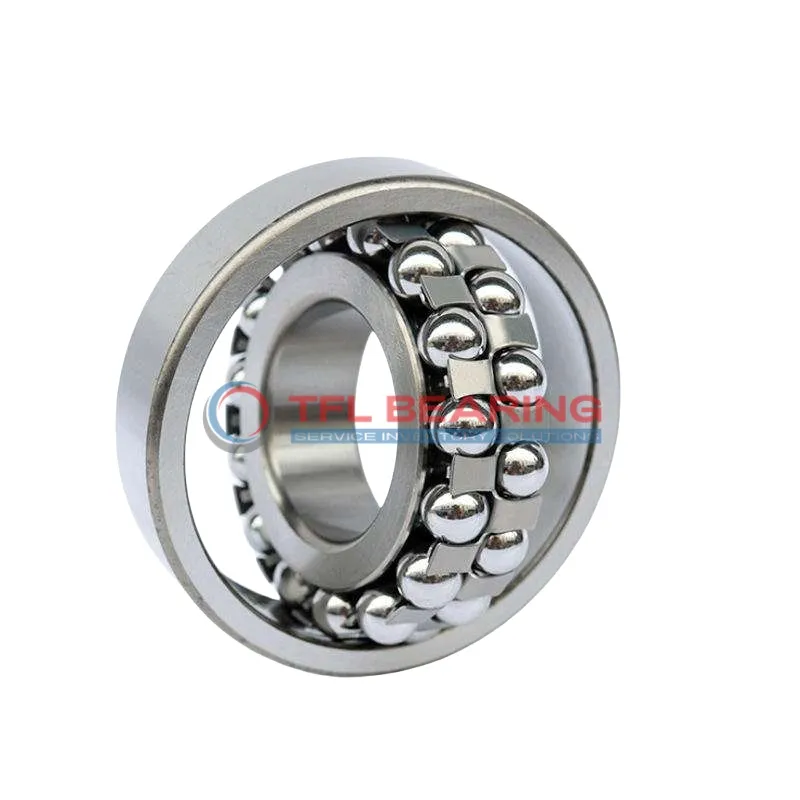

Self Aligning Ball Bearings 1215-K C/3

Brand: TFL Bearing Interchangeable: SKF 1215-K C/3 75 mm × 130 mm × 25 mm Metric Open
Part number: 1215-K C/3
Self Aligning Ball Bearings 1215-K C/3
In Stock
US$71.76 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia75 mm
Bore Dia Tolerance-0.015mm to 0
Outer Dia130 mm
Outer Dia Tolerance-0.018mm to 0
Width25 mm
Width Tolerance-0.15mm to 0
External Diameter On Inner Ring93.05 mm
Internal Diameter On Outer Ring114.2 mm
Chamfer Dimension1.5 mm
Performance
Dynamic Radial Load8,775 lbf
Static Radial Load3,510 lbf
Temperature Range-30° to 110 °C
Max Speed6,700 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceCN
Weight1.35 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialStainless Steel
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 1215-K C/3 is a self-aligning ball bearing with a 75mm tapered bore and 130mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 8775 lbf and operates smoothly at speeds reaching 6700 RPM.

Its double-row design and open construction allow for easy lubrication and alignment adjustments, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for machinery where misalignment or radial loads are common, such as conveyor systems or agricultural equipment.

Weighing 1.35kg, it’s a robust yet manageable size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Features

How Is 1215-K C/3 Bearing Engineered for Reliability?

1215-K C/3 Bearing features a double-row design with chrome steel rings and balls, ensuring strong radial load capacity.
Its dynamic radial load rating of 8775 lbf makes it suitable for demanding applications.
The stainless steel cage maintains ball alignment, reducing friction and wear.
With a maximum speed of 6,700 rpm, it offers a balance of durability and performance.

Application

Industrial Uses of 1215-K C/3 Bearing
1215-K C/3 Bearing is commonly used in industrial machinery like conveyor systems and mixers, where its self-aligning feature compensates for minor misalignments. The double-row design ensures stable performance under radial loads, making it suitable for heavy-duty applications.

What Makes 1215-K C/3 Bearing a Preferred Choice?
In automotive applications, 1215-K C/3 Bearing is often found in gearboxes and wheel hubs, where its tapered bore provides a secure fit. The chrome steel construction offers durability, even in high-speed scenarios.

Built for Heavy-Duty Use: 1215-K C/3 Bearing
For automation equipment, 1215-K C/3 Bearing supports robotic arms and assembly lines, thanks to its reliable radial load capacity. The open seal design allows for easy lubrication, extending its service life.

Medical vs Industrial: Where 1215-K C/3 Bearing Excels
In medical devices like imaging equipment, 1215-K C/3 Bearing ensures smooth operation with minimal maintenance. Its stainless steel cage resists corrosion, making it ideal for sterile environments.

Where to Use 1215-K C/3 Bearing
1215-K C/3 Bearing is a great fit for household appliances like washing machines, where its self-aligning capability reduces wear and tear. The metric sizing ensures compatibility with a wide range of consumer products.
