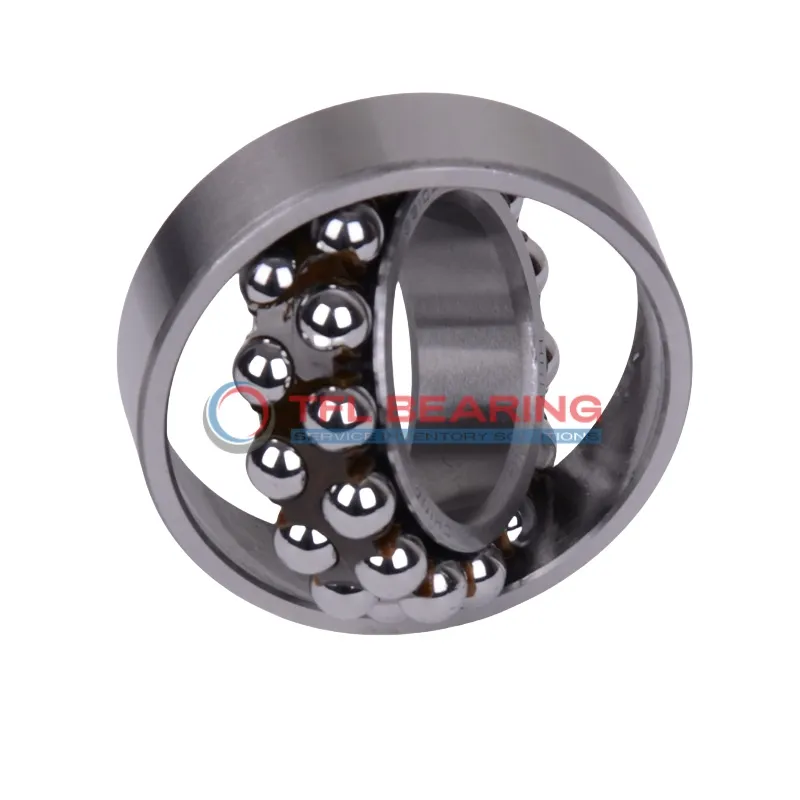

Self Aligning Ball Bearings 1212KTN

Brand: TFL Bearing Interchangeable: SKF 1212KTN 60 mm × 110 mm × 22 mm Metric Open
Part number: 1212KTN
Self Aligning Ball Bearings 1212KTN
In Stock
US$59.92 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia60 mm
Bore Dia Tolerance-0.015mm to 0
Outer Dia110 mm
Outer Dia Tolerance-0.015mm to 0
Width22 mm
Width Tolerance-0.15mm to 0
External Diameter On Inner Ring78 mm
Internal Diameter On Outer Ring95.6 mm
Chamfer Dimension1.5 mm
Performance
Dynamic Radial Load7,020 lbf
Static Radial Load2,745 lbf
Temperature Range-30° to 110 °C
Max Speed8,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceCN
Weight0.9 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 1212KTN is a self-aligning ball bearing with a 60mm tapered bore and 110mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 7020 lbf and operates smoothly at speeds reaching 8000 RPM.

Its double-row design and open seal type allow for easy lubrication and maintenance, while the nylon cage reduces friction for quieter performance. The bearing works reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for machinery with misalignment issues, such as conveyor systems or agricultural equipment.

Weighing 0.9kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Features

Why Choose 1212KTN Bearing for Precision Tasks?

1212KTN Bearing features a double-row design with chrome steel rings and balls, ensuring smooth radial load handling.
Its dynamic radial load capacity of 7020 lbf makes it suitable for high-performance applications.

The nylon cage in 1212KTN Bearing reduces friction and noise, enhancing operational efficiency.
With a maximum speed of 8,000 rpm, it delivers reliable performance in various conditions.

1212KTN Bearing operates within a temperature range of -30° to 110°C, adapting to different environments.
Its tapered bore design simplifies installation, saving time and effort during setup.

Application

Industrial Uses of 1212KTN Bearing
1212KTN Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments. The double-row design ensures stability even under heavy radial loads.

In automotive applications, 1212KTN Bearing fits well in gearboxes and wheel hubs, thanks to its tapered bore for secure mounting. The chrome steel construction provides durability in high-speed conditions.

For automation equipment, 1212KTN Bearing supports robotic arms and assembly lines, where smooth rotation is essential. The nylon cage reduces friction, enhancing efficiency in continuous operations.

Where Is 1212KTN Bearing Used?
You’ll find 1212KTN Bearing in industrial fans, where its self-aligning capability handles shaft deflections. The open seal design allows for easy relubrication in dusty environments.

In household appliances like washing machines, 1212KTN Bearing ensures quiet and reliable performance. Its metric sizing makes it a versatile choice for various European and Asian brands.

Built for Heavy-Duty Use: 1212KTN Bearing
1212KTN Bearing excels in construction machinery, handling uneven loads with ease. The dynamic radial load capacity of 7020 lbf makes it suitable for demanding applications.

In agricultural equipment, 1212KTN Bearing withstands harsh conditions while maintaining performance. The lubricated design ensures long service life even in dusty or wet environments.

Automotive vs Aerospace: Applications of 1212KTN Bearing
In automotive systems, 1212KTN Bearing is ideal for transmissions due to its high-speed tolerance. The tapered bore ensures a secure fit under varying loads.

For aerospace components, 1212KTN Bearing’s lightweight design and reliability make it a practical choice. The temperature range of -30° to 110°C suits both ground and flight conditions.
