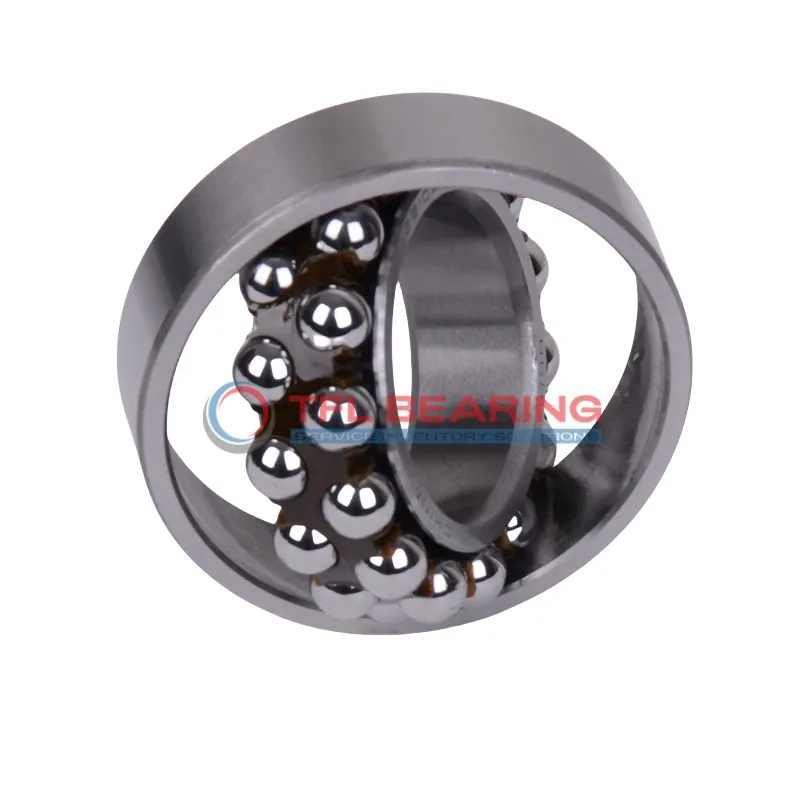

Self Aligning Ball Bearings 1212 KC3

Brand: TFL Bearing Interchangeable: SKF 1212 KC3 60 mm × 110 mm × 22 mm Metric Open
Part number: 1212 KC3
Self Aligning Ball Bearings 1212 KC3
In Stock
US$61.92 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia60 mm
Bore Dia Tolerance-0.015mm to 0
Outer Dia110 mm
Outer Dia Tolerance-0.015mm to 0
Width22 mm
Width Tolerance-0.15mm to 0
External Diameter On Inner Ring78 mm
Internal Diameter On Outer Ring95.6 mm
Chamfer Dimension1.5 mm
Performance
Dynamic Radial Load7,020 lbf
Static Radial Load2,745 lbf
Temperature Range-30° to 110 °C
Max Speed8,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceC3
Weight0.9 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 1212 KC3 is a self-aligning ball bearing with a 60mm tapered bore and 110mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 7020 lbf and operates smoothly at speeds reaching 8000 RPM.

Its double-row design and open seal make it adaptable to slight misalignments, while the nylon cage reduces friction for quieter performance. The bearing works reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for machinery like conveyors or fans where alignment flexibility is needed.

Weighing 0.9kg, it’s a robust choice for industrial applications. Compliant with RoHS and REACH standards for safe use.

Features

Performance Features of 1212 KC3 Bearing

1212 KC3 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 7020 lbf, making it suitable for demanding applications.

The double-row design ensures smooth operation and compensates for minor misalignments.
With a maximum speed of 8,000 rpm, it balances performance and durability.

Nylon cage material reduces friction and noise, enhancing operational efficiency.
The C3 radial clearance allows for thermal expansion, ensuring reliable performance in varying temperatures.

Lubrication is pre-applied, simplifying initial setup and reducing maintenance needs.
1212 KC3 Bearing operates efficiently within a temperature range of -30° to 110°C.

Application

Industrial Uses of 1212 KC3 Bearing
The 1212 KC3 Bearing is commonly used in conveyor systems and material handling equipment, where its self-aligning feature compensates for minor misalignments. Its double-row design ensures reliable performance under radial loads in demanding industrial environments.

Where Is 1212 KC3 Bearing Used?
You’ll often find 1212 KC3 Bearing in agricultural machinery, such as tractors and harvesters, where it handles varying loads and vibrations. The nylon cage reduces friction, making it suitable for applications requiring smooth rotation.

Built for Heavy-Duty Use: 1212 KC3 Bearing
1212 KC3 Bearing excels in construction equipment like excavators, thanks to its robust chrome steel construction. The C3 radial clearance allows for thermal expansion, ensuring consistent performance in fluctuating temperatures.

Automotive vs Industrial: Applications of 1212 KC3 Bearing
In automotive applications, 1212 KC3 Bearing supports components like wheel hubs, while in industrial settings, it’s ideal for pumps and gearboxes. Its metric sizing ensures compatibility with a wide range of machinery.

Perfect Fit for Automation: 1212 KC3 Bearing
1212 KC3 Bearing is a reliable choice for robotic arms and automated assembly lines, where precision and durability are key. The open design simplifies lubrication, extending service life in high-speed operations.
