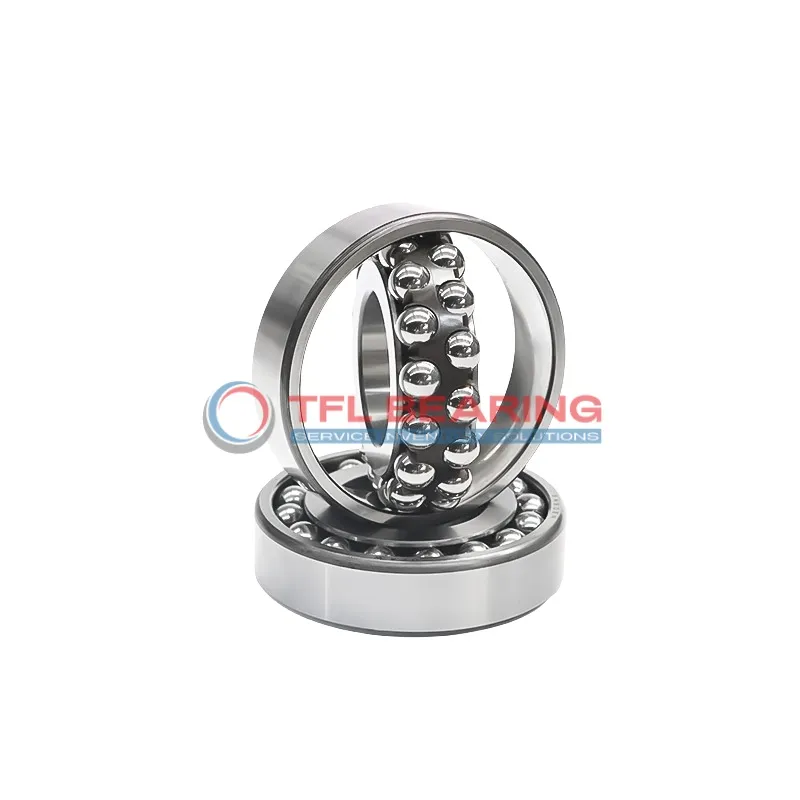

Self Aligning Ball Bearings 1209 ETN9

Brand: TFL Bearing Interchangeable: SKF 1209 ETN9 45 mm × 85 mm × 19 mm Metric Open
Part number: 1209 ETN9
Self Aligning Ball Bearings 1209 ETN9
In Stock
US$20.04 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia45 mm
Bore Dia Tolerance-0.012mm to 0
Outer Dia85 mm
Outer Dia Tolerance-0.015mm to 0
Width19 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring57.51 mm
Internal Diameter On Outer Ring72.5 mm
Chamfer Dimension1.1 mm
Performance
Dynamic Radial Load5,152 lbf
Static Radial Load1,755 lbf
Temperature Range-30° to 110 °C
Max Speed11,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Weight0.47 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 1209 ETN9 is a self-aligning ball bearing with a 45mm bore and 85mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 5152 lbf and operates smoothly at speeds up to 11,000 RPM.

Its double-row design and open construction allow for slight misalignment, while the nylon cage reduces friction and noise. The bearing works reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for applications like conveyor systems or agricultural machinery where alignment flexibility is needed.

Weighing 0.47kg, it’s a durable yet lightweight choice. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Features

How Does 1209 ETN9 Bearing Reduce Friction?

1209 ETN9 Bearing features a double-row design with chrome steel rings and balls, ensuring smooth radial load distribution.
Its nylon cage minimises friction, allowing for quieter operation and reduced energy consumption.

The bearing’s open design facilitates easy lubrication, maintaining optimal performance over time.
With a maximum speed of 11,000 rpm, it delivers reliable efficiency in various applications.

1209 ETN9 Bearing’s precision engineering ensures consistent performance even under dynamic radial loads up to 5152 lbf.
Its chrome steel construction provides durability, making it suitable for long-term use.

Application

Industrial Uses of 1209 ETN9 Bearing
The 1209 ETN9 Bearing is commonly used in industrial machinery like conveyor systems and fans, where its self-aligning feature helps compensate for minor misalignments. Its double-row design provides reliable radial load support, making it suitable for continuous operation.

What Makes 1209 ETN9 Bearing a Preferred Choice?
In automotive applications, 1209 ETN9 Bearing works well in gearboxes and wheel hubs due to its ability to handle radial loads efficiently. The chrome steel construction ensures durability, even under demanding conditions.

Perfect Fit for Automation: 1209 ETN9 Bearing
For robotics and automation, 1209 ETN9 Bearing offers smooth performance in robotic arms and assembly lines. The nylon cage reduces friction, contributing to quieter operation and longer service life.

Medical vs Industrial: Where 1209 ETN9 Bearing Excels
While 1209 ETN9 Bearing is versatile for industrial use, it also fits medical devices like diagnostic equipment, where precision and reliability are key. Its lubricated design ensures consistent performance in critical applications.
