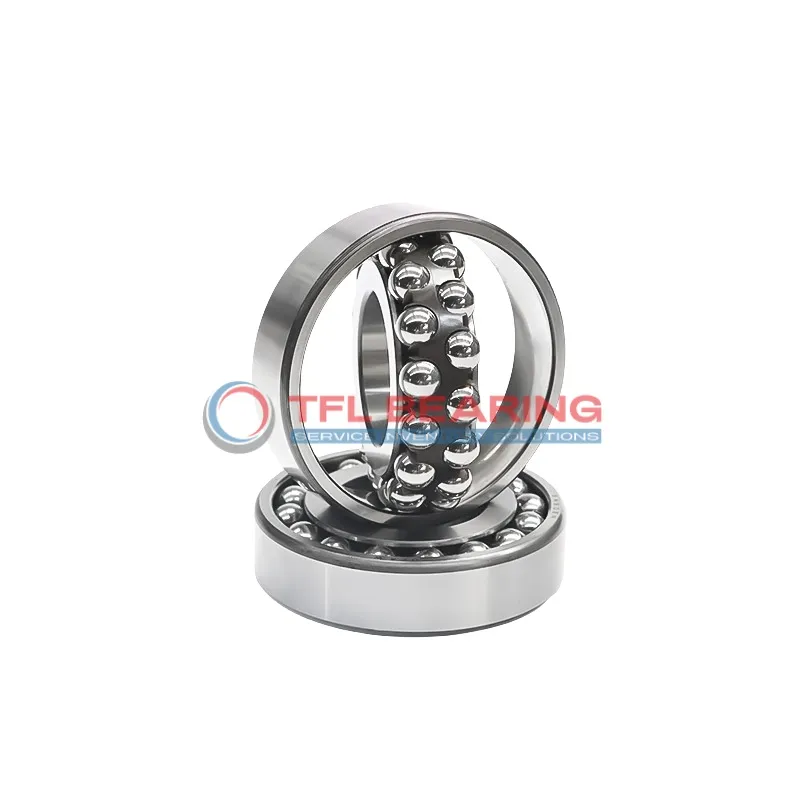

Self Aligning Ball Bearings 1209-TVH-C3

Self Aligning Ball Bearings 1209-TVH-C3

The 1209-TVH-C3 is a self-aligning ball bearing with a 45mm bore and 85mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 5152 lbf and operates smoothly at speeds up to 11000 RPM.

Its double-row design and open construction allow for slight misalignments, while the nylon cage reduces friction and noise. The bearing comes pre-lubricated and works in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a reliable alternative for replacements. Perfect for applications like conveyor systems or agricultural machinery where alignment flexibility is needed.

Weighing 0.47kg, it’s a robust yet manageable choice for industrial use. Compliant with RoHS and REACH standards for safety and environmental care.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1209-TVH-C3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 85 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 19 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 57.51 mm
  • Internal Diameter On Outer Ring 72.5 mm
  • Chamfer Dimension 1.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 5152 lbf
  • Static Radial Load 1755 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 11000 rpm
  • Weight 0.47 kg
  • Price（$） 11.56
Self Aligning Ball Bearings 1209-TVH-C3 dimension drawing
Download DWG Download PDF

Features

How Does 1209-TVH-C3 Bearing Reduce Friction?

1209-TVH-C3 Bearing features a double-row design with chrome steel rings and balls, ensuring smooth radial load distribution.
Its nylon cage minimises friction, allowing for quieter operation and reduced energy consumption.
With a dynamic radial load capacity of 5152 lbf, it handles demanding applications efficiently.
The C3 radial clearance provides optimal performance, even under varying thermal conditions.

Application

Industrial Uses of 1209-TVH-C3 Bearing
1209-TVH-C3 Bearing is commonly used in industrial fans and blowers, where its self-aligning feature compensates for minor misalignments. The double-row design provides added stability, making it suitable for continuous operation.

In automotive applications, 1209-TVH-C3 Bearing fits well in steering systems and wheel hubs, handling radial loads efficiently. Its nylon cage reduces friction, ensuring smoother performance in high-speed scenarios.

For automation equipment, 1209-TVH-C3 Bearing works reliably in robotic arms and conveyor belts. The C3 radial clearance allows for thermal expansion, maintaining performance under varying temperatures.

What Makes 1209-TVH-C3 Bearing a Preferred Choice?
1209-TVH-C3 Bearing is a go-to for agricultural machinery like harvesters, where dust and debris are common. Its open seal design simplifies cleaning and relubrication, extending service life.

In packaging machines, 1209-TVH-C3 Bearing ensures consistent performance despite slight shaft misalignments. The chrome steel construction offers durability, reducing downtime in high-production environments.
