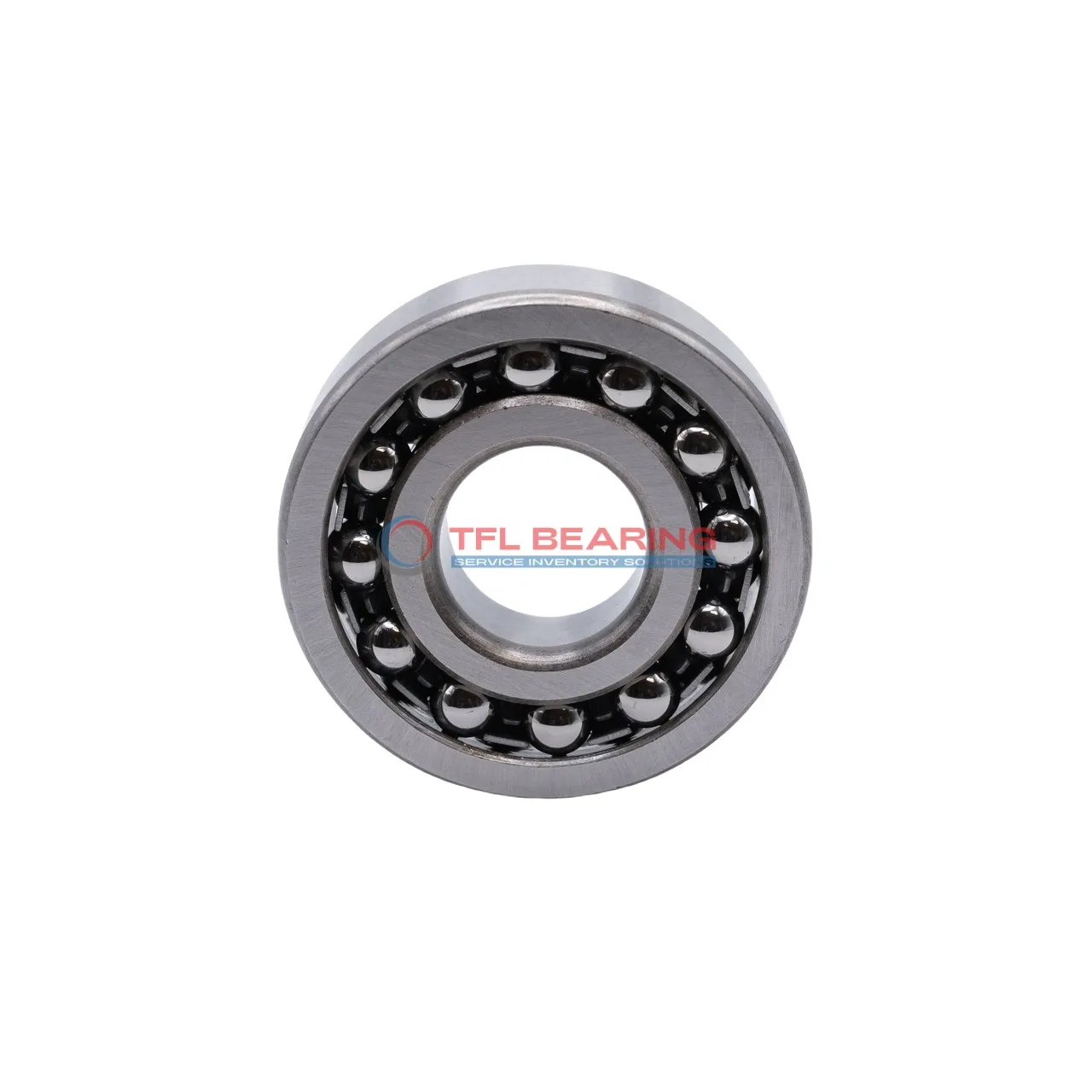

Self Aligning Ball Bearings 1206KJ

Brand: TFL Bearing Interchangeable: SKF 1206KJ 30 mm × 62 mm × 16 mm Metric Open
Part number: 1206KJ
Self Aligning Ball Bearings 1206KJ
In Stock
US$21.79 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia30 mm
Bore Dia Tolerance-0.01mm to 0
Outer Dia62 mm
Outer Dia Tolerance-0.013mm to 0
Width16 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring40.3 mm
Internal Diameter On Outer Ring51.9 mm
Chamfer Dimension1 mm
Performance
Dynamic Radial Load3,510 lbf
Static Radial Load1,046 lbf
Temperature Range-30° to 110 °C
Max Speed15,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceCN
Weight0.22 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialSteel
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 1206KJ is a self-aligning ball bearing with a 30mm bore and 62mm outer diameter, crafted from sturdy chrome steel. Its double-row design handles radial loads up to 3510 lbf and spins smoothly at speeds up to 15000 RPM.

The open seal type allows for easy lubrication, while the steel cage ensures durability. It operates well in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like conveyor systems or agricultural machinery where misalignment might occur.

Weighing just 0.22kg, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards for safe use.

Features

Why Choose 1206KJ Bearing for Precision Tasks?

1206KJ Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load reaches 3510 lbf, making it suitable for demanding applications.
The tapered bore design allows for precise alignment, reducing wear and improving performance.
With a maximum speed of 15,000 rpm, it offers both durability and efficiency.

How Is 1206KJ Bearing Engineered for Reliability?

1206KJ Bearing is constructed with chrome steel components, providing excellent resistance to wear.
The steel cage maintains ball alignment, ensuring smooth operation under radial loads.
Its open seal design allows for easy lubrication, extending the bearing’s service life.
Operating within a temperature range of -30° to 110°C, it performs reliably in various conditions.

Built for Reliability: 1206KJ Bearing

1206KJ Bearing’s double-row construction enhances its load-bearing capacity for radial applications.
The chrome steel materials resist wear, ensuring long-lasting performance.
With a radial clearance of CN, it accommodates slight misalignments without compromising efficiency.
Its lubricated design reduces friction, making it ideal for high-speed operations.

Steel vs Ceramic Bearings: Strengths of 1206KJ Bearing

1206KJ Bearing uses chrome steel for both rings and balls, offering a balance of strength and affordability.
The steel cage provides robust support, maintaining alignment under heavy radial loads.
Its dynamic radial load capacity of 3510 lbf ensures reliable performance in industrial settings.
The bearing’s tapered bore design simplifies installation and improves alignment accuracy.

Application

Industrial Uses of 1206KJ Bearing
1206KJ Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments. The double-row design ensures reliable performance even under heavy radial loads.

Where Is 1206KJ Bearing Used?
In automotive applications, 1206KJ Bearing fits well in gearboxes and wheel hubs, thanks to its tapered bore for secure mounting. Its chrome steel construction provides durability in high-speed conditions.

Built for Heavy-Duty Use: 1206KJ Bearing
For industrial fans and blowers, 1206KJ Bearing handles radial loads efficiently while maintaining smooth rotation. The open seal type allows for easy relubrication, extending service life.

Automotive vs Industrial: Applications of 1206KJ Bearing
In automotive settings, 1206KJ Bearing supports drivetrain components, while in industrial machinery, it excels in pumps and compressors. Its metric sizing ensures compatibility across various equipment.

Perfect Fit for Automation: 1206KJ Bearing
1206KJ Bearing works well in robotic arms, where its self-aligning capability reduces wear from misalignment. The steel cage offers added strength for continuous operation.
