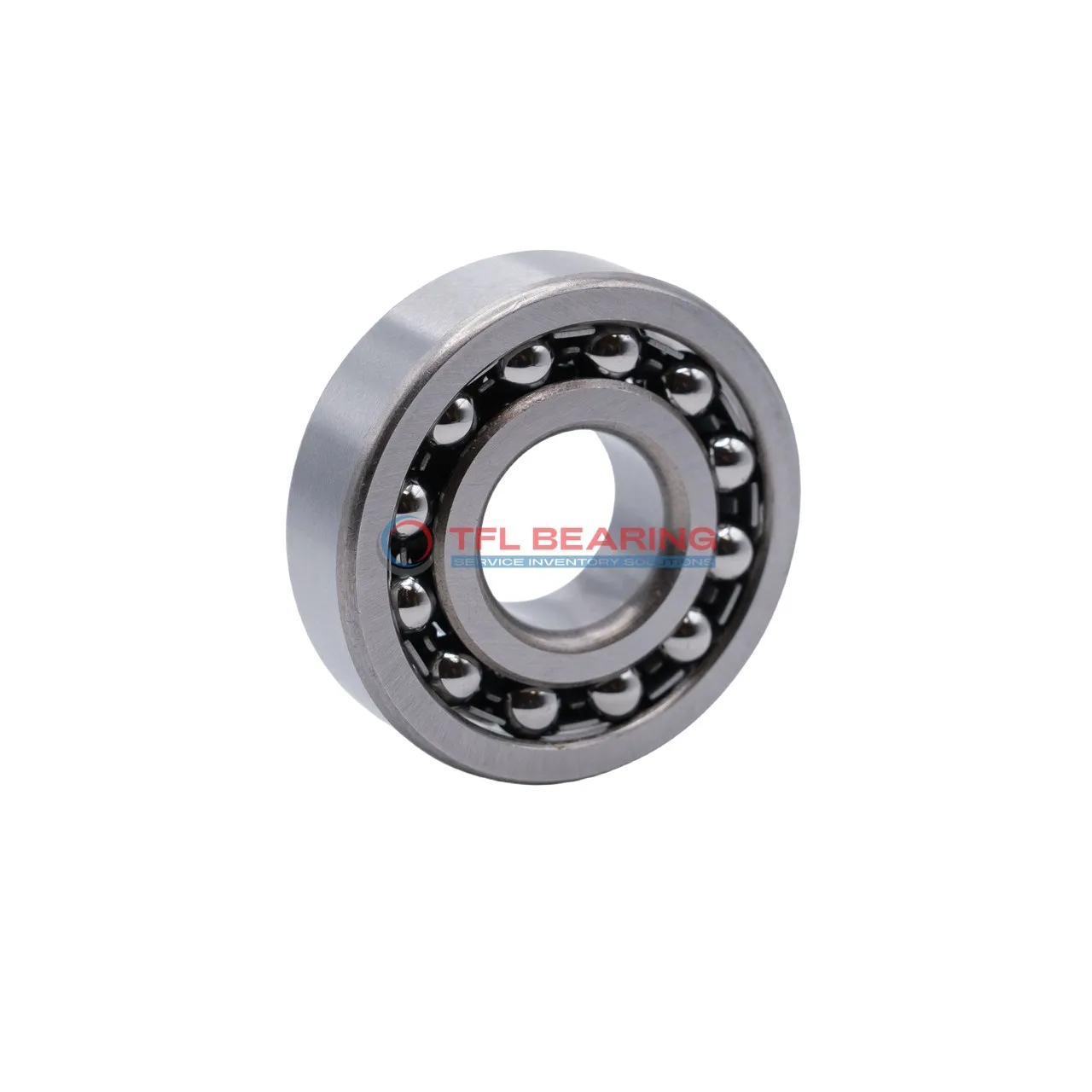

Self Aligning Ball Bearings 1204KJ

Brand: TFL Bearing Interchangeable: SKF 1204KJ 20 mm × 47 mm × 14 mm Metric Open
Part number: 1204KJ
Self Aligning Ball Bearings 1204KJ
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia20 mm
Bore Dia Tolerance-0.01mm to 0
Outer Dia47 mm
Outer Dia Tolerance-0.011mm to 0
Width14 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring28.88 mm
Internal Diameter On Outer Ring40 mm
Chamfer Dimension1 mm
Performance
Dynamic Radial Load2,858 lbf
Static Radial Load765 lbf
Temperature Range-30° to 110 °C
Max Speed20,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceCN
Weight0.12 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialSteel
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 1204KJ is a self-aligning ball bearing with a 20mm tapered bore and 47mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 2858 lbf and reaches speeds of 20,000 RPM, thanks to its double-row design.

Its open structure allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for machinery where misalignment might occur, such as conveyor systems or agricultural equipment.

Weighing only 0.12kg, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a safe and reliable choice for various industrial applications.

Features

Why Choose 1204KJ Bearing for Precision Tasks?

1204KJ Bearing features a double-row design with chrome steel rings and balls, ensuring precise radial load handling.
Its dynamic radial load capacity of 2858 lbf makes it suitable for high-performance applications.

The tapered bore design allows for easy and secure mounting, reducing installation time.
With a maximum speed of 20,000 rpm, it delivers smooth and efficient operation.

1204KJ Bearing operates in temperatures from -30° to 110°C, adapting to various working conditions.
Its steel cage maintains ball alignment, enhancing durability and reducing maintenance needs.

Application

Industrial Uses of 1204KJ Bearing
1204KJ Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments. The double-row design ensures reliable performance under radial loads in demanding environments.

In automotive applications, 1204KJ Bearing fits well in gearboxes and transmissions, providing smooth operation. Its metric sizing makes it a versatile choice for various vehicle models.

For automation equipment, 1204KJ Bearing supports robotic arms and assembly lines with its high-speed capability. The open seal design allows for easy lubrication, extending service life.

In household appliances like washing machines, 1204KJ Bearing handles radial loads efficiently. Its chrome steel construction offers durability, even with frequent use.

Medical devices such as diagnostic equipment benefit from 1204KJ Bearing’s precision. The steel cage ensures stability, crucial for accurate readings.
