RN-0.5x80 BF RN-3x23.8 BF/G2

RN-0.5×80 BF RN-3×23.8 BF/G2

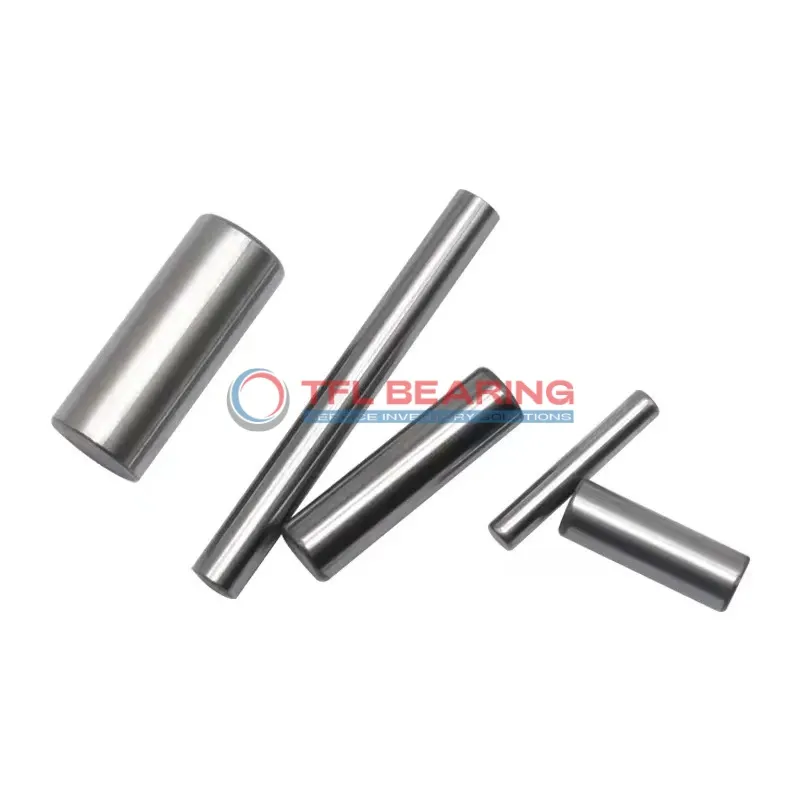

The RN-3×23.8 BF/G2 is a needle roller bearing with a 3mm diameter and 23.8mm length, crafted from high-grade chrome steel for durability. It meets G2 precision standards, ensuring smooth operation in tight spaces.

With flat ends and a roundness of just 0.5um, it fits snugly into compact assemblies. The hardness of HRC60-65 makes it resistant to wear over time.

This model is interchangeable with INA bearings, offering a reliable alternative for replacements. Ideal for applications like gear pumps or small engines where space is limited.

Compliant with RoHS standards, it’s a safe choice for various industrial uses. The precise tolerances and robust design make it a dependable option for high-performance machinery.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number RN-3x23.8 BF/G2
  • Brand TFL
  • Interchangeable INA
  • Roller Diameter 3 mm
  • Roller Length 23.8 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Material Chrome Steel
  • RoHS Compliant
  • Rating G2
  • Length Tolerance 0 to -0.33 mm
  • Hardness HRC60-65
  • Ends Type Flat
  • Roundness 0.5um
  • VDWL 2um
  • Rsmax Axial 0.8 mm
  • Rsmax Radial 0.6 mm
  • Rsmin 0.1 mm

Features

Performance Features of RN-3×23.8 BF/G2 Bearing

RN-3×23.8 BF/G2 Bearing is crafted from high-quality chrome steel, offering excellent hardness between HRC60-65.
Its precision needle rollers ensure smooth operation with a roundness of just 0.5um.

The bearing’s flat ends and tight length tolerance (0 to -0.33 mm) provide reliable alignment in compact spaces.
With a VDWL of 2um, it maintains consistent performance under varying loads.

RN-3×23.8 BF/G2 Bearing’s Rsmax axial and radial values of 0.8 mm and 0.6 mm ensure stability in demanding applications.
Its compliance with RoHS standards makes it an environmentally friendly choice.

The G2 rating confirms its high precision, suitable for applications requiring tight tolerances.
Its durable construction reduces wear, extending service life even in challenging conditions.

Application

Industrial Uses of RN-3×23.8 BF/G2 Bearing
RN-3×23.8 BF/G2 Bearing is commonly used in compact industrial gearboxes, where its needle roller design saves space while handling high radial loads. The chrome steel construction ensures durability in demanding environments like conveyor systems.

What Makes RN-3×23.8 BF/G2 Bearing a Preferred Choice?
In automotive applications, RN-3×23.8 BF/G2 Bearing fits well in transmission systems, providing smooth rotation under heavy loads. Its flat ends and precise roundness make it ideal for high-speed operations.

Built for Heavy-Duty Use: RN-3×23.8 BF/G2 Bearing
For automation equipment, RN-3×23.8 BF/G2 Bearing offers reliable performance in robotic arms and linear guides. The G2 rating ensures consistent quality for precision movements.

Medical vs Industrial: Where RN-3×23.8 BF/G2 Bearing Excels
RN-3×23.8 BF/G2 Bearing works well in medical devices like surgical tools, thanks to its high hardness and low roundness tolerance. In industrial settings, it’s equally effective in printing machinery.
