RN-0.5x159 BF RN-3X18.5 BF/G2

RN-0.5×159 BF RN-3X18.5 BF/G2

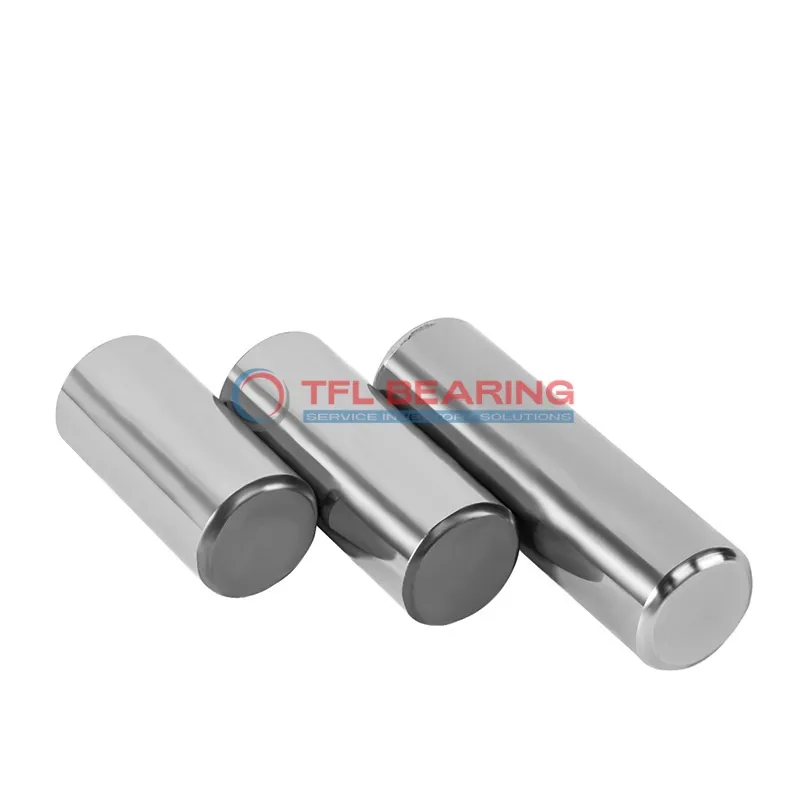

The RN-3X18.5 BF/G2 is a needle roller with a 3mm diameter and 18.5mm length, crafted from tough chrome steel. It meets G2 precision standards, ensuring reliable performance in tight spaces.

With flat ends and a roundness of just 0.5um, it rolls smoothly under radial loads. Its hardness of HRC60-65 makes it resistant to wear, even in demanding conditions.

The roller’s tight tolerances (0 to -0.33mm in length) and low surface roughness (VDWL 2um) help reduce friction. It’s interchangeable with INA models, offering flexibility for replacements.

Ideal for compact assemblies like gear pumps or small engines, where precision and durability matter. RoHS compliant for safe use in various industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number RN-3X18.5 BF/G2
  • Brand TFL
  • Interchangeable INA
  • Roller Diameter 3 mm
  • Roller Length 18.5 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Material Chrome Steel
  • RoHS Compliant
  • Rating G2
  • Length Tolerance 0 to -0.33 mm
  • Hardness HRC60-65
  • Ends Type Flat
  • Roundness 0.5um
  • VDWL 2um
  • Rsmax Axial 0.8 mm
  • Rsmax Radial 0.6 mm
  • Rsmin 0.1 mm

Features

How Does RN-3X18.5 BF/G2 Bearing Reduce Friction?

RN-3X18.5 BF/G2 Bearing features chrome steel rollers with a hardness of HRC60-65, ensuring minimal friction and wear.
The precision-ground rollers have a roundness of 0.5um, contributing to smooth and efficient operation.

Its flat ends and tight length tolerance of 0 to -0.33 mm enhance alignment, reducing unnecessary friction.
With a VDWL of 2um, RN-3X18.5 BF/G2 Bearing maintains consistent performance in various applications.

The needle roller design allows for compact installation while handling high radial loads effectively.
RN-3X18.5 BF/G2 Bearing is RoHS compliant, making it suitable for environmentally sensitive applications.

Application

Industrial Uses of RN-3X18.5 BF/G2 Bearing
RN-3X18.5 BF/G2 Bearing is commonly used in compact industrial gearboxes, where its needle roller design saves space while handling high radial loads. The chrome steel construction ensures durability in demanding environments like conveyor systems.

Where Is RN-3X18.5 BF/G2 Bearing Used?
You’ll often spot RN-3X18.5 BF/G2 Bearing in automotive transmissions, where its flat ends and precise dimensions help reduce friction. Its G2 rating makes it reliable for high-speed applications like motorcycle engines.

Built for Heavy-Duty Use: RN-3X18.5 BF/G2 Bearing
RN-3X18.5 BF/G2 Bearing excels in construction equipment, such as compact hydraulic pumps, thanks to its HRC60-65 hardness. The tight roundness tolerance (0.5µm) ensures smooth operation under heavy loads.

Medical vs Industrial: Where RN-3X18.5 BF/G2 Bearing Excels
In medical devices like dental handpieces, RN-3X18.5 BF/G2 Bearing’s small size and precision are ideal. For industrial automation, it’s a go-to for robotic arm joints due to its low VDWL (2µm).

Perfect Fit for Automation: RN-3X18.5 BF/G2 Bearing
RN-3X18.5 BF/G2 Bearing works well in 3D printers, where its axial and radial runout tolerances ensure accurate movements. The stainless steel material also resists wear in continuous-operation setups.
