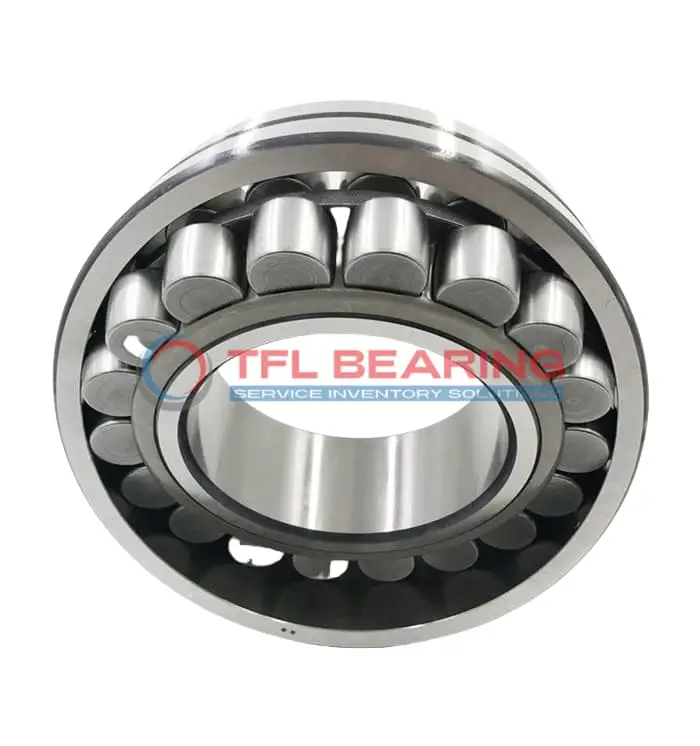

22314 E/C1 Double Row Spherical Roller Bearing

22314 E/C1 Double Row Spherical Roller Bearing

The 22314 E/C1 is a double-row spherical roller bearing with a 70mm bore and 150mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 92846 lbf and runs smoothly at speeds up to 4500 RPM.

Its open design and steel cage ensure durability, while the spherical rollers accommodate misalignment. The bearing operates in temperatures from -30°C to 200°C, making it versatile for various conditions.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are present.

Weighing 4.3kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for demanding environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22314 E/C1
  • Brand TFL
  • Interchangeable SKF
  • Size 70 x 150 x 51 mm
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 51 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 90.3 mm
  • Shoulder/Recess Dia Of Outer Ring 128 mm
  • Width Of Lubrication Groove 8.3 mm
  • Diameter Of Lubrication Hole 4.5 mm
  • Chamfer Dimension min.2.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 92846 lbf
  • Static Radial Load 96668 lbf
  • Max Speed 4500 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C1
  • RoHs Compliant
  • REACH Compliant
  • Weight 4.3 kg
  • Price （US$） 104.54

Features

Performance Features of 22314 E/C1 Bearing

22314 E/C1 Bearing is built with chrome steel rings and rollers, offering excellent resistance to combined loads.
Its dynamic radial load capacity reaches 92,846 lbf, ensuring reliable performance in heavy-duty applications.

The double-row spherical roller design allows for slight misalignment, reducing stress on the bearing.
With a maximum speed of 4,500 rpm, it maintains efficiency under demanding conditions.

22314 E/C1 Bearing operates in temperatures from -30° to 200°C, suitable for varied environments.
The C1 radial clearance ensures smooth operation, minimising friction and wear.

Steel cage construction keeps rollers aligned, enhancing durability and service life.
Its open design simplifies lubrication, making maintenance straightforward.

Application

Industrial Uses of 22314 E/C1 Bearing
22314 E/C1 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. The spherical roller construction helps compensate for misalignment, reducing wear in demanding environments.

Where Is 22314 E/C1 Bearing Used?
You’ll often find 22314 E/C1 Bearing in conveyor systems and gearboxes, where its high dynamic load capacity ensures reliable performance. The open design simplifies lubrication, making it suitable for continuous operation in industrial settings.

Built for Heavy-Duty Use: 22314 E/C1 Bearing
22314 E/C1 Bearing excels in mining equipment, thanks to its robust chrome steel construction and ability to withstand harsh conditions. The C1 radial clearance provides optimal performance under varying temperatures and loads.

Automotive vs Aerospace: Applications of 22314 E/C1 Bearing
In automotive applications, 22314 E/C1 Bearing supports drivetrain components, offering durability under combined loads. For aerospace, its high-speed capability and temperature resistance make it useful in auxiliary systems.

Key Fields for 22314 E/C1 Bearing
22314 E/C1 Bearing is ideal for wind turbines, where its spherical rollers handle dynamic loads and misalignment. The steel cage ensures long service life, even in high-vibration environments.
