RE Crossed Roller Bearings RE50040

RE Crossed Roller Bearings RE50040

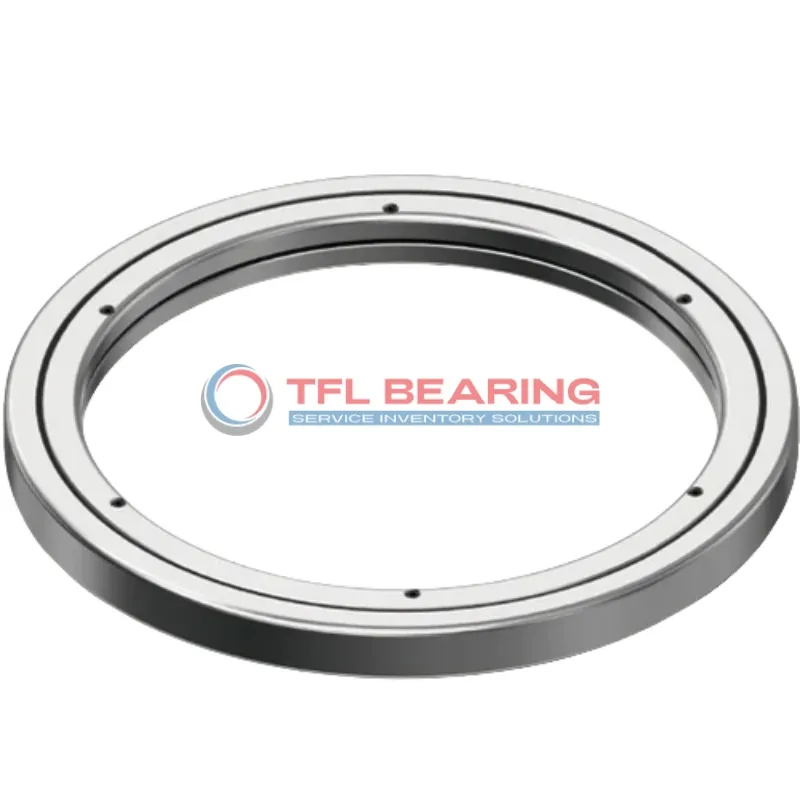

The RE50040 is a crossed roller bearing with a 500mm bore and 600mm outer diameter, designed for combined loads. Made from sturdy steel, it offers a basic load rating of 239 kN, making it suitable for heavy-duty applications.

Its open design allows for easy lubrication, with greasing holes of 6mm and 3mm for convenient maintenance. The bearing operates smoothly in temperatures ranging from 0°C to 110°C.

With a press-fit shaft mount, it stays securely in place during operation. The ABEC5 rating ensures reliable precision, and higher grades (ABEC7/9) are available for more demanding needs.

Ideal for industrial machinery or robotics, this bearing is RoHS and REACH compliant. Weighing 26kg, it’s robust yet manageable for its size.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number RE50040
  • Brand TFL
  • Size 500 mm x 600 mm x 40 mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Crossed
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 500 mm
  • Outer Dia 600 mm
  • Width 40 mm
  • Greasing Hole(a) 6 mm
  • Greasing Hole(b) 3 mm
  • R(min) 2.5 mm
  • Shoulder Height Ds(max) 526 mm
  • Shoulder Height Dh(min) 572 mm
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Basic Load Rating C 239 kN
  • Basic Load Rating Co 607 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 26 Kg

Features

How Is RE50040 Bearing Engineered for Reliability?

RE50040 Bearing features a crossed roller design, providing excellent load distribution for combined loads.
Its steel rings and rollers ensure durability, with a basic load rating of 239 kN for dynamic applications.

The press-fit shaft mount design simplifies installation, while the open seal type allows for easy lubrication.
With a temperature range of 0-230°F, RE50040 Bearing performs reliably in various operating conditions.

The ABEC5 precision rating ensures smooth operation, making it suitable for high-accuracy applications.
Weighing 26 kg, it balances strength and practicality for industrial use.

Application

Industrial Uses of RE50040 Bearing
RE50040 Bearing is commonly used in heavy-duty machinery like rotary tables and indexing devices, where its crossed roller design handles combined loads efficiently. The steel construction ensures durability in demanding industrial environments.

What Makes RE50040 Bearing a Preferred Choice?
With a press-fit shaft mount and ABEC5 precision, RE50040 Bearing is ideal for automation equipment requiring stable rotation. Its open design simplifies lubrication, extending service life in continuous operations.

Built for Heavy-Duty Use: RE50040 Bearing
This bearing excels in applications like robotic arms and CNC machinery, where its high load capacity (239 kN) supports precise movements. The wide temperature range (0-230°F) adds versatility for various working conditions.

Automotive vs Aerospace: Applications of RE50040 Bearing
In automotive testing rigs, RE50040 Bearing provides reliable performance under dynamic loads. For aerospace tooling, its ABEC5/7/9 options meet stringent precision requirements.
