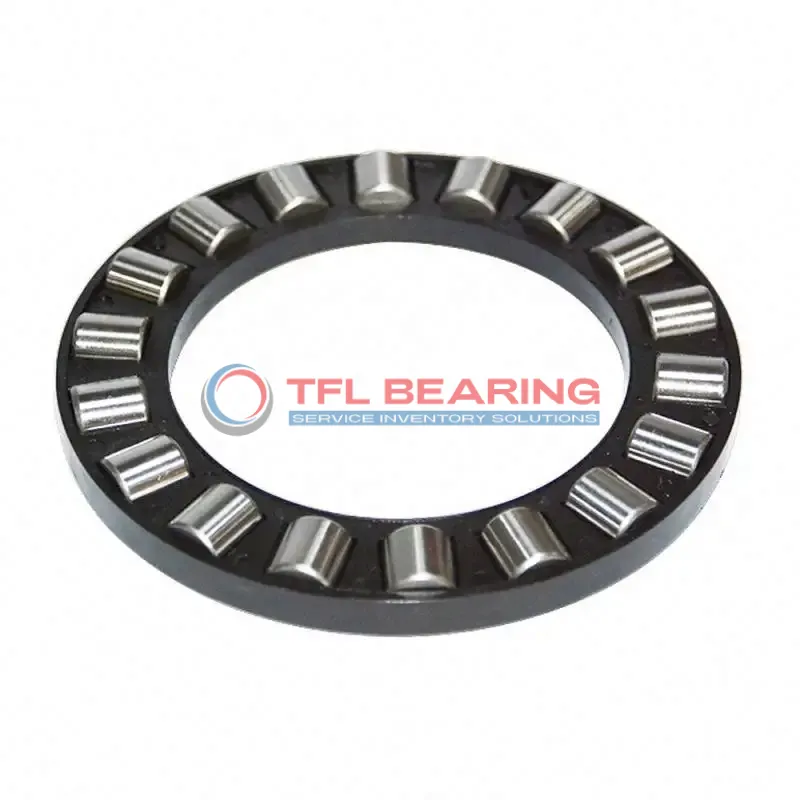

Single Row Cylindrical Roller Thrust Bearings assembly K 81110 TN

Single Row Cylindrical Roller Thrust Bearings assembly K 81110 TN

The K 81110 TN is a compact single-row cylindrical roller thrust bearing, measuring 50mm by 70mm by 6mm. Made from chrome steel, it handles heavy thrust loads up to 10688 lbf and spins smoothly at speeds up to 4300 RPM.

Its glass fibre reinforced PA66 cage ensures durability and reduces friction, while the precise tolerances provide reliable performance. The bearing operates well in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like gearboxes or industrial machinery where high thrust loads are common.

Weighing just 0.038kg, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K 81110 TN
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 1
  • Bore Dia 50 mm
  • Bore Dia Tolerance +0.05mm to +0.21mm
  • Outer Dia 70 mm
  • Outer Dia Tolerance -0.36mm to -0.82mm
  • Diameter Roller 6 mm
  • Raceway Diameter (min.) Roller And Cage Thrust Assembly 52 mm
  • Raceway Diameter (max.) Roller And Cage Thrust Assembly 68 mm
  • Roller Material Chrome Steel
  • Cage Material Glass fibre reinforced PA66 cage
  • Dynamic Radial Load 10688 lbf
  • Static Radial Load 37350 lbf
  • Max Speed 4300 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.038 kg
  • Shaft Washer WS 81110
  • Housing Washer GS 81110
  • Universal Washer LS 5070

Features

How Is K 81110 TN Bearing Engineered for Reliability?

K 81110 TN Bearing features a chrome steel roller design, ensuring strong resistance to heavy thrust loads.
Its dynamic radial load capacity reaches 10688 lbf, making it suitable for demanding applications.

The glass fibre reinforced PA66 cage keeps the rollers aligned, reducing wear and extending service life.
With a maximum speed of 4300 rpm, it balances durability and efficiency in various conditions.

K 81110 TN Bearing operates effectively in temperatures ranging from -30° to 110°C.
Its precise dimensions and tolerances ensure smooth performance in thrust applications.

Application

Industrial Uses of K 81110 TN Bearing
K 81110 TN Bearing is commonly used in industrial settings, especially in machinery that handles heavy axial loads, like hydraulic pumps and compressors. Its cylindrical roller design ensures efficient load distribution, reducing wear over time.

Where Is K 81110 TN Bearing Used?
In automotive applications, K 81110 TN Bearing can be found in gearboxes and steering systems, where its high dynamic load capacity ensures reliable performance. The glass fibre reinforced cage adds durability in high-speed conditions.

Built for Heavy-Duty Use: K 81110 TN Bearing
For automation equipment, K 81110 TN Bearing provides smooth operation in robotic arms and conveyor systems. Its compact size and metric measurements make it easy to integrate into various designs.

Medical vs Industrial: Where K 81110 TN Bearing Excels
While K 81110 TN Bearing is robust enough for industrial machinery, its precision also suits medical devices like diagnostic equipment. The chrome steel rollers ensure long-lasting performance in critical applications.

What Makes K 81110 TN Bearing a Preferred Choice?
In consumer electronics, K 81110 TN Bearing is ideal for high-precision devices like printers and scanners. Its temperature resistance and low weight make it suitable for compact, heat-sensitive environments.
