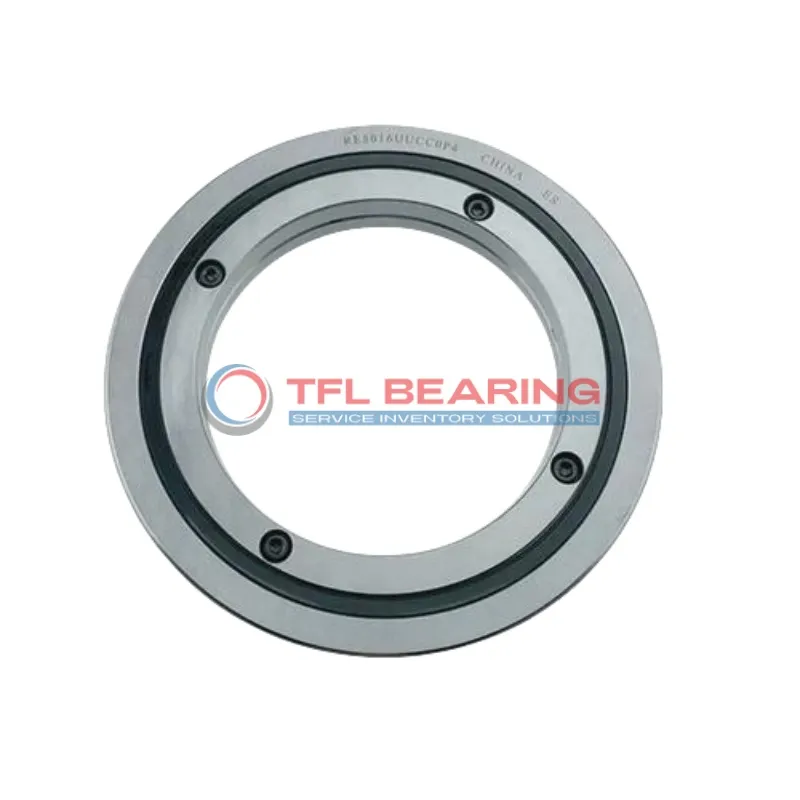

RE Crossed Roller Bearings RE10016UU

RE Crossed Roller Bearings RE10016UU

The RE10016UU is a crossed roller bearing measuring 100mm by 140mm by 16mm, crafted from sturdy steel for reliable performance. It supports combined loads with a basic load rating of 31.7 kN, making it suitable for demanding applications.

Featuring double seals, this bearing keeps contaminants out while retaining lubrication. Its press-fit shaft mount ensures a secure installation, and the 3mm greasing hole simplifies maintenance.

With a temperature range of 0°F to 230°F, it performs well in various environments. The ABEC5 rating (also available in ABEC7/9) ensures smooth operation.

Ideal for precision machinery like robotics or medical equipment, this 0.83kg bearing complies with RoHS and REACH standards for safety and environmental friendliness.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number RE10016UU
  • Brand TFL
  • Size 100 mm x 140 mm x 16 mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Crossed
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Double Seal
  • Bore Dia 100 mm
  • Outer Dia 140 mm
  • Width 16 mm
  • Greasing Hole(a) 3 mm
  • Greasing Hole(b) 1.6 mm
  • R(min) 1 mm
  • Shoulder Height Ds(max) 109 mm
  • Shoulder Height Dh(min) 131 mm
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Basic Load Rating C 31.7 kN
  • Basic Load Rating Co 48.6 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.83 Kg

Features

How Is RE10016UU Bearing Engineered for Reliability?

RE10016UU Bearing features a crossed roller design, providing stability and precision under combined loads.
Its steel rings and rollers ensure durability, with a basic load rating of 31.7 kN for dynamic applications.

The double-sealed construction protects against contaminants, extending the bearing’s service life.
With a temperature range of 0-230°F, RE10016UU Bearing performs reliably in various conditions.

Press-fit shaft mounting simplifies installation, reducing setup time and effort.
ABEC5 precision ensures smooth operation, with options for higher ABEC7/9 ratings if needed.

Application

Industrial Uses of RE10016UU Bearing
RE10016UU Bearing is commonly used in industrial automation, particularly in robotic arms and CNC machines where precise rotational movement is needed.
Its crossed roller design handles combined loads efficiently, making it suitable for high-accuracy applications.

Where Is RE10016UU Bearing Used?
You’ll often find RE10016UU Bearing in medical imaging equipment, where its double seals help maintain cleanliness and precision.
The steel construction ensures durability even in demanding environments.

Built for Heavy-Duty Use: RE10016UU Bearing
RE10016UU Bearing excels in packaging machinery, providing smooth operation under constant load.
The press-fit shaft mount simplifies installation, reducing downtime during maintenance.

Automotive vs Aerospace: Applications of RE10016UU Bearing
In automotive testing rigs, RE10016UU Bearing offers reliable performance for dynamic load simulations.
For aerospace applications, its ABEC5 rating ensures the precision required for sensitive instrumentation.

Perfect Fit for Automation: RE10016UU Bearing
RE10016UU Bearing is a go-to choice for 3D printers, where its compact size and accuracy are key.
The grease lubrication system keeps it running smoothly over long periods.
