RB Crossed Roller Bearings RB25025

RB Crossed Roller Bearings RB25025

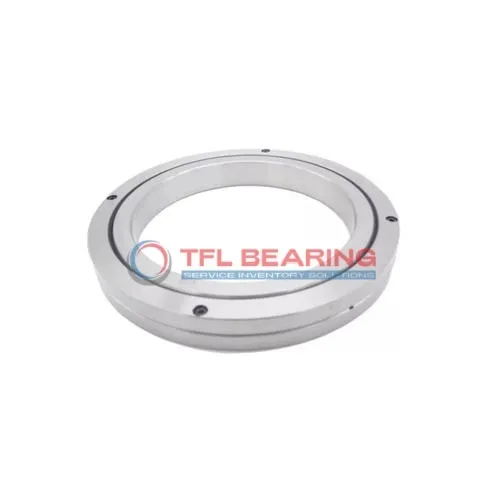

The RB25025 is a crossed roller bearing with a 250mm bore and 310mm outer diameter, crafted from sturdy steel for reliable performance. It handles combined loads up to 69.3 kN and is designed for precision applications.

Its single-row construction and open design make it easy to maintain, while the press-fit shaft mount ensures a secure installation. The bearing operates smoothly in temperatures from 0°C to 110°C.

With an ABEC5 rating (also available in higher precision ABEC7/9), it’s ideal for high-accuracy machinery like robotics or CNC equipment. The compact 25mm width saves space without sacrificing strength.

Weighing 5kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for industrial use. Regular lubrication will keep it running smoothly for years.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number RB25025
  • Brand TFL
  • size 250 mm x 310 mm x 25 mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Crossed
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 250 mm
  • Outer Dia 310 mm
  • Width 25 mm
  • R(min) 2.5 mm
  • Shoulder Height Ds(max) 265 mm
  • Shoulder Height Dh(min) 290 mm
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Basic Load Rating C 69.3 kN
  • Basic Load Rating Co 150 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 5 Kg

Features

How Is RB25025 Bearing Engineered for Reliability?

RB25025 Bearing features a robust steel construction, designed to handle combined loads with ease.
Its crossed roller design ensures high precision and stability, even in demanding applications.

With a basic load rating of 69.3 kN, RB25025 Bearing offers reliable performance under heavy loads.
The press-fit shaft mount type provides a secure installation, reducing the risk of slippage.

RB25025 Bearing operates efficiently within a temperature range of 0 to 230°F.
Its open design allows for easy lubrication, ensuring smooth operation over time.

The ABEC5 rating (available in ABEC7/9) guarantees precision for high-speed applications.
Weighing just 5 kg, it balances durability and ease of handling.

Application

Industrial Uses of RB25025 Bearing
RB25025 Bearing is commonly used in machine tools, where its crossed roller design provides excellent rigidity and precision for rotary tables and indexing heads. The open construction allows for easy lubrication, ensuring long service life in demanding conditions.

Where Is RB25025 Bearing Used?
You’ll often find RB25025 Bearing in robotics, particularly in articulated arms that require smooth rotational movement. Its combined load capacity makes it ideal for handling both radial and axial forces in automated systems.

Built for Heavy-Duty Use: RB25025 Bearing
This bearing works well in packaging machinery, where its steel construction withstands constant start-stop cycles. The press fit mounting ensures secure attachment during high-speed operations.

Automotive vs Aerospace: Applications of RB25025 Bearing
In automotive testing equipment, RB25025 Bearing provides accurate positioning for measurement devices. For aerospace applications, its ABEC5 rating offers sufficient precision for auxiliary flight control systems.

Perfect Fit for Automation: RB25025 Bearing
RB25025 Bearing shines in CNC machinery, where its low friction characteristics improve positioning accuracy. The 25mm width makes it suitable for compact spaces without sacrificing load capacity.
