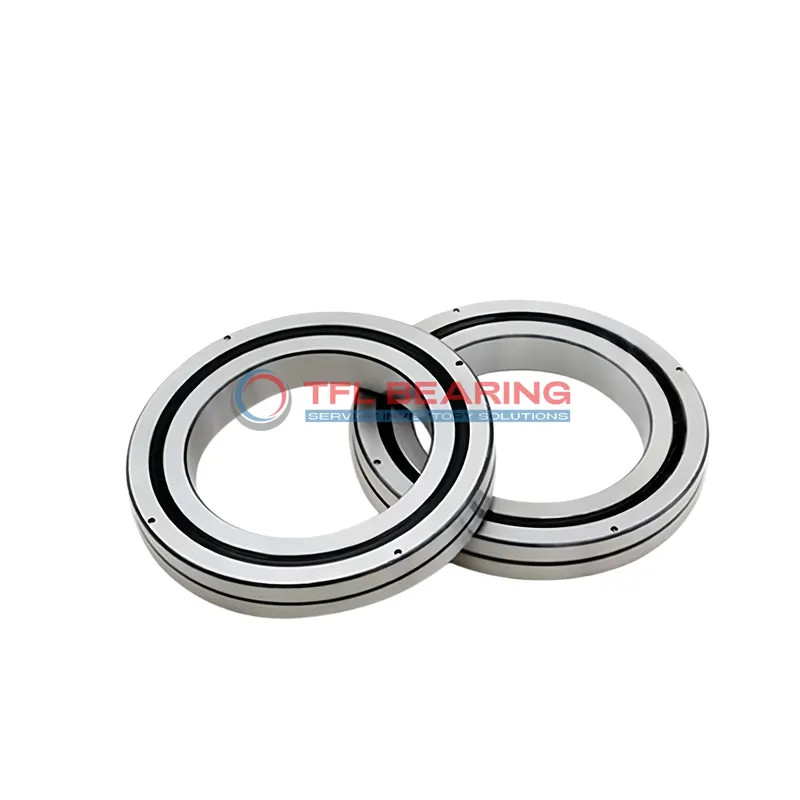

RA Crossed Roller Bearings RA5008C

RA Crossed Roller Bearings RA5008C

The RA5008C is a compact crossed roller bearing with a 50mm bore and 66mm outer diameter, measuring just 8mm wide. Made from sturdy steel, it handles combined loads up to 5.1 kN with ease.

Its single-row design offers precise motion control, while the open construction allows for straightforward lubrication. The bearing operates smoothly in temperatures from 0°C to 110°C.

With a press-fit shaft mount, it stays securely in place during use. The ABEC5 rating ensures reliable performance, though higher precision options (ABEC7/9) are available.

Ideal for rotary tables or robotic arms where space is limited but precision matters. Compliant with RoHS and REACH standards, it weighs a mere 0.08kg for easy handling.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number RA5008C
  • Brand TFL
  • Size 50 mm x 66 mm x 8 mm
  • Bore Dia 50 mm
  • Outer Dia 66 mm
  • Width 8 mm
  • R(min) 0.5 mm
  • Shoulder Height Ds(max) 53.5 mm
  • Shoulder Height Dh(min) 60.5 mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Crossed
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Basic Load Rating C 5.1 kN
  • Basic Load Rating Co 7.19 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.08 Kg

Features

How Is RA5008C Bearing Engineered for Reliability?

RA5008C Bearing features a crossed roller design, providing excellent load capacity for combined radial and axial loads.
Its steel rings and rollers ensure durability, with a basic load rating of 5.1 kN for dynamic applications.

The press-fit shaft mount simplifies installation, while the open design allows for easy lubrication.
RA5008C Bearing operates in temperatures from 0 to 230°F, making it suitable for various industrial environments.

With an ABEC5 precision rating, it delivers consistent performance in high-accuracy tasks.
The compact 8 mm width and 50 mm bore make it ideal for space-constrained applications.

Application

Industrial Uses of RA5008C Bearing
RA5008C Bearing is commonly used in machine tools, where its crossed roller design provides excellent rigidity and precision for rotary tables and indexing heads. The compact 8mm width makes it ideal for space-constrained applications.

In robotics, RA5008C Bearing ensures smooth movement in articulated arms and joints, thanks to its ability to handle combined loads. The steel construction offers durability for continuous operation in automated systems.

For medical imaging devices, RA5008C Bearing’s high precision and low friction contribute to accurate positioning of scanning components. The ABEC5 rating ensures consistent performance in sensitive equipment.

RA5008C Bearing also fits well in packaging machinery, where its press-fit mounting simplifies installation on rotating shafts. The open design allows for easy relubrication to maintain optimal performance over time.

In semiconductor manufacturing, RA5008C Bearing supports precise linear motion stages due to its minimal deflection under load. The temperature range up to 230°F makes it suitable for various industrial environments.
