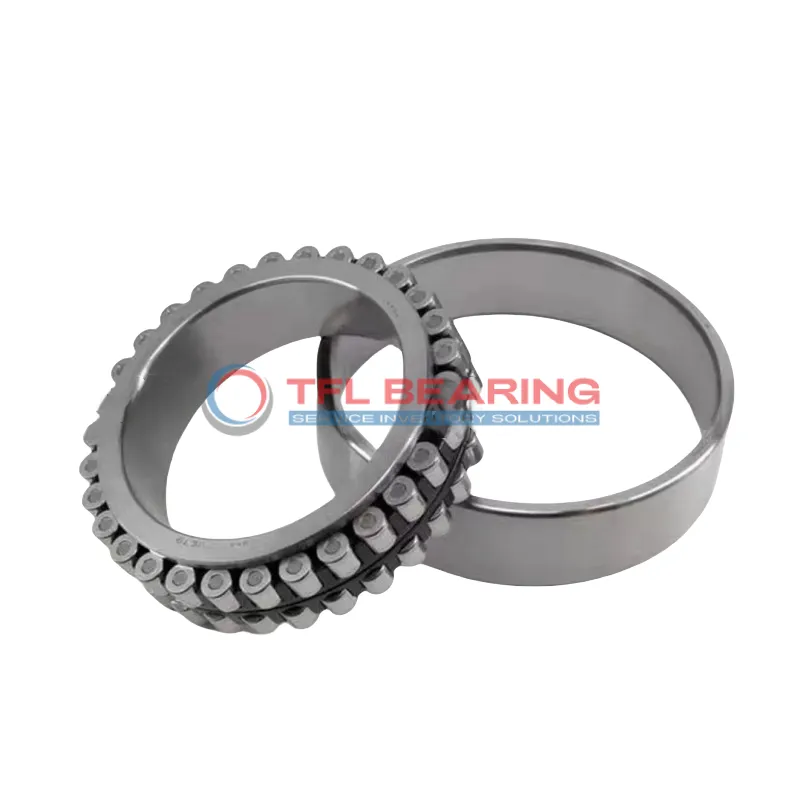

Double Row Cylindrical Roller Bearings BC2B 326137/HB1

Double Row Cylindrical Roller Bearings BC2B 326137/HB1

The BC2B 326137/HB1 is a double-row cylindrical roller bearing with a 420mm bore and 580mm outer diameter, designed for heavy-duty applications. It handles combined loads, with a dynamic radial load capacity of 535500 lbf and a static radial load of 1192500 lbf.

Its robust construction allows it to spin at speeds up to 1000 RPM, making it suitable for high-performance machinery. The bearing can operate in temperatures ranging from -30°C to 110°C, ensuring reliability in various environments.

The chamfered edges on both inner and outer rings (4mm) facilitate easier installation and alignment. It’s compatible with SKF bearings, offering a practical replacement option.

Ideal for industrial equipment like gearboxes or large rotating machinery, this bearing is lubricated with grease or oil for smooth operation. Compliant with RoHS and REACH standards, it’s a dependable choice for demanding settings.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BC2B 326137/HB1
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 420 mm
  • Outer Dia 580 mm
  • Width 130mm
  • Chamfer Dimension Outer Ring(r1,2)(min.) 4 mm
  • Chamfer Dimension Inner Ring(r3,4)(min.) 4 mm
  • Permissible Axial Displacement(max.) 4.4 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Dynamic Radial Load 535500 lbf
  • Static Radial Load 1192500 lbf
  • Max Speed 1000 rpm
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant

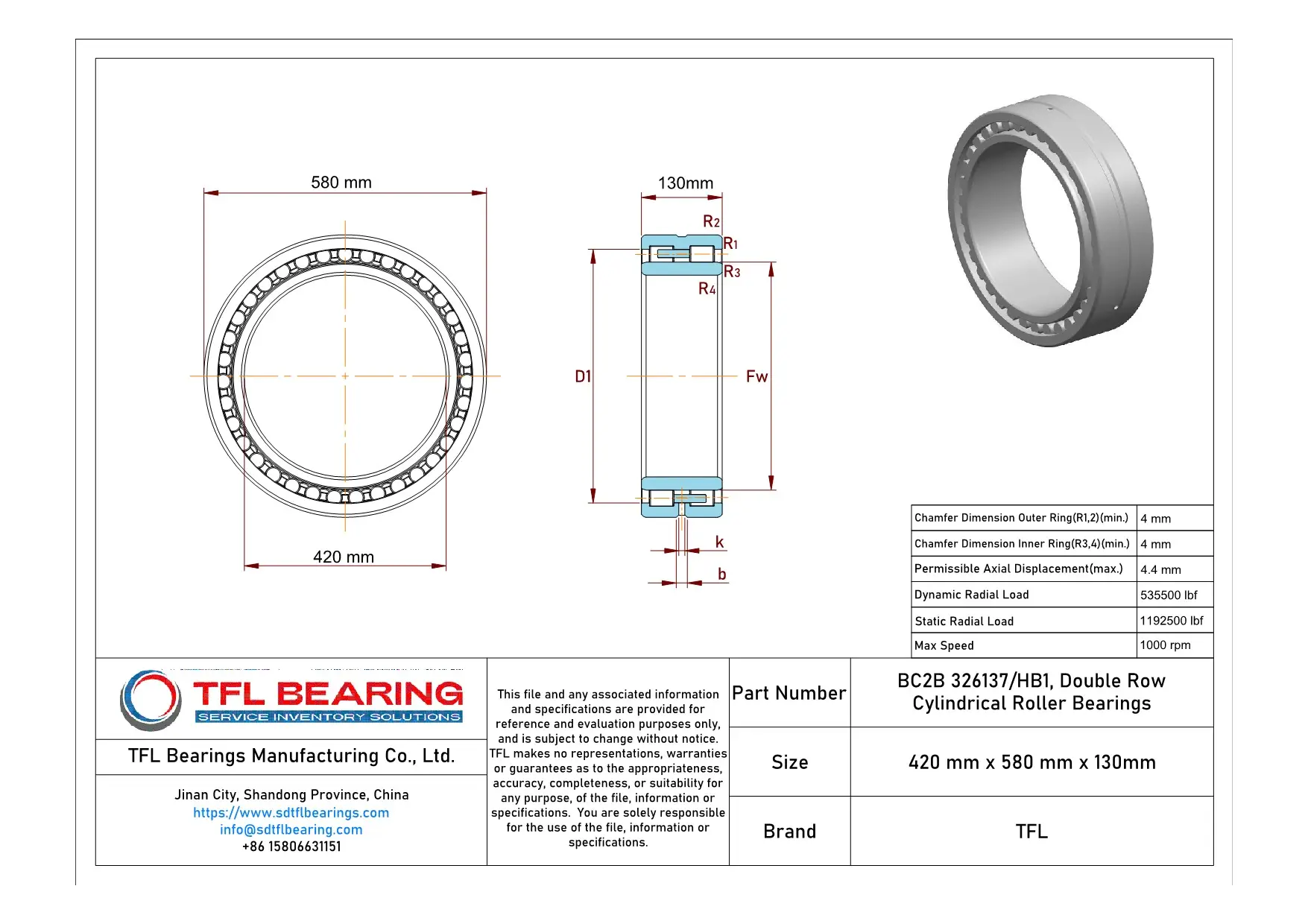

Double Row Cylindrical Roller Bearings BC2B 326137/HB1 dimension drawing
Download DWG Download PDF

Features

Performance Features of BC2B 326137/HB1 Bearing

BC2B 326137/HB1 Bearing is built for combined load applications, offering a dynamic radial load capacity of 535,500 lbf.
Its double-row cylindrical roller design ensures stability and efficient load distribution.
The bearing operates smoothly at speeds up to 1,000 rpm, making it suitable for high-performance machinery.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

Application

Industrial Uses of BC2B 326137/HB1 Bearing
BC2B 326137/HB1 Bearing is commonly used in heavy machinery like rolling mills and large gearboxes, where its double-row design handles both radial and axial loads efficiently. The generous load capacity makes it suitable for high-demand industrial settings.

What Makes BC2B 326137/HB1 Bearing a Preferred Choice?
In wind turbine systems, BC2B 326137/HB1 Bearing provides reliable support for rotor shafts, thanks to its robust construction and tolerance for axial displacement. The compatibility with both grease and oil lubrication adds to its versatility.

Built for Heavy-Duty Use: BC2B 326137/HB1 Bearing
This bearing excels in mining equipment, where its large bore and outer diameter withstand extreme loads and harsh conditions. The cylindrical roller design ensures smooth operation even under combined stress.

Automotive vs Aerospace: Applications of BC2B 326137/HB1 Bearing
While BC2B 326137/HB1 Bearing is too large for most automotive uses, it finds niche roles in aerospace ground support equipment. Its high static radial load capacity makes it ideal for heavy lifting applications.

Perfect Fit for Automation: BC2B 326137/HB1 Bearing
In automated production lines, BC2B 326137/HB1 Bearing supports large rotating assemblies with precision. The metric dimensions ensure easy integration with European-designed machinery.
