One Way Bearing HFL3530

One Way Bearing HFL3530

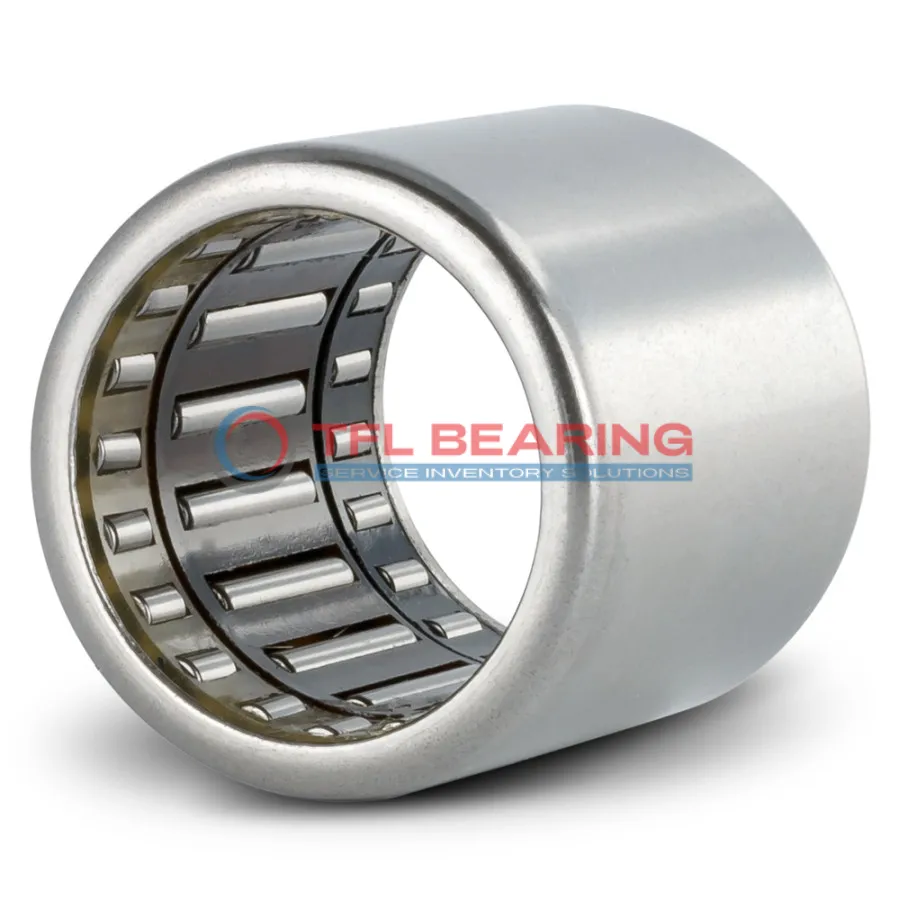

The HFL3530 is a one-way needle bearing with a 35mm bore and 42mm outer diameter, crafted from sturdy steel for reliable performance. It supports torque up to 121 Nm and operates smoothly at speeds up to 3900 RPM.
Its triple-row needle design ensures even load distribution, while the open seal allows for easy lubrication. The press-fit shaft mount provides a secure installation.
This bearing is ideal for applications like conveyor systems or machinery where one-directional movement is needed. It works in temperatures from -30°C to 110°C.
Weighing just 58g, it’s lightweight yet durable. Compliant with RoHS standards, it’s a practical choice for replacements, interchangeable with INA models.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HFL3530
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 35 mm
  • Outer Dia 42 mm
  • Width 30 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Triple Row
  • Knurled No
  • Seal Type Open
  • Series HFL Series
  • Ring Material Steel
  • Cage Material Steel
  • Needle Material Steel
  • Spring Material Steel
  • Max Speed 3900 rpm
  • Torque Capacity 121 Nm
  • Lubrication Lubricated
  • Shaft Mount Type Press Fit
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Weight 58 g

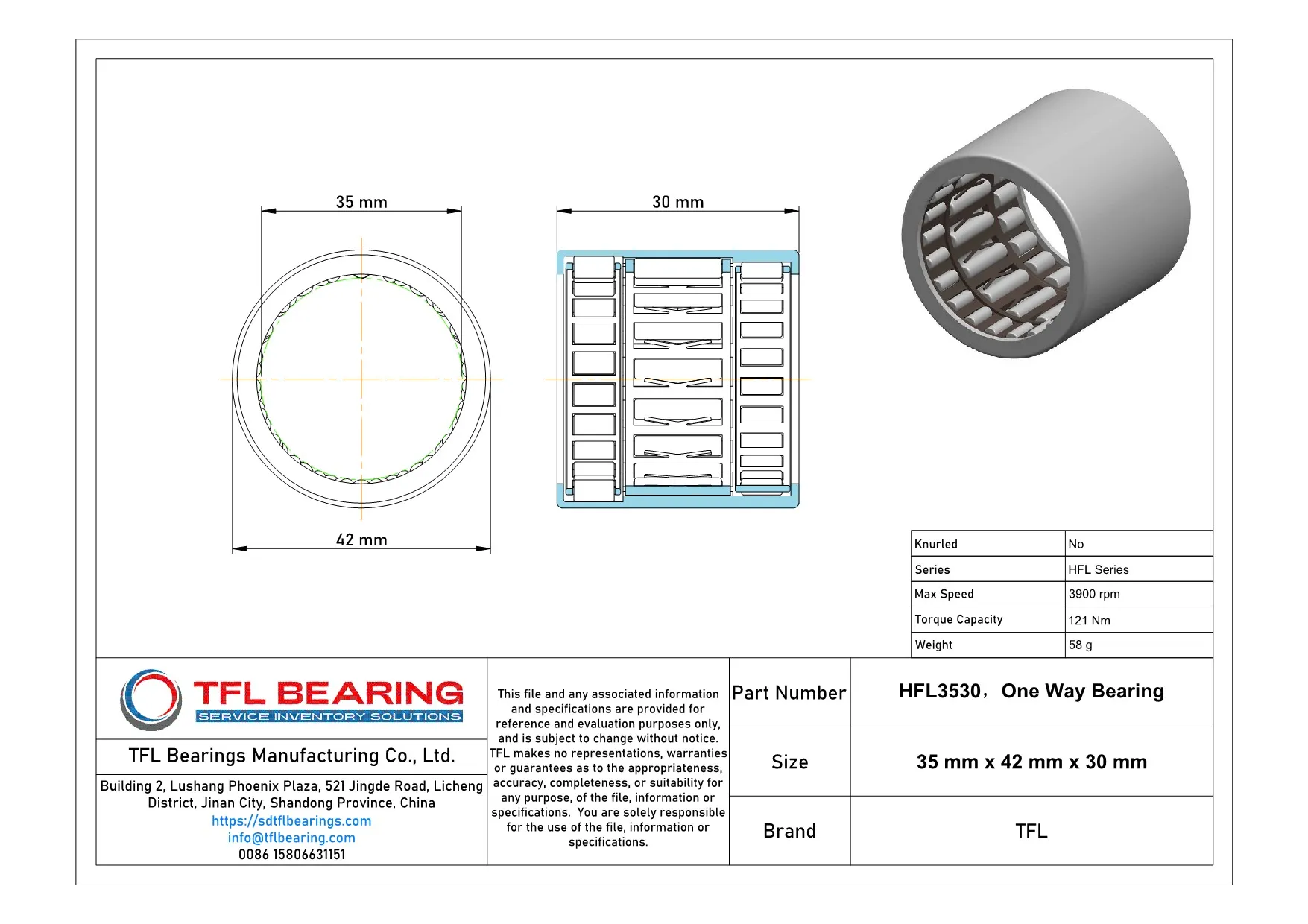

One Way Bearing HFL3530 dimension drawing
Download DWG Download PDF

Features

Performance Features of HFL3530 Bearing
HFL3530 Bearing is built with a triple-row needle design, offering high torque capacity up to 121 Nm.
Its steel construction ensures durability and reliable performance in various applications.
The open seal type allows for easy lubrication, maintaining smooth operation over time.
With a maximum speed of 3,900 rpm, it balances efficiency and load-handling capability.
HFL3530 Bearing operates effectively in temperatures ranging from -30° to 110°C.
Its press-fit shaft mount simplifies installation, reducing downtime and maintenance efforts.

Application

Essential Roles of HFL3530 Bearing
HFL3530 Bearing is commonly used in industrial machinery, especially in conveyor systems where its one-way rotation feature prevents backdriving. The open design and steel construction make it durable for continuous operation.
In automotive applications, HFL3530 Bearing fits well in gearbox mechanisms, ensuring smooth torque transmission. Its press-fit mounting simplifies installation in compact spaces.
For automation equipment, HFL3530 Bearing’s needle roller design provides reliable performance in robotic arms. The triple-row construction handles higher loads without compromising speed.
In consumer electronics like printers, HFL3530 Bearing’s lubricated design ensures quiet operation. Its metric sizing makes it compatible with various European and Asian models.
Medical devices benefit from HFL3530 Bearing’s precise one-way motion control, ideal for surgical tools. The steel cage and needles offer long-lasting performance in sterile environments.
