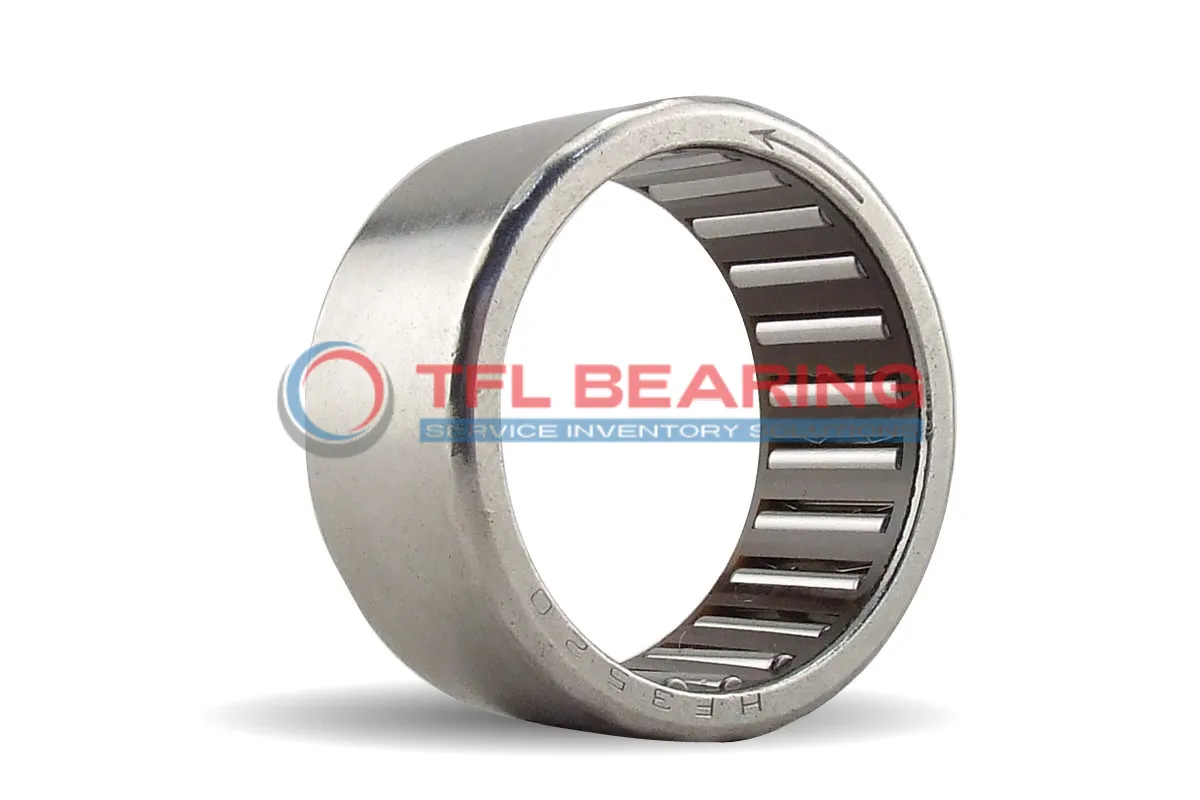

One Way Bearing HF1816

One Way Bearing HF1816

The HF1816 is a one-way needle bearing with an 18mm bore and 24mm outer diameter, crafted from sturdy steel for reliable performance. It supports a torque capacity of 24.1 Nm and spins smoothly at speeds up to 7500 RPM.
Its open design allows easy lubrication, while the steel cage and needles ensure durability. The press-fit shaft mount provides a secure installation for hassle-free use.
This bearing operates efficiently in temperatures ranging from -30°C to 110°C. It’s interchangeable with INA bearings, making it a practical choice for replacements.
Ideal for applications like conveyor systems or machinery where one-directional rotation is needed. Weighing just 16g, it’s lightweight yet robust for its size. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HF1816
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 18 mm
  • Outer Dia 24 mm
  • Width 16 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Knurled No
  • Seal Type Open
  • Series HF Series
  • Ring Material Steel
  • Cage Material Steel
  • Needle Material Steel
  • Spring Material Steel
  • Max Speed 7500 rpm
  • Torque Capacity 24.1 Nm
  • Lubrication Lubricated
  • Shaft Mount Type Press Fit
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Weight 16 g

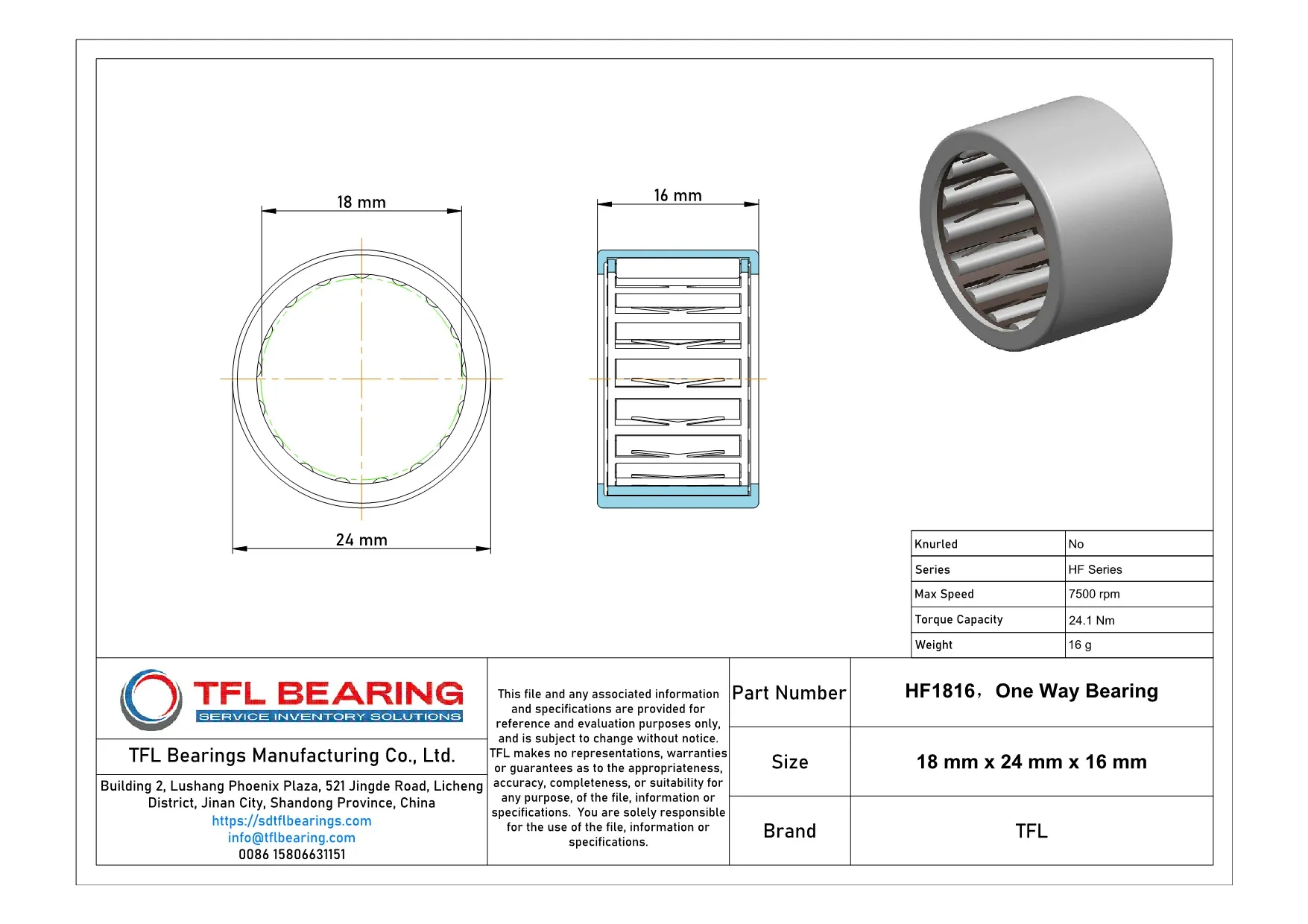

One Way Bearing HF1816 dimension drawing
Download DWG Download PDF

Features

How Does HF1816 Bearing Handle High Torque?
HF1816 Bearing is built with steel rings and needles, offering strong torque capacity up to 24.1 Nm.
Its press-fit shaft mount ensures secure installation, reducing slippage during operation.
The open design allows for easy lubrication, maintaining smooth performance even at high speeds.
With a maximum speed of 7,500 rpm, it suits applications requiring both power and precision.

Application

Key Fields for HF1816 Bearing
HF1816 Bearing is commonly used in industrial machinery where one-way rotation is needed, such as conveyor systems and indexing tables. Its open design and steel construction make it durable for continuous operation.
In automotive applications, HF1816 Bearing fits well in gearbox mechanisms and starter motors, ensuring smooth one-directional movement. The press-fit mounting simplifies installation in tight spaces.
For automation projects, HF1816 Bearing works reliably in robotic arms and assembly line equipment. Its high torque capacity handles frequent start-stop cycles without compromising performance.
In consumer electronics, HF1816 Bearing can be found in printers and small appliances, where its compact size and precision are advantageous. The lubricated design ensures quiet operation over time.
Medical devices like centrifuges benefit from HF1816 Bearing’s consistent one-way motion. The steel needle rollers provide stability for sensitive laboratory equipment.
