One Way Bearing EWC0812A

One Way Bearing EWC0812A

The EWC0812A is a one-way needle bearing with an 8mm bore and 14.2mm outer diameter, crafted from sturdy steel. It supports a torque capacity of 1.18 Nm and operates smoothly in temperatures from -30°C to 110°C.
Its open design and press-fit shaft mount make installation straightforward, while the steel cage and needles ensure durability. The plastic spring adds a lightweight yet reliable touch.
This bearing is interchangeable with INA models, offering a practical replacement option. Ideal for applications like conveyor systems or small machinery where one-way rotation is needed.
Weighing just 5.8g, it’s compact and easy to handle. Compliant with RoHS standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number EWC0812A
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 8 mm
  • Outer Dia 14.2 mm
  • Width 15 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Seal Type Open
  • Series EWC Series
  • Ring Material Steel
  • Cage Material Steel
  • Needle Material Steel
  • Spring Material Plastic
  • Torque Capacity 1.18 Nm
  • Lubrication Lubricated
  • Shaft Mount Type Press Fit
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Weight 5.8 g

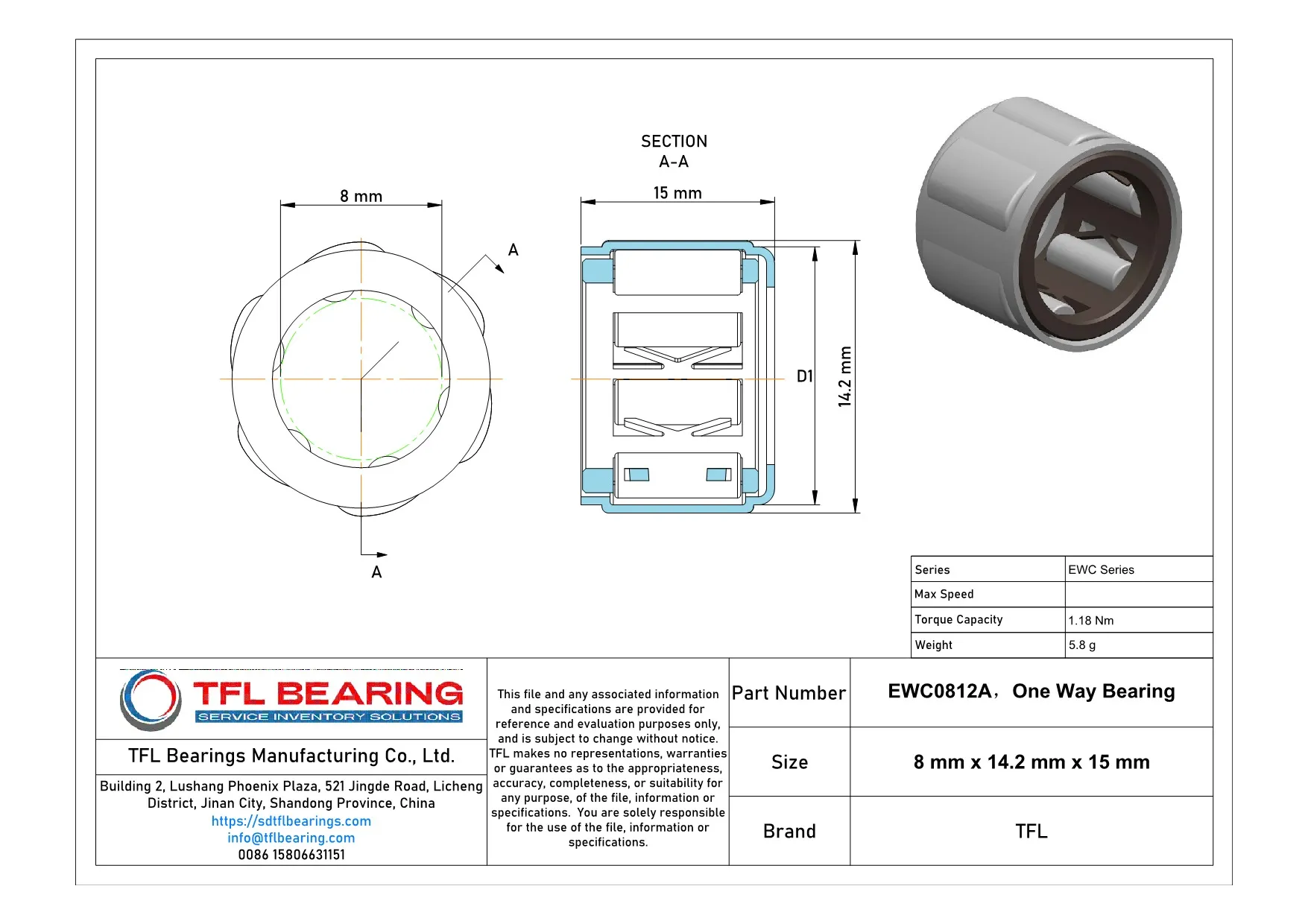

One Way Bearing EWC0812A dimension drawing
Download DWG Download PDF

Features

Why Choose EWC0812A Bearing for Precision Tasks?
EWC0812A Bearing features a steel construction, ensuring durability and reliable performance in precision applications.
Its needle roller design provides efficient torque transmission, with a capacity of 1.18 Nm.
The press-fit shaft mount simplifies installation, saving time and effort.
With a temperature range of -30° to 110°C, EWC0812A Bearing performs well in various environments.

Application

How Does EWC0812A Bearing Improve Performance?
EWC0812A Bearing is commonly used in industrial equipment like conveyor systems, where its one-way rotation feature ensures smooth and efficient operation. The steel construction provides durability, making it suitable for continuous use.
In automotive applications, EWC0812A Bearing works well in gearboxes and clutch mechanisms, offering reliable performance under load. Its press-fit design simplifies installation, saving time during assembly.
For automation and robotics, EWC0812A Bearing is a great fit for robotic arms and 3D printers, thanks to its precise needle roller design. The lubricated construction helps maintain performance over long periods.
In consumer electronics, EWC0812A Bearing can be found in printers and small appliances, where its compact size and efficiency are key. The lightweight design doesn’t compromise on strength.
