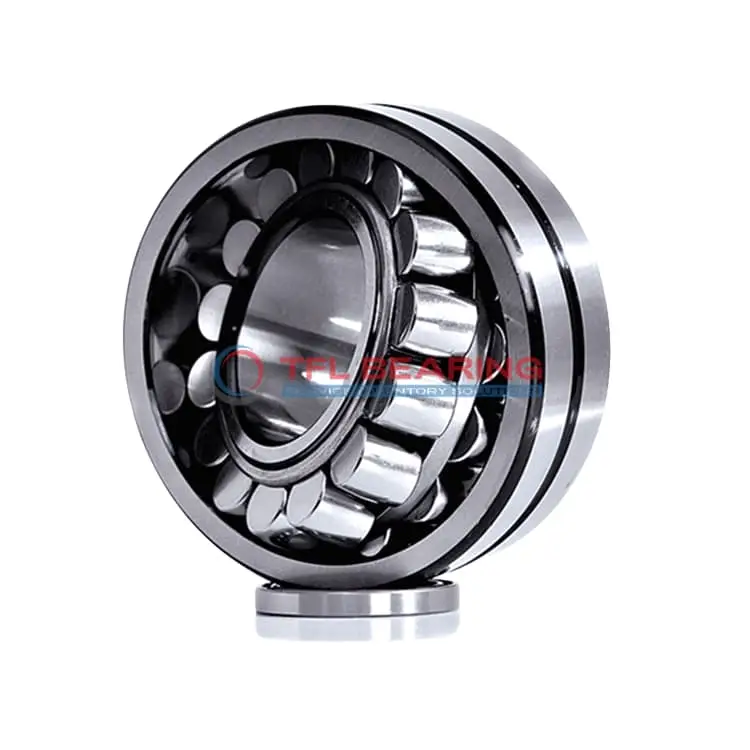

22210 CY Double Row Spherical Roller Bearing

22210 CY Double Row Spherical Roller Bearing

The 22210 CY is a double-row spherical roller bearing with a 50mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 24055 lbf and operates smoothly at speeds up to 9500 RPM.

Its brass cage enhances durability, while the open design allows for easy lubrication. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

With a spherical roller design, it accommodates misalignment, making it suitable for heavy-duty applications. Ideal for use in industrial machinery or gear systems where robust performance is needed.

Weighing 0.62kg, it offers a balance of strength and portability. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22210 CY
  • Brand TFL
  • Interchangeable SKF
  • Size 50 x 90 x 23 mm
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 23 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 60 mm
  • Shoulder/Recess Dia Of Outer Ring 79 mm
  • Width Of Lubrication Groove 5.5 mm
  • Diameter Of Lubrication Hole 3 mm
  • Chamfer Dimension min.1.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 24055 lbf
  • Static Radial Load 24279 lbf
  • Max Speed 9500 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 0.62 kg
  • Price （US$） 27.72

Features

Performance Features of 22210 CY Bearing

22210 CY Bearing is built with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 24055 lbf, ensuring steady performance in heavy-duty applications.

The brass cage maintains roller alignment, reducing friction and enhancing durability.
With a maximum speed of 9500 rpm, it delivers both reliability and efficiency.

22210 CY Bearing operates in temperatures from -30° to 200°C, suitable for varied environments.
Its double-row spherical design accommodates misalignment, ensuring smooth operation under stress.

The lubrication groove and hole design in 22210 CY Bearing simplify maintenance.
This feature helps extend service life while keeping operational costs low.

Application

Industrial Uses of 22210 CY Bearing
The 22210 CY Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads effortlessly. Its brass cage ensures smooth operation even in high-vibration environments.

Where Is 22210 CY Bearing Used?
You’ll often find 22210 CY Bearing in conveyor systems and industrial fans, thanks to its ability to manage misalignment and radial loads. The chrome steel construction adds durability for long-term use.

Built for Heavy-Duty Use: 22210 CY Bearing
22210 CY Bearing excels in mining equipment, where its spherical rollers adapt to shaft deflections. The lubrication groove makes maintenance straightforward, even in dusty conditions.

Automotive vs Aerospace: Applications of 22210 CY Bearing
In automotive gearboxes, 22210 CY Bearing provides reliable performance under high radial loads. For aerospace applications, its temperature range suits auxiliary power units and landing gear systems.

Perfect Fit for Automation: 22210 CY Bearing
22210 CY Bearing works well in robotic arms and assembly line machinery, where precision and load capacity matter. The open design allows for easy lubrication, reducing downtime.
