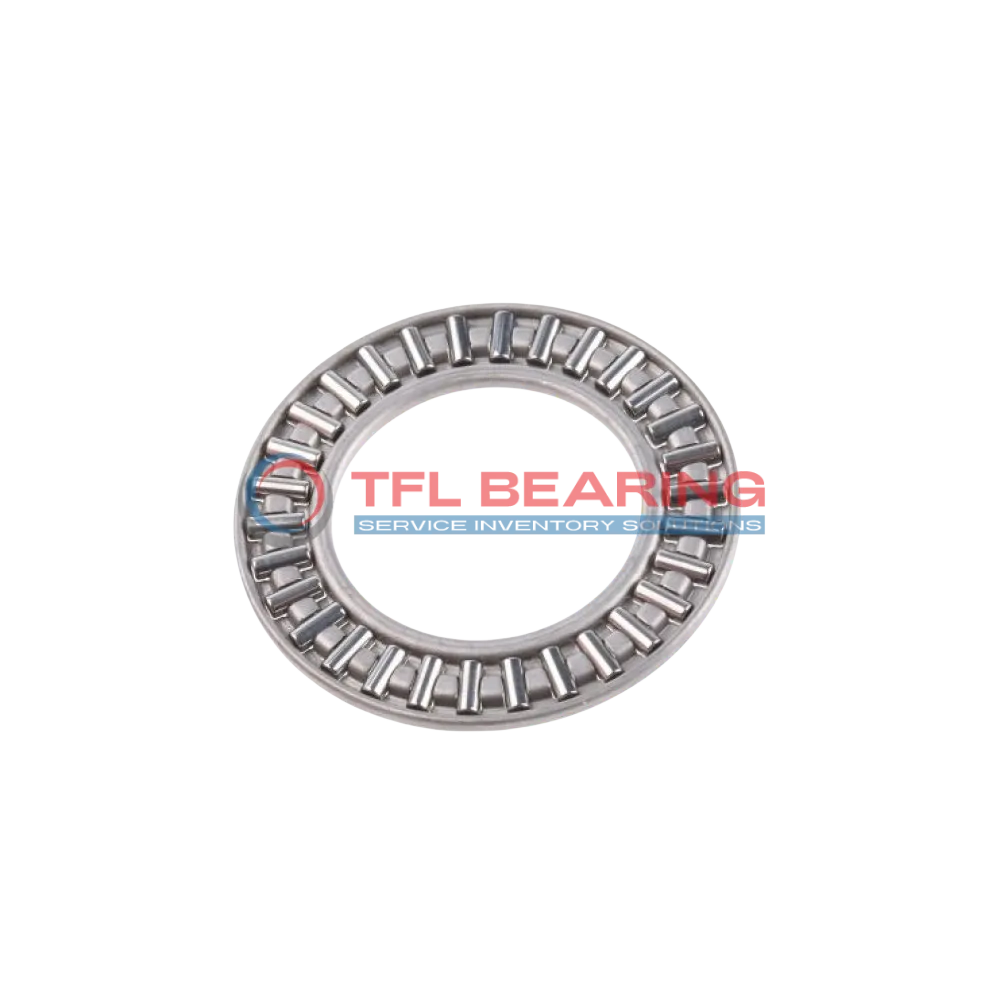

Needle Roller Thrust Bearings (Cages) AXW15

Needle Roller Thrust Bearings (Cages) AXW15

The AXW15 is a needle roller thrust bearing cage with a 15mm bore and 31mm outer diameter, crafted from sturdy steel. It manages thrust loads up to 2542 lbf and can reach speeds of 13200 RPM.
Its steel cage and needle rollers ensure durability, while the compact 3.2mm width makes it suitable for tight spaces. The bearing requires regular lubrication for optimal performance.
Designed for thrust loads, it operates well in temperatures from -30°C to 110°C. This model is interchangeable with INA bearings, offering a reliable replacement option.
Ideal for applications like automotive transmissions or small machinery where space is limited. Compliant with RoHS standards, it’s a practical choice for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number AXW15
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 15 mm
  • Outer Dia 31 mm
  • Width 3.2 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Type Cages
  • For Load Direction Thrust
  • Series AXW
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Thrust Load 2542 lbf
  • Static Thrust Load 8100 lbf
  • Max Speed 13200 rpm
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • Allocated Axial Bearing Washer AS1528
Needle Roller Thrust Bearings (Cages) AXW15 dimension drawing
Download DWG Download PDF

Features

Why Choose AXW15 Bearing for Precision Tasks?
AXW15 Bearing features a steel cage and needle rollers, designed to handle high thrust loads with precision.
Its dynamic thrust load capacity of 2542 lbf ensures reliable performance in demanding applications.
The compact design, with a width of just 3.2 mm, makes AXW15 Bearing ideal for space-constrained installations.
It operates smoothly at speeds up to 13,200 rpm, balancing efficiency and durability.
AXW15 Bearing works in temperatures from -30° to 110°C, adapting to various environmental conditions.
Regular lubrication ensures long service life and consistent performance.

Application

Key Fields for AXW15 Bearing
AXW15 Bearing is commonly used in compact industrial gearboxes, where its thin profile and high load capacity make it ideal for space-constrained designs. The steel cage ensures smooth needle roller movement, even under heavy thrust loads.
In automotive applications, AXW15 Bearing fits well in clutch release mechanisms and transmission systems. Its ability to handle high RPMs makes it a reliable choice for demanding drivetrain components.
For small robotics and automation systems, AXW15 Bearing’s low-friction design helps maintain precision in repetitive movements. The metric sizing allows easy integration into European and Asian machinery designs.
Medical device manufacturers often choose AXW15 Bearing for portable equipment due to its compact dimensions. The steel construction provides durability while meeting strict hygiene requirements through easy cleaning.
Home appliances like washing machines benefit from AXW15 Bearing’s quiet operation in rotating components. Its balanced performance at various speeds ensures long service life in daily use scenarios.
