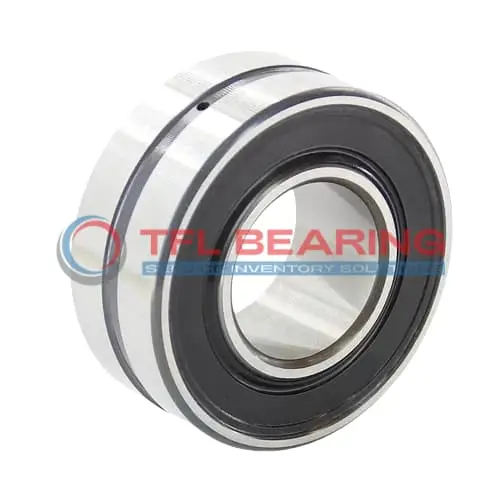

BS2-2207-2CS/VT143 Double Row Spherical Roller Bearing

BS2-2207-2CS/VT143 Double Row Spherical Roller Bearing

The BS2-2207-2CS/VT143 is a double-row spherical roller bearing with a 35mm bore and 72mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 19963 lbf and runs smoothly at speeds up to 4400 RPM.

Its double-seal design keeps contaminants out while maintaining lubrication, and the steel cage ensures durability. The bearing operates well in temperatures from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial gearboxes or conveyor systems where combined loads are common.

Weighing 0.52kg, it offers a robust yet manageable size. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BS2-2207-2CS/VT143
  • Brand TFL
  • Interchangeable SKF
  • Size 35 x 72 x 28 mm
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 28 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 42.4 mm
  • Shoulder/Recess Dia Of Outer Ring 65.3 mm
  • Width Of Lubrication Groove 4.4 mm
  • Diameter Of Lubrication Hole 2 mm
  • Chamfer Dimension min.1.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Double Seal
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 19963 lbf
  • Static Radial Load 19109 lbf
  • Max Speed 4400 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 0.52 kg

Features

Performance Features of BS2-2207-2CS/VT143 Bearing

BS2-2207-2CS/VT143 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 19963 lbf, ensuring reliable performance in demanding conditions.

The double seal design protects BS2-2207-2CS/VT143 Bearing from dust and moisture, extending its service life.
With a maximum speed of 4400 rpm, it balances durability and efficiency for various applications.

BS2-2207-2CS/VT143 Bearing operates in temperatures from -30° to 200°C, making it suitable for extreme environments.
The steel cage maintains roller alignment, reducing wear and ensuring smooth operation.

Lubrication grooves in BS2-2207-2CS/VT143 Bearing ensure consistent performance, even under heavy loads.
Its compact design and precise tolerances make it easy to install and maintain.

Application

Industrial Uses of BS2-2207-2CS/VT143 Bearing
BS2-2207-2CS/VT143 Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its double-row design handles combined loads efficiently. The double seals help keep contaminants out, extending its lifespan in dusty environments.

What Makes BS2-2207-2CS/VT143 Bearing a Preferred Choice?
In automotive applications, BS2-2207-2CS/VT143 Bearing works well in gearboxes and drivetrains, thanks to its high radial load capacity. The chrome steel construction ensures durability even under constant stress.

Built for Heavy-Duty Use: BS2-2207-2CS/VT143 Bearing
For automation equipment, BS2-2207-2CS/VT143 Bearing provides reliable performance in robotic arms and assembly lines. Its spherical roller design accommodates slight misalignments, reducing wear over time.

Medical vs Industrial: Where BS2-2207-2CS/VT143 Bearing Excels
While not typically used in medical devices, BS2-2207-2CS/VT143 Bearing shines in industrial settings like pumps and compressors. The wide temperature range makes it suitable for varied operating conditions.
