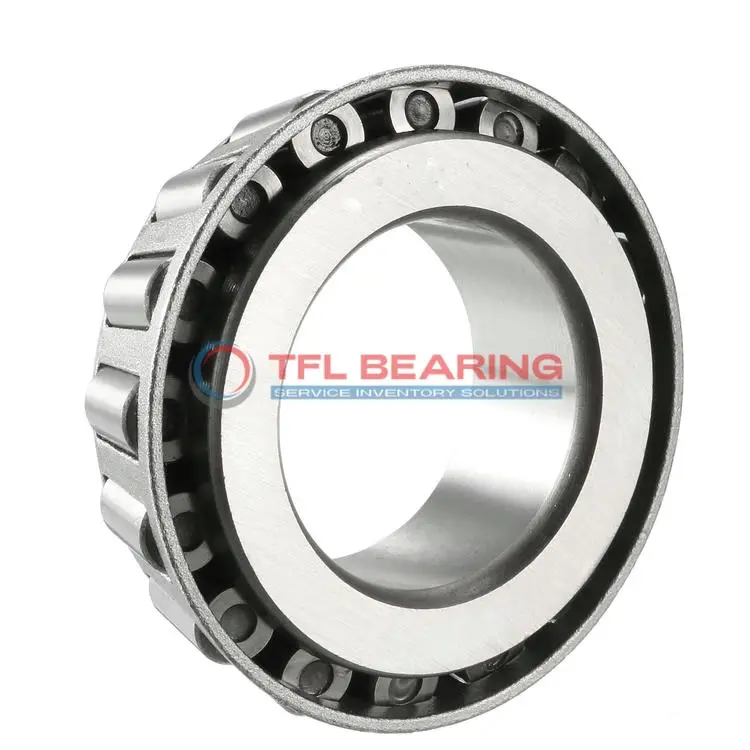

315 Single Cones (Imperial)

315 Single Cones (Imperial)

The 315 single cones are tapered roller bearings with a 1-inch bore, designed for combined loads. Made from durable chrome steel, they handle dynamic radial loads up to 16800 lbf and work in temperatures from -30°C to 110°C.

Their open design allows easy maintenance, while the steel cage ensures reliable performance. The bearings come with standard radial clearance, but options like C3, C4, or C5 are available for specific needs.

These cones are interchangeable with Timken models, making them a practical choice for replacements. Ideal for applications like wheel hubs or industrial gearboxes where combined loads are common.

With an ABEC-1 rating, they offer good precision for general use. Compliant with RoHS and REACH standards, they are safe for various environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 315
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number 315-312 , 315-313
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 1"
  • Bore Dia Tolerance +0.005" to 0
  • Cone Width 0.873"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 1.3"
  • Cone Backface Backing Diameter 1.32"
  • Cage Cone Frontface Clearance 0.04"
  • Cage Cone Backface Clearance 0.01"
  • Effective Center Location -0.27"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 16800 lbf
  • Static Radial Load 16800 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 4370 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 29300 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 1880 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 7600 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

Why Choose 315 Bearing for Precision Tasks?

315 Bearing is crafted with chrome steel rings, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 16,800 lbf, ensuring reliable performance in various applications.

The steel cage maintains roller alignment, reducing wear and extending service life.
With a temperature range of -30° to 110°C, it performs well in diverse environments.

315 Bearing’s standard radial clearance options provide flexibility for different operational needs.
Its tapered roller design ensures smooth operation under both radial and thrust loads.

Application

Industrial Uses of 315 Single Cones
315 Single Cones are commonly used in heavy machinery like construction equipment and agricultural gear, where their tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability even in demanding environments.

What Makes 315 Single Cones a Preferred Choice?
In automotive applications, 315 Single Cones work well in wheel hubs and transmissions, offering reliable performance under radial and thrust loads. Their inch sizing makes them compatible with many North American vehicle models.

Built for Heavy-Duty Use: 315 Single Cones
For industrial conveyor systems, 315 Single Cones provide smooth operation and long service life due to their robust steel cage. The standard radial clearance allows for easy integration into various setups.

Automotive vs Aerospace: Applications of 315 Single Cones
While 315 Single Cones are popular in truck axles and drivetrains, they also suit aerospace ground support equipment. Their ABEC-1 rating balances precision and cost-effectiveness for diverse needs.

Key Fields for 315 Single Cones
In mining equipment, 315 Single Cones withstand high loads and harsh conditions, thanks to their chrome steel rings. The open seal design simplifies maintenance in dusty or wet environments.
