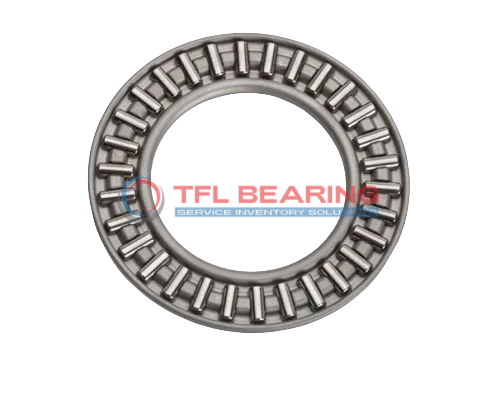

Needle Roller Thrust Bearings (Cages) AXK75100

Needle Roller Thrust Bearings (Cages) AXK75100

The AXK75100 is a needle roller thrust bearing with a 75mm bore and 100mm outer diameter, designed for high thrust loads. Its compact 4mm width makes it suitable for tight spaces, while the steel cage and needles ensure durability.

This bearing handles dynamic thrust loads up to 12375 lbf and static loads up to 59625 lbf, with a maximum speed of 3300 RPM. Regular lubrication is needed to maintain smooth operation.

Its simple cage design allows easy installation and maintenance. The bearing operates reliably in temperatures from -30°C to 110°C, making it versatile for various environments.

Ideal for applications like gearboxes or heavy machinery where space is limited but high thrust capacity is required. Compliant with RoHS standards, it’s a practical choice for replacements, especially as it’s interchangeable with INA models.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number AXK75100
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 75 mm
  • Bore Dia Tolerance 0.06mm to 0.250mm
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.520mm to -0.170mm
  • Width 4 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Type Cages
  • For Load Direction Thrust
  • Series AXK&TC
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Thrust Load 12375 lbf
  • Static Thrust Load 59625 lbf
  • Max Speed 3300 rpm
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • Allocated Axial Bearing Washer AS75100
Needle Roller Thrust Bearings (Cages) AXK75100 dimension drawing
Download DWG Download PDF

Features

How Does AXK75100 Bearing Handle Heavy Loads?
AXK75100 Bearing is built with steel cages and needles, offering strong resistance to high thrust loads.
Its dynamic thrust load capacity reaches 12375 lbf, making it suitable for demanding industrial applications.
The steel construction ensures durability and reliable performance under heavy stress.
With a maximum speed of 3300 rpm, it balances load capacity and operational efficiency.

Application

Industrial Uses of AXK75100 Bearing
AXK75100 Bearing is commonly used in heavy machinery, such as construction equipment and hydraulic pumps, where its high thrust load capacity handles demanding axial forces. The steel cage and needle rollers ensure durability even in rugged conditions.
Where Is AXK75100 Bearing Used?
In automotive applications, AXK75100 Bearing fits well in gearboxes and clutch assemblies, providing smooth operation under high-speed rotations. Its metric sizing makes it a versatile choice for various vehicle designs.
Perfect Fit for Automation: AXK75100 Bearing
AXK75100 Bearing works efficiently in robotic arms and automated assembly lines, where precise axial load management is essential. The steel construction offers reliable performance in continuous operation.
Medical vs Industrial: Where AXK75100 Bearing Excels
While AXK75100 Bearing is robust enough for industrial presses, its precision also suits medical devices like diagnostic equipment. The ABEC-1 rating ensures consistent performance in critical applications.
Light-Duty vs Heavy-Duty: Best Uses for AXK75100 Bearing
AXK75100 Bearing excels in both light-duty conveyor systems and heavy-duty machinery, thanks to its balanced load capacity. The required lubrication ensures long service life across different environments.
