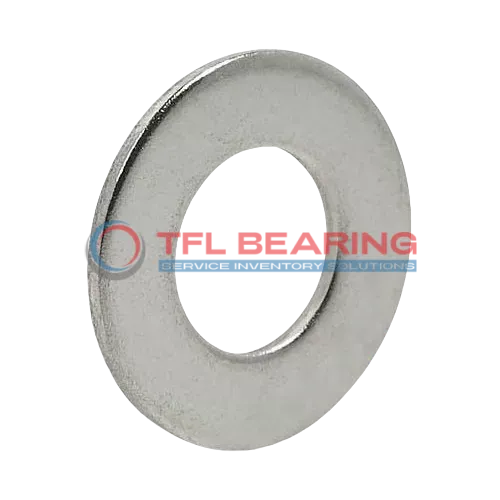

Needle Roller Thrust Bearing Washers LS150190

Needle Roller Thrust Bearing Washers LS150190

The LS150190 needle roller thrust bearing washers feature a 150mm bore and 190mm outer diameter, crafted from resilient spring steel. They’re designed to handle high thrust loads with a compact width of just 9.5mm.
These washers operate smoothly in temperatures ranging from -30°C to 110°C, making them suitable for varied environments. Their spring steel construction ensures durability and consistent performance under pressure.
Interchangeable with INA models, they offer a practical solution for replacements or upgrades. Ideal for applications like gear systems or heavy machinery where space is limited but performance is key.
Weighing 796g, they strike a balance between strength and manageability. Compliant with RoHS standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number LS150190
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 150 mm
  • Bore Dia Tolerance 0.085mm to 0.485mm
  • Outer Dia 190 mm
  • Outer Dia Tolerance -0.820mm to -0.1mm
  • Width 9.5 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Type Washers
  • Material Spring Steel
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Weight 796 g

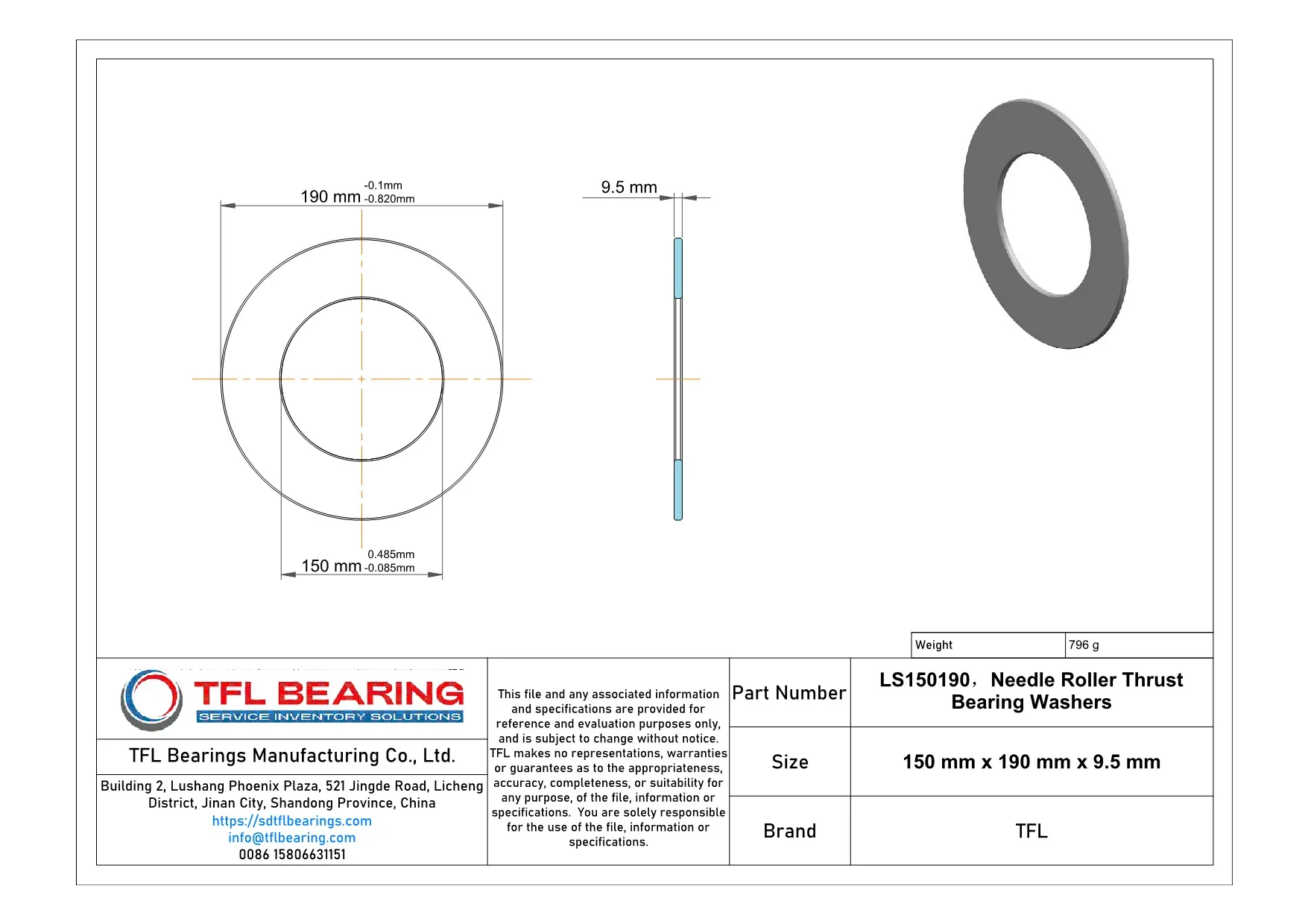

Needle Roller Thrust Bearing Washers LS150190 dimension drawing
Download DWG Download PDF

Features

Why Choose LS150190 Bearing for Precision Tasks?
LS150190 Bearing is crafted from spring steel, offering excellent durability and resistance to wear.
Its precise dimensions, with a bore diameter of 150 mm and outer diameter of 190 mm, ensure accurate performance.
The needle roller design provides smooth operation, even under high thrust loads.
With a temperature range of -30° to 110 °C, it performs reliably in various conditions.

Application

Industrial Uses of LS150190 Bearing
LS150190 Bearing is commonly used in heavy machinery, such as construction equipment and hydraulic pumps, where its needle roller design handles high axial loads efficiently. The spring steel material ensures durability even in demanding industrial environments.
Where Is LS150190 Bearing Used?
You’ll often find LS150190 Bearing in automotive transmissions, where its precise tolerances and robust construction help manage thrust loads smoothly. Its metric sizing makes it a reliable fit for various European and Asian vehicle models.
Built for Heavy-Duty Use: LS150190 Bearing
LS150190 Bearing excels in applications like conveyor systems, where its wide outer diameter and spring steel washers provide stability under constant pressure. The open design allows for easy lubrication, extending its service life.
Medical vs Industrial: Where LS150190 Bearing Excels
In medical devices, LS150190 Bearing’s precision and reliability make it suitable for imaging equipment, ensuring consistent performance. Meanwhile, in industrial settings, it handles heavy loads in machinery like presses and gearboxes.
Automotive vs Aerospace: Applications of LS150190 Bearing
LS150190 Bearing is a go-to choice for automotive gearboxes, offering smooth operation under high thrust loads. In aerospace, its lightweight yet durable design supports auxiliary systems where precision is key.
