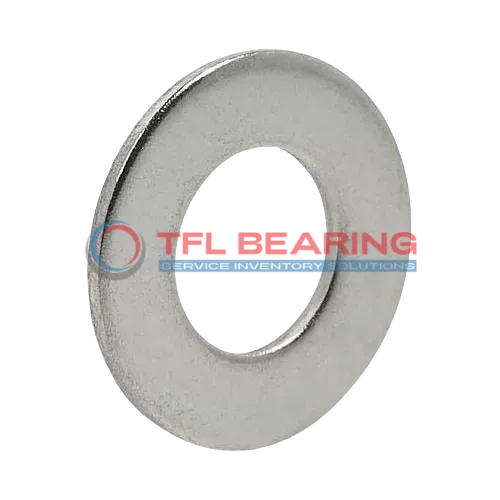

Needle Roller Thrust Bearing Washers LS110145

Needle Roller Thrust Bearing Washers LS110145

The LS110145 needle roller thrust bearing washers feature a 110mm bore and 145mm outer diameter, crafted from resilient spring steel. They measure just 7mm in width, offering a compact yet sturdy solution for thrust applications.
Designed to withstand temperatures from -30°C to 110°C, these washers ensure reliable performance in varying conditions. Their precise tolerances allow for smooth operation and easy integration with compatible systems.
Interchangeable with INA models, they provide a versatile option for replacements or upgrades. Ideal for use in gearboxes, automotive components, or industrial machinery where space is limited but durability is key.
Weighing 385g, they strike a balance between strength and manageable size. RoHS compliance guarantees they meet environmental and safety standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number LS110145
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 110 mm
  • Bore Dia Tolerance 0.072mm to 0.422mm
  • Outer Dia 145 mm
  • Outer Dia Tolerance -0.715mm to -0.085mm
  • Width 7 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Type Washers
  • Material Spring Steel
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Weight 385 g

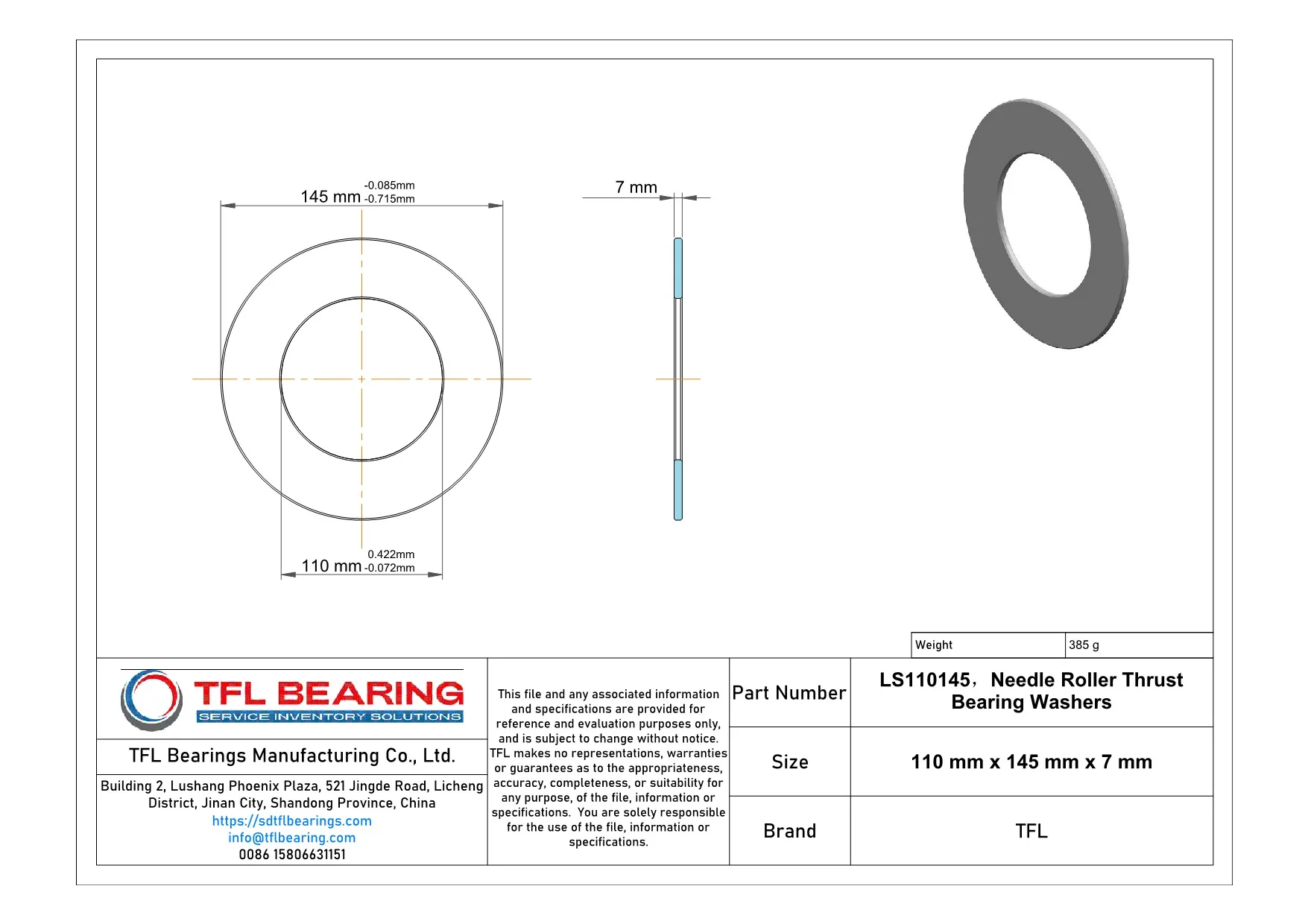

Needle Roller Thrust Bearing Washers LS110145 dimension drawing
Download DWG Download PDF

Features

How Is LS110145 Bearing Engineered for Reliability?
LS110145 Bearing is crafted from high-quality spring steel, ensuring durability and resistance to wear.
Its precise dimensions, with a bore diameter of 110 mm and outer diameter of 145 mm, provide a reliable fit for various applications.
The needle roller design enhances load distribution, improving performance under thrust loads.
With a temperature range of -30° to 110°C, it performs consistently in diverse environments.
LS110145 Bearing’s compliance with RoHS standards ensures it meets environmental and safety requirements.
Its lightweight design at 385 g makes it easy to handle without compromising strength.

Application

Industrial Uses of LS110145 Bearing
LS110145 Bearing is commonly used in heavy machinery, such as construction equipment and hydraulic pumps, where its needle roller design handles high axial loads efficiently. The spring steel material ensures durability even in demanding environments.
Where Is LS110145 Bearing Used?
You’ll often find LS110145 Bearing in automotive transmissions, where its compact size and high load capacity make it ideal for tight spaces. The metric dimensions ensure compatibility with a variety of vehicle designs.
Perfect Fit for Automation: LS110145 Bearing
In automated production lines, LS110145 Bearing supports linear motion systems, providing smooth operation with minimal maintenance. Its precise tolerances help maintain accuracy in repetitive tasks.
Medical vs Industrial: Where LS110145 Bearing Excels
While LS110145 Bearing isn’t typically used in medical devices, it shines in industrial settings like packaging machines, where reliability and load capacity are key. The spring steel construction resists wear over time.
Essential Roles of LS110145 Bearing
LS110145 Bearing plays a crucial role in agricultural machinery, such as harvesters, where its ability to handle heavy loads ensures consistent performance. The wide temperature range makes it suitable for outdoor use.
