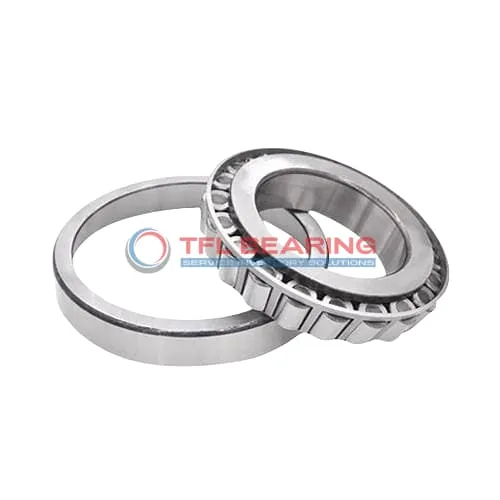

TS (Single Row Tapered Roller Bearings) (Imperial) 462-453A

TS (Single Row Tapered Roller Bearings) (Imperial) 462-453A

The 462-453A is a single-row tapered roller bearing with a 2.25″ bore and 4.25″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 36100 lbf radially and 5380 lbf in thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for heavy-duty machinery or automotive systems where combined loads are common.

Weighing 2.4 lb, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 462-453A
  • Brand TFL
  • Interchangeable Timken
  • Size 2.25" x 4.25" x 1.0938"
  • Bore Dia 2.25"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.25"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.1542"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.875"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.0938"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.09"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 2.48"
  • Cone Backface Backing Diameter 2.64"
  • Cup Frontface Backing Diameter 3.96"
  • Cup Backface Backing Diameter 3.82"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.07"
  • Effective Center Location -0.28"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 462
  • Cup Part Number 453A
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 455
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 36100 lbf
  • Static Radial Load 37200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 9370 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5380 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.4 lb

Features

How Is 462-453A Bearing Engineered for Reliability?

462-453A Bearing features chrome steel rings and rollers, providing strong resistance to combined loads.
Its dynamic radial load capacity reaches 36,100 lbf, ensuring dependable performance in various applications.

The steel cage maintains roller alignment, reducing friction and wear for extended service life.
With a temperature range of -30° to 110°C, it performs reliably in diverse operating conditions.

462-453A Bearing’s standard radial clearance offers flexibility for different installation needs.
Its ABEC-1 rating ensures consistent precision and smooth operation under load.

Application

Industrial Uses of 462-453A Bearing
The 462-453A Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability even in demanding environments.

Where Is 462-453A Bearing Used?
You’ll often find 462-453A Bearing in automotive applications, particularly in wheel hubs and differential systems. Its inch sizing makes it a reliable choice for older or custom-built vehicles.

Built for Heavy-Duty Use: 462-453A Bearing
This bearing excels in industrial fans and pumps, thanks to its robust steel cage and standard radial clearance. The open design simplifies lubrication, extending service life in high-load scenarios.

Automotive vs Aerospace: Applications of 462-453A Bearing
In automotive systems, 462-453A Bearing supports axles and transmissions, while its precision makes it suitable for certain aerospace components. The ABEC-1 rating ensures consistent performance across both fields.

Perfect Fit for Automation: 462-453A Bearing
462-453A Bearing works well in conveyor systems and robotic arms, where its tapered rollers manage radial and thrust loads smoothly. The steel cage adds stability for continuous operation.
