Needle Roller Thrust Bearing Washers AS80105

Needle Roller Thrust Bearing Washers AS80105

The AS80105 needle roller thrust bearing washers are slim, measuring just 1mm in width, with an 80mm bore and 105mm outer diameter. Made from spring steel, they offer reliable strength and durability.
These washers handle high thrust loads efficiently and work well in temperatures from -30°C to 110°C. Their precise tolerances ensure a snug fit and smooth operation.
The lightweight design, at only 28g, makes them easy to handle and install. They are interchangeable with INA models, simplifying replacements.
Ideal for compact spaces in machinery or automotive applications where thin, sturdy washers are needed. RoHS compliant for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number AS80105
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 80 mm
  • Bore Dia Tolerance 0.06mm to 0.360mm
  • Outer Dia 105 mm
  • Outer Dia Tolerance -0.612mm to -0.072mm
  • Width 1 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Type Washers
  • Material Spring Steel
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Weight 28 g

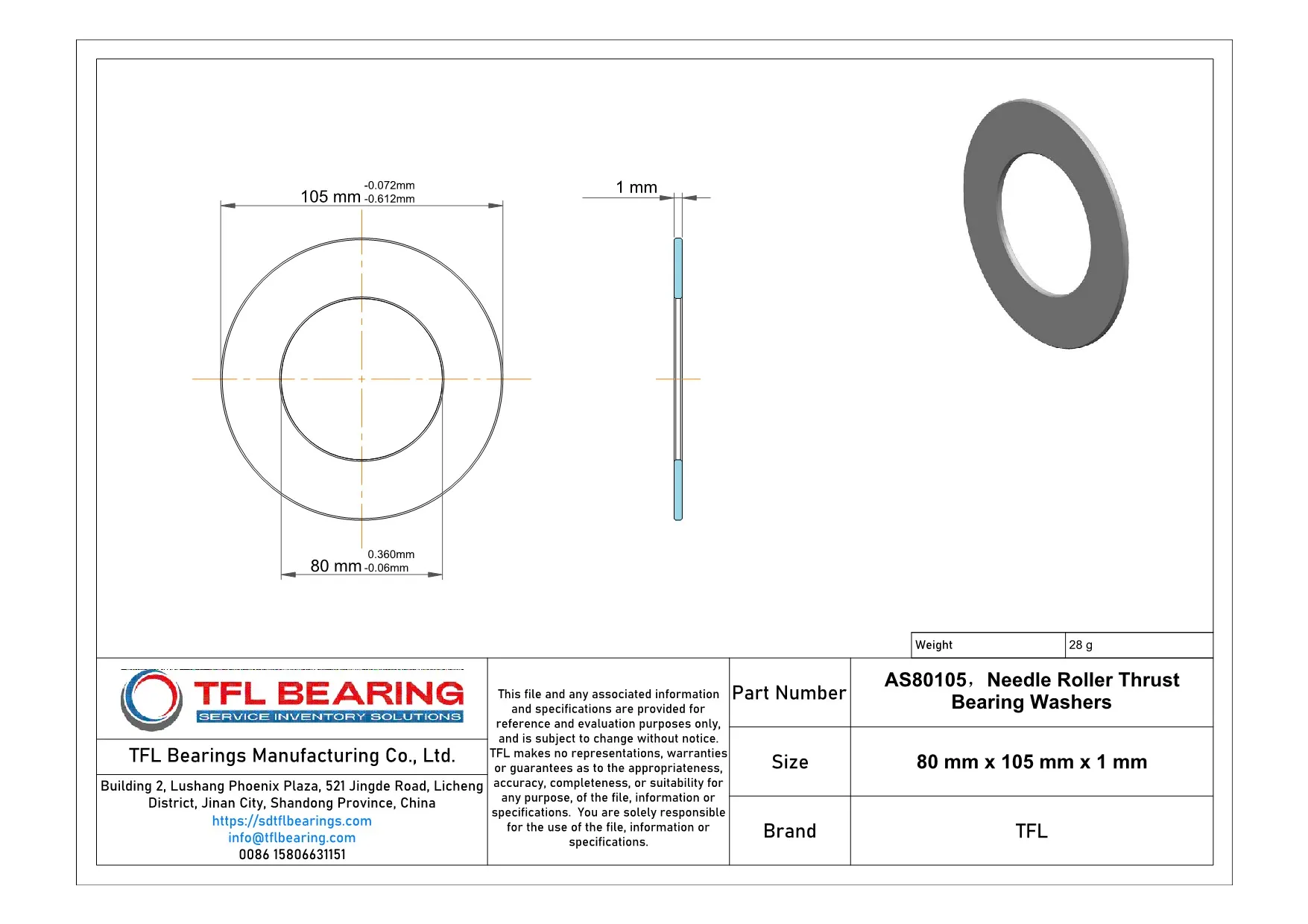

Needle Roller Thrust Bearing Washers AS80105 dimension drawing
Download DWG Download PDF

Features

Why Choose AS80105 Bearing for Precision Tasks?
AS80105 Bearing is crafted from spring steel, offering durability and resilience in precision applications.
Its narrow 1 mm width ensures a compact fit, ideal for space-constrained assemblies.
The needle roller design provides smooth operation, even under high-load conditions.
With a temperature range of -30° to 110 °C, AS80105 Bearing performs reliably in varied environments.
Its interchangeable design with INA bearings simplifies replacements and upgrades.
The precise bore and outer diameter tolerances ensure consistent performance and easy installation.

Application

Industrial Uses of AS80105 Bearing
AS80105 Bearing is commonly used in industrial gearboxes, where its thin profile and high load capacity make it ideal for compact designs. The spring steel material ensures durability even in demanding environments.
Where Is AS80105 Bearing Used?
You’ll often find AS80105 Bearing in automotive transmissions, where it handles axial loads efficiently. Its precise tolerances and metric sizing make it a reliable choice for European and Asian vehicle models.
Built for Heavy-Duty Use: AS80105 Bearing
AS80105 Bearing works well in construction equipment, supporting heavy axial loads without compromising space. The needle roller design provides smooth operation under high stress.
Medical vs Industrial: Where AS80105 Bearing Excels
In medical devices, AS80105 Bearing offers quiet performance for precision instruments. Meanwhile, in industrial settings, it’s valued for its robustness in machinery like conveyor systems.
Automotive vs Aerospace: Applications of AS80105 Bearing
AS80105 Bearing fits seamlessly into car steering systems, ensuring smooth movement. While not typically used in aerospace, its reliability makes it a go-to for ground vehicle applications.
