Heavy Duty Needle Roller Bearings (Machined) NCS1416

Heavy Duty Needle Roller Bearings (Machined) NCS1416

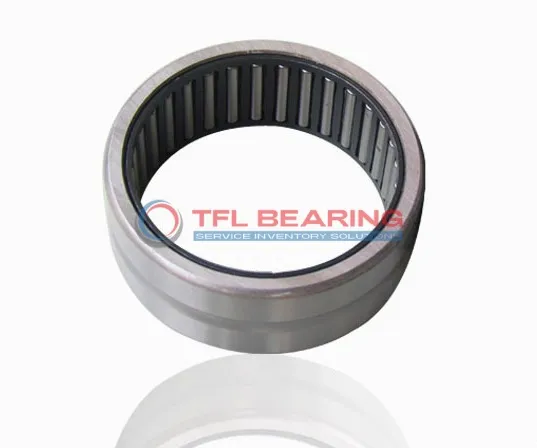

The NCS1416 is a heavy-duty needle roller bearing with a 0.875″ bore and 1.375″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 6638 lbf and spins smoothly at speeds up to 18700 RPM.
Its open design requires regular lubrication, while the press-fit mounting ensures a secure fit on shafts. The bearing operates well in temperatures from -20°C to 110°C, making it versatile for various conditions.
This model is interchangeable with INA bearings, offering a practical replacement option. Ideal for applications like automotive transmissions or industrial equipment where high radial loads are common.
Weighing just 82g, it’s lightweight yet robust for its size. Compliant with RoHS standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NCS1416
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Inner Ring No
  • Series Without Inner Ring
  • Bore Dia 0.875"
  • Bore Dia Tolerance 0.023mm to 0.046mm
  • Outer Dia 1.375"
  • Outer Dia Tolerance -0.013mm to 0
  • Width 1"
  • Width Tolerance -0.13mm to 0
  • Ring Material Steel
  • Cage Material Steel
  • Roller Material Steel
  • Dynamic Radial Load 6638 lbf
  • Static Radial Load 8550 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 18700 rpm
  • Weight 82 g

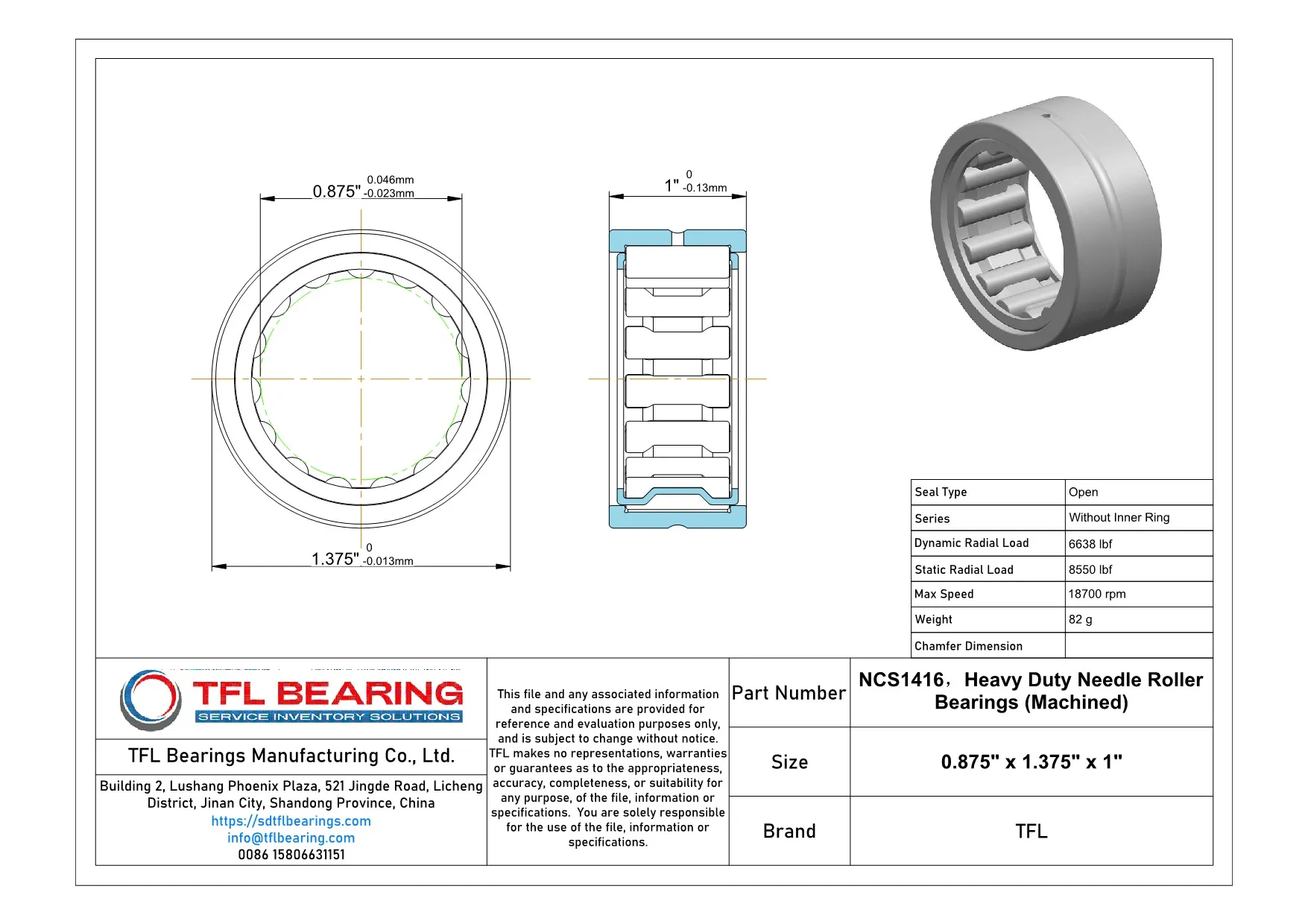

Heavy Duty Needle Roller Bearings (Machined) NCS1416 dimension drawing
Download DWG Download PDF

Features

Why Choose NCS1416 Bearing for Precision Tasks?
NCS1416 Bearing is built with high-quality steel rollers and cage, offering excellent radial load capacity.
Its dynamic radial load rating of 6638 lbf ensures reliable performance in heavy-duty applications.
The open design allows for easy lubrication, maintaining smooth operation under high speeds.
With a maximum speed of 18,700 rpm, NCS1416 Bearing is suitable for demanding industrial uses.
Its press-fit shaft mount type simplifies installation, reducing downtime and maintenance efforts.
The temperature range of -20 to 110°C ensures consistent performance in various environments.

Application

Industrial Uses of NCS1416 Bearing
NCS1416 Bearing is commonly used in heavy machinery like construction equipment and agricultural tools, where its robust needle roller design handles high radial loads efficiently. The open seal type allows for easy lubrication, extending its lifespan in demanding conditions.
What Makes NCS1416 Bearing a Preferred Choice?
In automotive applications, NCS1416 Bearing fits well in gearboxes and drivetrains, providing reliable performance under constant stress. Its press-fit mounting ensures a secure attachment, reducing the risk of slippage during operation.
Built for Heavy-Duty Use: NCS1416 Bearing
For industrial automation, NCS1416 Bearing’s steel construction makes it suitable for conveyor systems and robotic arms. The high max speed of 18,700 rpm ensures it can keep up with fast-paced production lines.
Automotive vs Industrial: Applications of NCS1416 Bearing
In automotive settings, NCS1416 Bearing excels in transmissions, while in industrial environments, it’s ideal for pumps and compressors. Its inch sizing makes it versatile for various machinery standards.
Where Is NCS1416 Bearing Used?
You’ll often find NCS1416 Bearing in power tools and small engines, where its compact size and high load capacity are advantageous. The steel rollers provide durability, even in high-speed applications.
