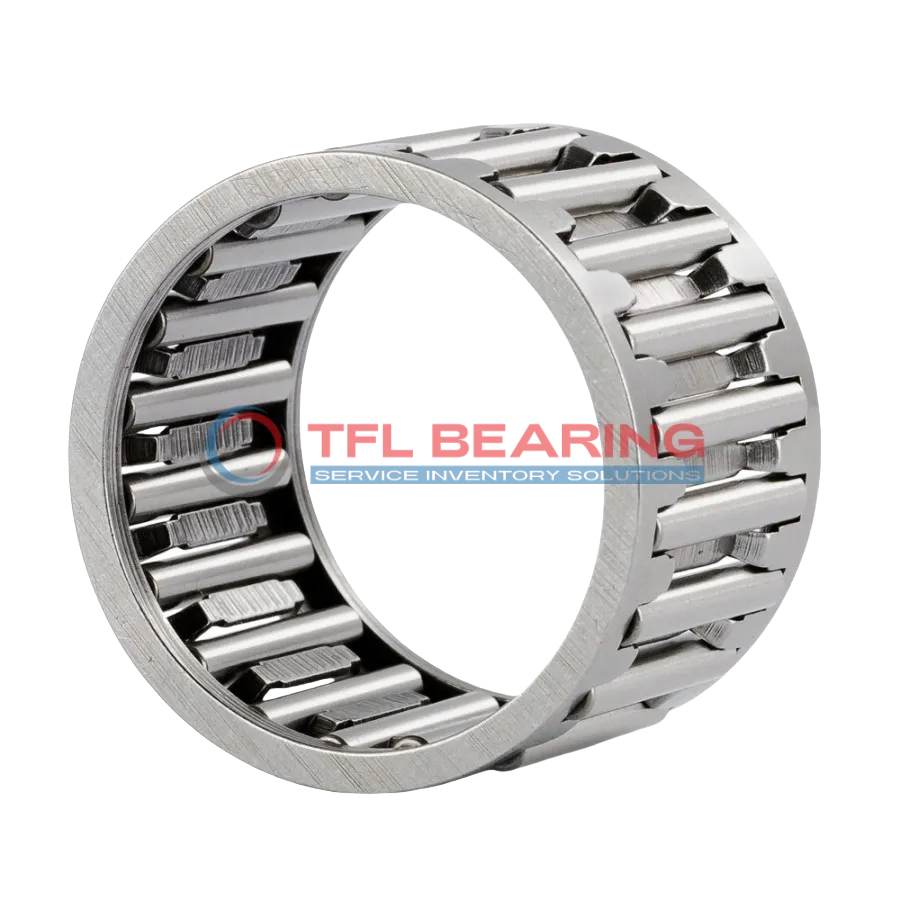

Needle Roller And Cage Assemblies K18X22X13

Needle Roller And Cage Assemblies K18X22X13

The K18X22X13 is a compact needle roller and cage assembly with an 18mm bore and 22mm outer diameter, crafted from sturdy steel. It handles radial loads up to 2070 lbf and spins smoothly at speeds up to 22400 RPM.
Its single-row design and steel cage ensure reliable performance in tight spaces. The lightweight construction, at just 8 grams, makes it easy to handle and install.
This assembly is interchangeable with INA bearings, offering a practical replacement option. Suitable for applications like gearboxes, pumps, or small machinery where space is limited.
Operating in temperatures from -30°C to 110°C, it’s a versatile choice for various industrial settings. RoHS compliant for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K18X22X13
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 18 mm
  • Outer Dia 22 mm
  • Width 13 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Series K Series
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Radial Load 2070 lbf
  • Static Radial Load 2858 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 22400 rpm
  • Weight 8 g
Needle Roller And Cage Assemblies K18X22X13 dimension drawing
Download DWG Download PDF

Features

How Does K18X22X13 Bearing Achieve High-Speed Performance?
K18X22X13 Bearing features a steel cage and needles, ensuring durability and smooth operation at high speeds.
With a maximum speed of 22,400 rpm, it is well-suited for applications requiring rapid rotation.
The dynamic radial load capacity of 2070 lbf allows K18X22X13 Bearing to handle demanding conditions reliably.
Its compact design, with a width of just 13 mm, makes it ideal for space-constrained installations.
K18X22X13 Bearing operates efficiently within a temperature range of -30° to 110°C, adapting to various environments.
The steel construction provides strength while keeping the weight low at just 8 grams.

Application

Key Fields for K18X22X13 Bearing
K18X22X13 Bearing is commonly used in compact industrial gearboxes, where its needle roller design efficiently handles high radial loads in tight spaces. The steel construction ensures durability even in demanding environments.
In automotive applications, K18X22X13 Bearing fits well in transmission systems and small electric motors, thanks to its lightweight and high-speed capabilities. Its metric sizing makes it a versatile choice for various vehicle models.
For automation equipment, K18X22X13 Bearing works smoothly in robotic joints and precision mechanisms. The single-row design provides reliable performance while maintaining a low profile.
In consumer electronics, K18X22X13 Bearing can be found in small appliances like printers and power tools. Its high-speed tolerance and minimal weight make it ideal for these everyday devices.
