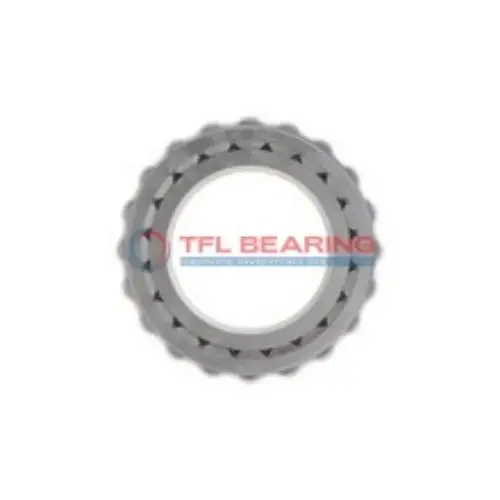

36137 Single Cones (Imperial)

36137 Single Cones (Imperial)

The 36137 is a single-row tapered roller bearing cone with a 1.375″ bore, designed for combined loads. Made from durable chrome steel, it handles dynamic radial loads up to 22500 lbf and operates smoothly in temperatures from -30°C to 110°C.

Its open design allows easy maintenance, while the steel cage ensures reliable performance. The cone features standard radial clearance, with options for C3, C4, or C5 clearances if needed.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for applications like heavy machinery or automotive systems where combined loads are common.

With an ABEC-1 rating, it offers good precision for general industrial use. Compliant with RoHS and REACH standards for safe and eco-friendly operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 36137
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number 36137-36300
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series 36137
  • Bore Dia 1.375"
  • Bore Dia Tolerance +0.005" to 0
  • Cone Width 1.175"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 1.67"
  • Cone Backface Backing Diameter 1.77"
  • Cage Cone Frontface Clearance 0.05"
  • Cage Cone Backface Clearance 0.03"
  • Effective Center Location -0.36"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 22500 lbf
  • Static Radial Load 24900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 5820 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 39100 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3490 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 10100 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

Why Choose 36137 Single Cones for Combined Loads?

36137 Single Cones are crafted from chrome steel, offering strong resistance to both radial and thrust loads.
Their dynamic radial load capacity reaches 22,500 lbf, making them reliable for heavy-duty applications.

The tapered roller design ensures smooth operation under combined loads, reducing friction and wear.
With a temperature range of -30° to 110°C, they perform well in various environmental conditions.

36137 Single Cones feature a steel cage, keeping rollers aligned for extended service life.
Their standard radial clearance options provide flexibility for different operational needs.

Application

Industrial Uses of 36137 Bearing
36137 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in tough working conditions.

Where Is 36137 Bearing Used?
You’ll often find 36137 Bearing in automotive applications like wheel hubs and differential systems, thanks to its reliable performance under radial and thrust loads. Its inch sizing makes it a good fit for American-made vehicles.

Built for Heavy-Duty Use: 36137 Bearing
36137 Bearing excels in industrial settings like conveyor systems and mining equipment, where its open design allows for easy lubrication. The steel cage adds stability, even in high-vibration environments.

Automotive vs Aerospace: Applications of 36137 Bearing
In automotive systems, 36137 Bearing supports heavy loads in axles and transmissions, while its precision makes it suitable for aerospace landing gear components. The ABEC-1 rating ensures consistent performance across both fields.

Essential Roles of 36137 Bearing
36137 Bearing is a go-to choice for wind turbine gearboxes, where its tapered rollers manage varying load directions. The standard radial clearance options provide flexibility for different operational needs.
